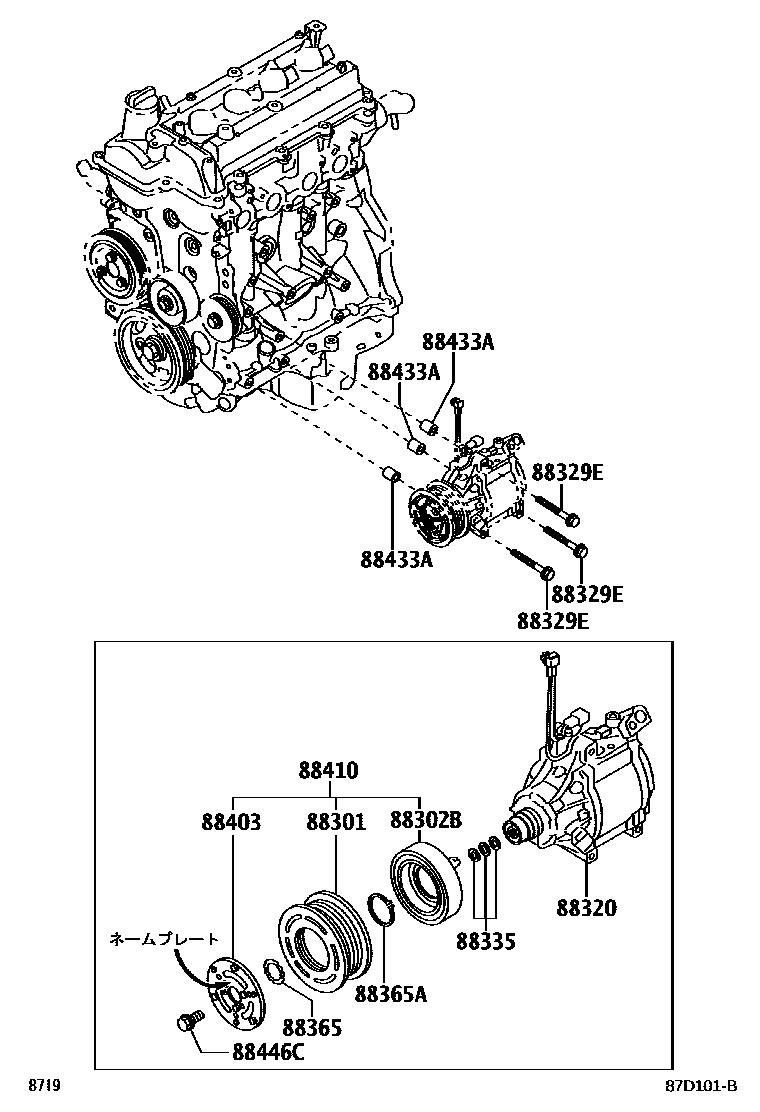

HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B1010iQNC25200809-201409

main88412-B1020iQNC21200601-200809

88302BSTATOR, MAGNET CLUTCH

main88411-B1010iQNC25200809-201409

88320COMPRESSOR ASSY, COOLER

main88320-B1010iQNC25200809-201409

88329EBOLT, COMPRESSOR, NO.1

main88329-B1030×3iQNC2#200601-200809

88335GASKET KIT, OVERHAUL

main88318-87704iQNC2#200601-200809

main88318-87705iQNC2#200601-200809

main88318-87706iQNC20,21200809

88365RING, SNAP

main90099-07125iQNC2#200601-200809

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201iQNC2#200601-200809

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-B1010iQNC25200809-201409

88410CLUTCH ASSY, MAGNET

main88410-B1010iQNC20,25200601-200809

main88410-B1020iQNC21200601-200809

88433ASTAY, COMPRESSOR

main88433-B1010×3iQNC2#200601-200809

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iQNC2#200601-200809

11 parts on this diagram · 1 diagram in section
