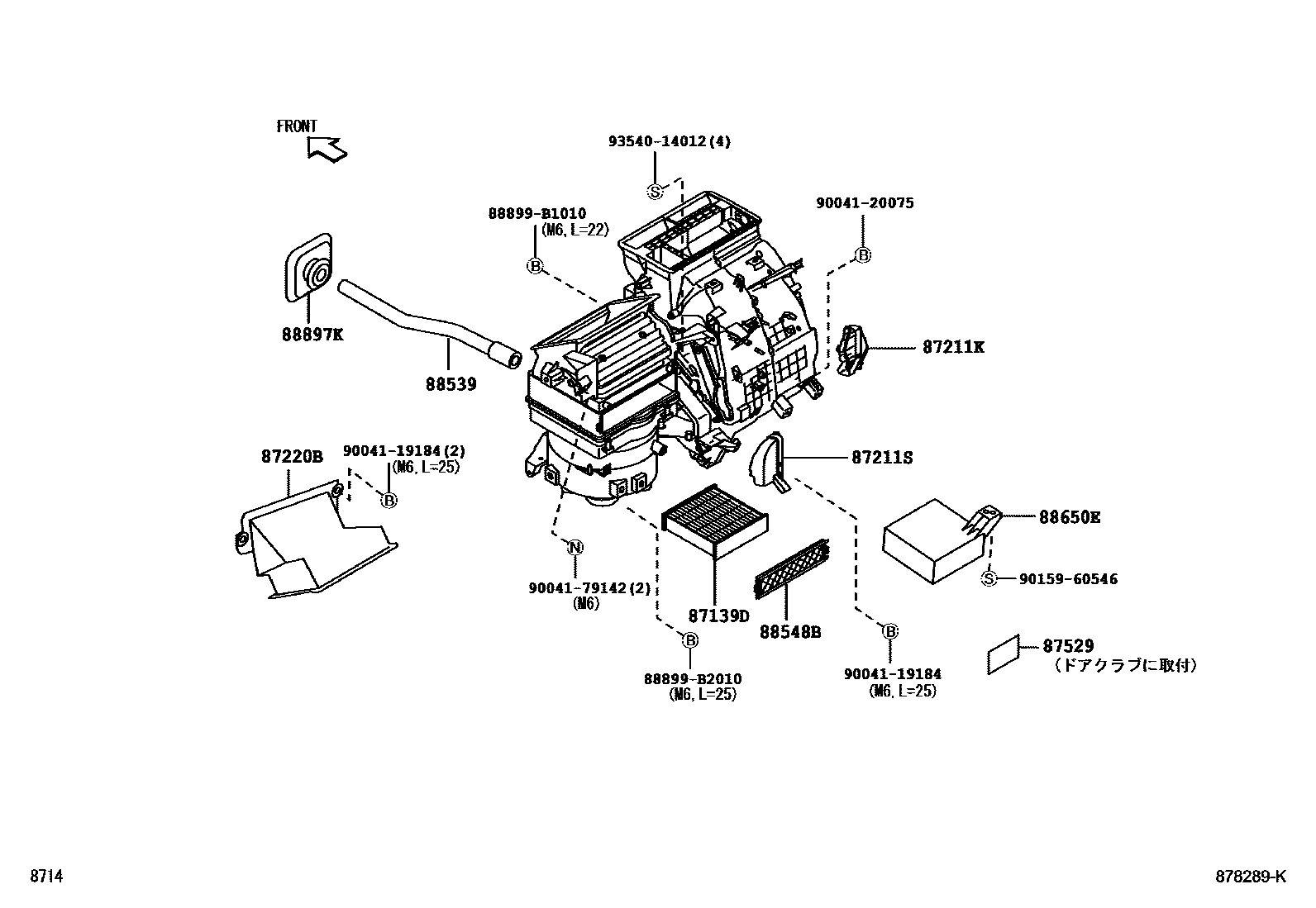

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1MANUAL 0003 1AUTO 0004 1 0005 1

87139DELEMENT, AIR REFINER

main87139-50060iQNC2#200809-201208

main87139-50100iQNC2#201209-201607

main87139-B1020iQNC2#200809-201607

87211KDUCT, AIR

main87211-B1010iQNC25200809-201409

87211SDUCT, AIR

main87212-B1010iQNC2#200601-200809

87220BDUCT ASSY, AIR

main87220-B1060iQNC2#200601-200809

87529PLATE, AIR FILTER CAUTION

main87529-97201iQNC2#200601-200809

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-B1030iQNC2#200601-200809

88548BCASE, AIR FILTER

main88548-B1010iQNC2#200601-200809

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-B1020iQNC21,25..Z200601-200809

88897KGROMMET, (FOR COOLER PIPE)

main88897-B1020iQNC25200809-201409

88899B1010COVER, EVAPORATOR

main88899-B1010

88899B2010COVER, EVAPORATOR

main88899-B2010

9004119184

main90041-19184

9004120075

main90041-20075

9004179142

main90041-79142

9015960546

main90159-60546

9354014012

main93540-14012

16 parts on this diagram · 5 diagrams in section
