4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

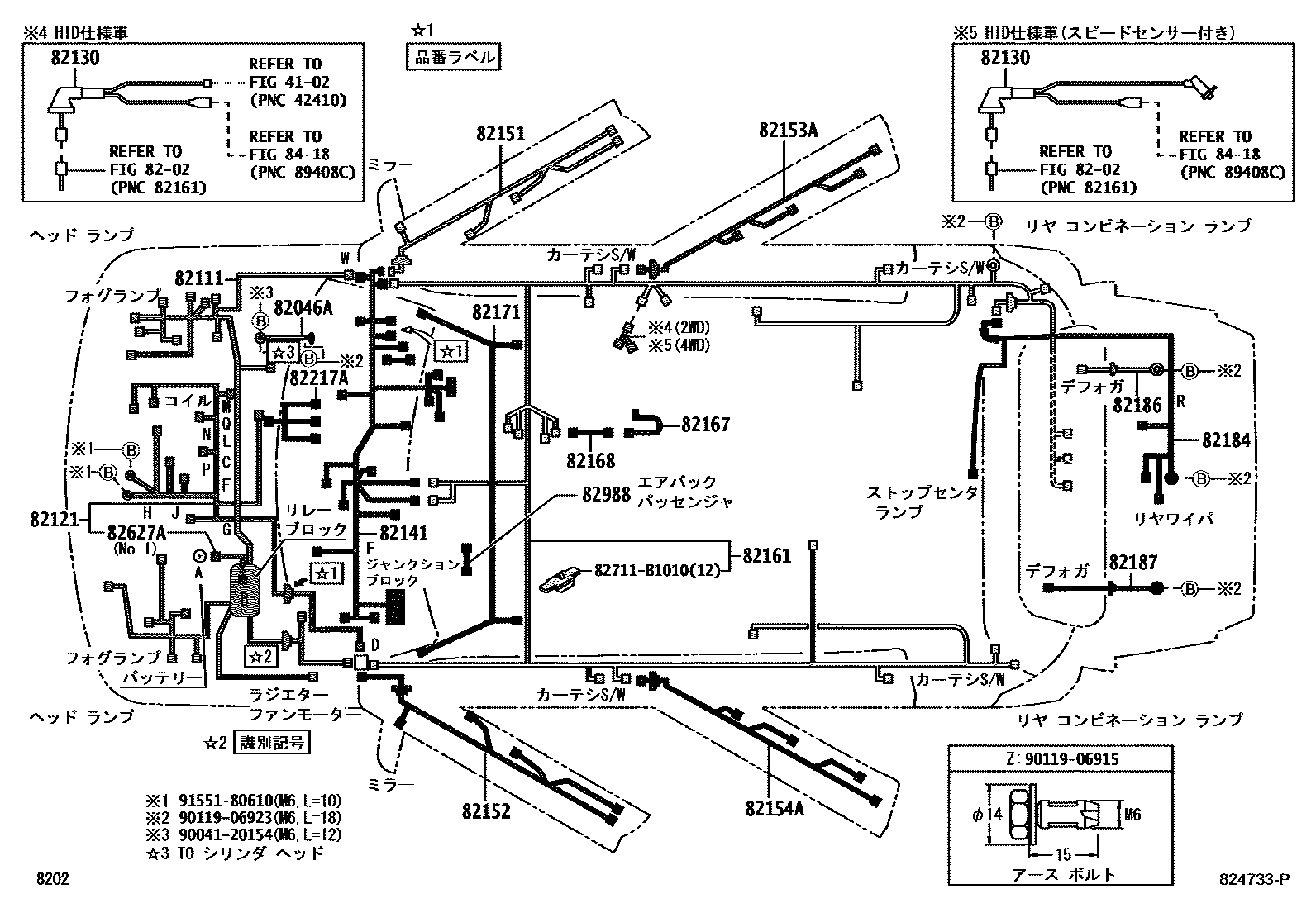

8202WIRING & CLAMP

→ Go to FIG 82-02

82046AWIRE SUB-ASSY, BODY GROUND, NO.1

main82046-B1010i200809-201409

82111WIRE, ENGINE ROOM MAIN

main82111-B1484i201409-201607

main82111-B1350supersedes 82111-B1330i200601-200708

main82111-B1351supersedes 82111-B1331i200708-200809

main82111-B1352supersedes 82111-B1332i200809-201007

main82111-B1353supersedes 82111-B1333i201007-201302

main82111-B1354i201302-201409

main82111-B1450i200601-200708

main82111-B1451i200708-200809

main82111-B1452i200809-201007

main82111-B1453i201007-201302

main82111-B1460i200601-200708

main82111-B1461i200708-200809

main82111-B1462i200809-201007

main82111-B1463i201112-201302

main82111-B1464i201302-201409

main82111-B1470i200601-200708

main82111-B1471i200708-200809

main82111-B1472i200809-201007

main82111-B1473i201007-201302

main82111-B1480i200601-200708

main82111-B1481i200708-200809

main82111-B1482i200809-201007

main82111-B1483i201007-201302

main82111-B1530supersedes 82111-B1330i200601-200708

main82111-B1531supersedes 82111-B1331i200708-200809

main82111-B1532supersedes 82111-B1332i200809-201007

main82111-B1533supersedes 82111-B1333i201007-201302

main82111-B1534supersedes 82111-B1334i201302-201409

main82111-B1540i200601-200708

main82111-B1541i200708-200809

main82111-B1542i200809-201007

main82111-B1543i201112-201302

82121WIRE, ENGINE

main82121-B1210i200601-200605

main82121-B1211i200605-200711

main82121-B1212i200712-200804

main82121-B1213i200809-200904

main82121-B1214i200904-200912

main82121-B1215i200912-201007

main82121-B1216i201007-201409

main82121-B1220i200601-200605

main82121-B1221i200605-200711

main82121-B1222i200809-200904

main82121-B1223i200904-200912

main82121-B1224i200912-201007

main82121-B1225i201007

82130HARNESS ASSY, CHASSIS WIRE

main48980-B1010i200601-200809

main48980-B1020i200601-200606

main48980-B1021i200607-200701

main48980-B1022i200702-200809

82141WIRE, INSTRUMENT PANEL

main82141-B1372supersedes 82141-B1312i201112-201402

main82141-B1373i201402-201409

main82141-B1370supersedes 82141-B1310i200601-200708

main82141-B1371supersedes 82141-B1311i200708-200809

main82141-B1380i200601-200708

main82141-B1381i200809-201112

main82141-B1390i200601-200708

main82141-B1391i200809-201007

main82141-B1392i201007-201112

main82141-B1440supersedes 82141-B1400i200601-200708

main82141-B1441i200809-201007

main82141-B1460supersedes 82141-B1400i200601-200708

main82141-B1461supersedes 82141-B1401i200708-200809

main82141-B1462supersedes 82141-B1402i200809-201112

main82141-B1470supersedes 82141-B1400i200601-200708

main82141-B1471supersedes 82141-B1463i200809-201112

main82141-B1480i200601-200708

main82141-B1481i200809-201007

main82141-B1482supersedes 82141-B1463i201007-201302

main82141-B1660supersedes 82141-B1310i200612-200708

main82141-B1830supersedes 82141-B1311i200708-200809

main82141-B1831i200809-201007

main82141-B1832i201007-201112

main82141-B1890i200809-201007

main82141-B1891i201007-201112

main82141-B1892supersedes 82141-B1463i201402-201409

main82141-B1C90i201112-201402

main82141-B1C91i201402-201409

main82141-B1D00supersedes 82141-B1462i201112-201402

main82141-B1D01supersedes 82141-B1463i201402-201409

main82141-B1G90supersedes 82141-B1G40i201409-201607

main82141-B1J40supersedes 82141-B1J30i201409-201607

main82141-B1J50supersedes 82141-B1J30i201409-201607

82151WIRE, FRONT DOOR, RH

main82151-B1100i200601-200708

main82151-B1210i200708-200809

main82151-B1110i200601-200708

main82151-B1120i200601-200708

main82151-B1200i200612-200708

main82151-B1220i201112

main82151-B1230i200809-201007

main82151-B1231i201007-201302

main82151-B1280i200809-201007

main82151-B1281i201007-201302

82152WIRE, FRONT DOOR, LH

main82152-B1090i200601-200708

main82152-B1170i200708-200809

main82152-B1110i200601-200707

main82152-B1180i200708-200809

82153AWIRE, REAR DOOR, RH

main82153-B1030i200601-200809

main82153-B1040i200601-200708

82154AWIRE, REAR DOOR, LH

main82153-B1030i200809

main82153-B1040i200601-200708

82161WIRE, FLOOR

main82161-B1222i201409-201607

main82161-B1220i200601-200708

main82161-B1221i200708-200809

main82161-B1230i200601-200708

main82161-B1231i200708-200809

main82161-B1233i200809-201007

main82161-B1240i200601-200708

main82161-B1241i200809-201007

main82161-B1290i200601-200708

main82161-B1291supersedes 82161-B1211i200708-200809

main82161-B1292i200809-201302

main82161-B1300i200601-200708

main82161-B1301i200708-200809

main82161-B1431i200908-201007

main82161-B1540i200612-200708

main82161-B1550i200612-200708

main82161-B1640i200708-200809

main82161-B1641i201302-201409

main82161-B1650i200708-200809

main82161-B1651i200809-201302

main82161-B1750i201112-201302

main82161-B1770i200809-201302

main82161-B1820i201302-201409

main82161-B1830i201112-201302

main82161-B1880i201409-201607

82167WIRE, SEAT, NO.1

main82167-B1010i200601-200708

main82167-B1020i201302-201607

82168WIRE, SEAT, NO.2

main82168-B1010i200601-200708

main82168-B1020i201302-201607

82171WIRE, ROOF, NO.1

main82171-B1060i200601-200708

main82171-B1061i200809

main82171-B1070i200601-200707

main82171-B1071i200809-201302

82184WIRE, BACK DOOR, NO.1

main82184-B1050i200809-201101

main82184-B1051i201102

82186WIRE, REAR WINDOW, NO.1

main82186-B1020i200601-200809

82187WIRE, REAR WINDOW, NO.2

main82187-B1020supersedes 82187-B1021i200601-200809

main82187-B1021i200912

82217AWIRE, FRONT WINDOW DEFOGGER

main82217-B1010i200601-200809

82627AWIRE, FUSIBLE LINK

main82627-B1020i200804-200809

main82627-B1030i200601-200605

main82627-B1031i200712-200809

82988WIRE, AIRBAG REPAIR

main89171-B1010i200601-200809

8418ELECTRONIC HEIGHT CONTROL

→ Go to FIG 84-18

82711B1010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-B1010

9004120154

main90041-20154

9011906915

main90119-06915

9011906923

main90119-06923

9155180610

main91551-80610
