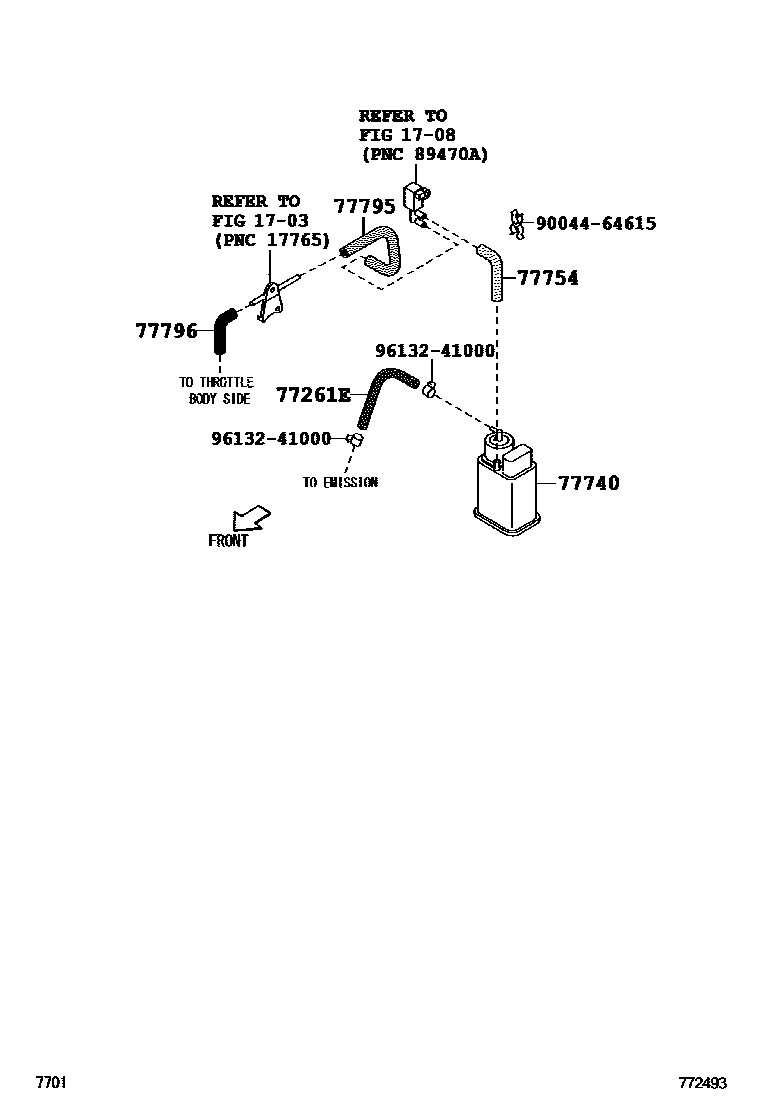

FUEL TANK & TUBE

0001 1CHARCOAL CANISTER 0002 1FUEL TUNK 0003 1FUEL TUNK 0004 1FUEL LID

1703AIR CLEANER

→ Go to FIG 17-03

1708VACUUM PIPING

→ Go to FIG 17-08

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main95331-04028iQNC20,21200601-201409

77740CANISTER ASSY, CHARCOAL

main77740-B1010iQNC2#200601-201409

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-B1050iQNC2#200601-201409

77795HOSE, CHARCOAL CANISTER OUTLET, NO.2

main77795-B1020iQNC2#200601-201409

77796HOSE, CHARCOAL CANISTER OUTLET, NO.3

main77796-B1010iQNC2#200601-201409

9004464615

main90044-64615

9613241000

main96132-41000

9 parts on this diagram · 4 diagrams in section
