MUDGUARD & SPOILER

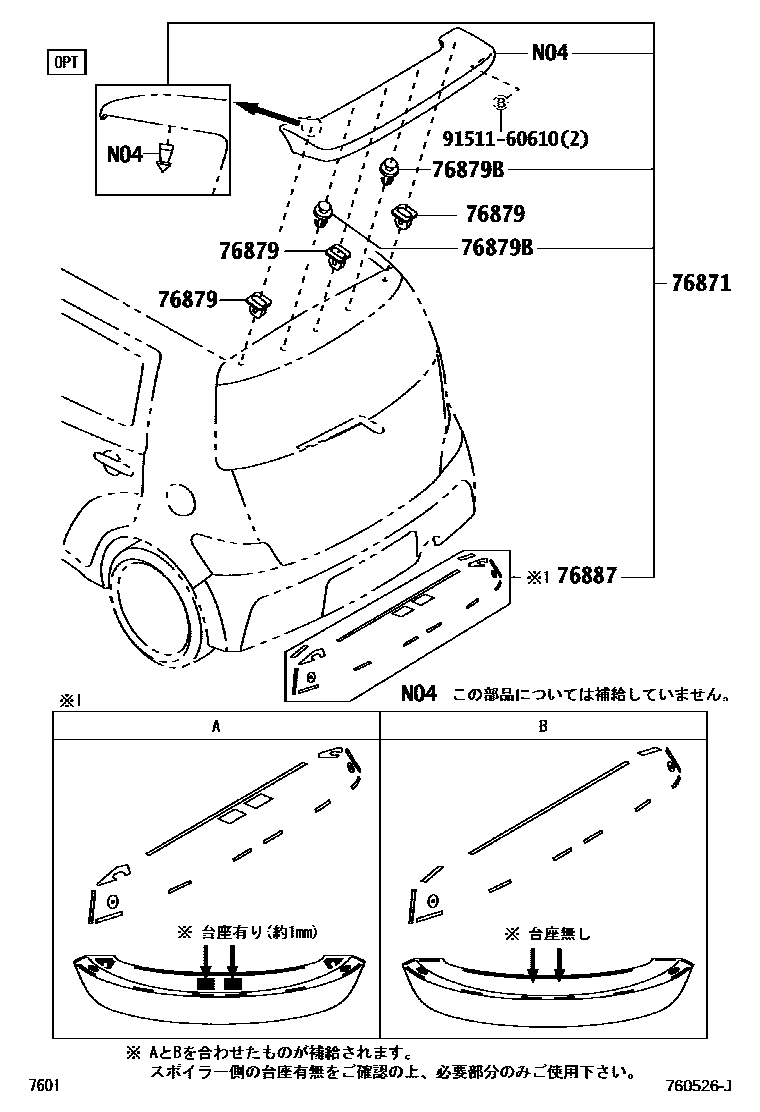

Parts diagram

76871SPOILER, REAR

main76091-B1020-A0i200601-200809

main76091-B1020-A1i200601-200809

main76091-B1020-A2i200809-200810

main76091-B1020-B0i200809-200810

main76091-B1020-B1i200601-200809

main76091-B1020-C0i200601-200809

main76091-B1020-D0i200809-200810

main76091-B1020-G0i200601-200809

main76091-B1020-J0i200601-200809

main76091-B1020-K0i200809-200810

main76091-B1021-A0i200811-201302

main76091-B1021-A2i200811-201302

main76091-B1021-A3i201302-201409

main76091-B1021-B0i200811-201302

main76091-B1021-B1i200811-201112

main76091-B1021-C0i200811-201302

main76091-B1021-D0i200811-201302

main76091-B1021-D1i201409-201607

main76091-B1021-G1i201302-201602

main76091-B1021-K0i200811-201302

76879CLIP, REAR SPOILER, NO.1

main90467-09196×3i200601-200809

76879BCLIP, REAR SPOILER, NO.2

main90044-68377×2i200601-200809

76887SEAL, REAR SPOILER

main76887-B1060i200601-200809

9151160610

main91511-60610

5 parts on this diagram · 1 diagram in section
