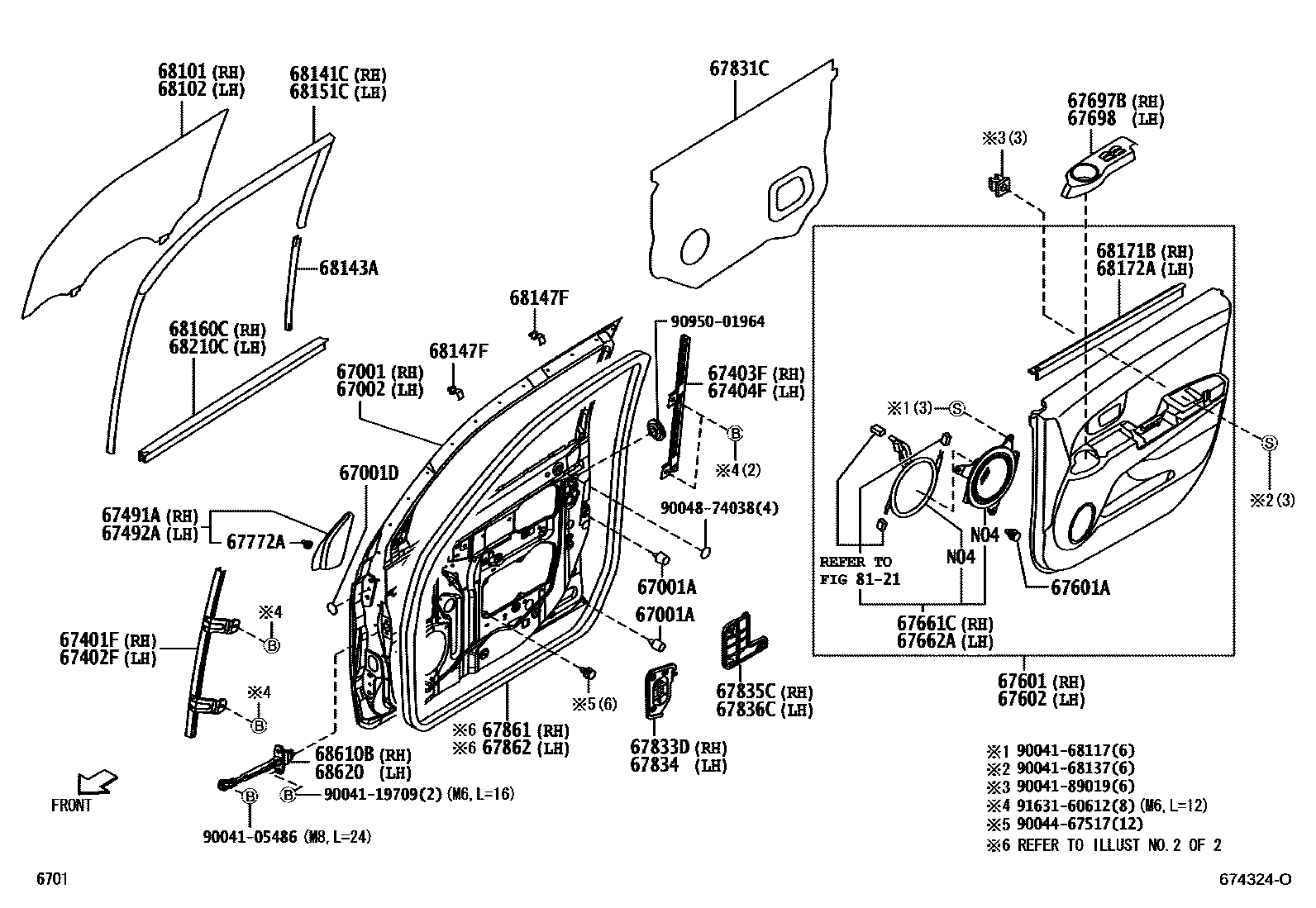

FRONT DOOR PANEL & GLASS

0001 1 0002 1���������� 0003 1������������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-B1030iQNC2#200601-200809

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×4iQNC20,21200809

67001DCOVER, HOLE(FOR FRONT DOOR PANEL)

main90048-74004×2iQNC20,21200809

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-B1030iQNC2#200601-200809

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-B1020iQNC20,21200809

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-B1020iQNC20,21200809

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-B1020iQNC25200809-201409

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-B1020iQNC2#200601-200809

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-B1020iQNC2#200601-200809

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-B1020iQNC2#200601-200809

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-B1050-B1iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

main67610-B1040-B1iQNC20,21;QNC25..Z201112-201408

main67610-B1041-B1iQNC2#201409-201607

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-B2010×14iQNC2#200601-200809

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-B1050-B1iQNC2#200601-200809

DK.GRAY,TRIM1#

main67620-B1040-B1iQNC20,21;QNC25..Z200601-200809

main67620-B1041-B1iQNC2#201409-201607

67661CBASE, DOOR SPEAKER GRILLE, RH

main67661-B1020-B0iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

main67661-B1010-B0iQNC20,21;QNC25..Z200601-200809

67662ABASE, DOOR SPEAKER GRILLE, LH

main67662-B1020-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

main67662-B1010-B0iQNC20,21;QNC25..Z201302-201607

67697BHOLDER, BOTTLE, RH

main67697-B1010-B0iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

67698HOLDER, BOTTLE, LH

main67698-B1010-B0iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

67772ACAP, FRONT DOOR TRIM RETAINER

main67772-87101×2iQNC25200809-201409

67831CCOVER, FRONT DOOR SERVICE HOLE

main67831-B1020×2iQNC2#200601-200809

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-B1010iQNC20,21;QNC25..Z200601-200809

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67834-B1010iQNC20,21;QNC25..Z200601-200809

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-B1010iQNC20,21;QNC25..Z200601-200809

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-B1020iQNC20,21;QNC25..Z200601-200809

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-B1030iQNC2#200601-200809

main67861-B1031iQNC2#200812-200902

main67861-B1032iQNC25200903-201409

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-B1020iQNC2#200601-200809

main67862-B1021iQNC2#200812-200902

main67862-B1022iQNC25200903-201409

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-B1020iQNC2#200601-200809

main68101-B1090iQNC20,21201409

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-B1020iQNC25200809-201409

main68102-B1090iQNC20,21201409

68141CRUN, FRONT DOOR GLASS, RH

main68141-B1020iQNC2#200601-200809

68143ARUN, FRONT DOOR GLASS, NO.2

main68143-B1020×2iQNC2#200601-200809

68147FSTOP, FRONT DOOR GLASS, UPPER

main68147-B1030×4iQNC25200809-201409

68151CRUN, FRONT DOOR GLASS, LH

main68151-B1020iQNC25200809-201409

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-B1020iQNC2#200601-200809

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-B1020iQNC2#200809-201607

main68171-B1022iQNC2#201409-201607

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-B1020iQNC2#; QNC20,21;QNC25..Z200601-200809

main68172-B1022iQNC2#201409-201607

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-B1020iQNC25200809-201409

68610BCHECK ASSY, FRONT DOOR, RH

main68610-B1020iQNC2#200601-200809

main68610-B1021iQNC2#200906-201312

main68610-B1022iQNC25201401-201409

68620CHECK ASSY, FRONT DOOR, LH

main68610-B1020iQNC2#200810-200905

main68610-B1021iQNC2#200906-201312

main68610-B1022iQNC20,21201401

main68620-B1020iQNC2#200809-200810

8121INTERIOR LAMP

→ Go to FIG 81-21

9004105486

main90041-05486

9004119709

main90041-19709

9004168117

main90041-68117

9004168137

main90041-68137

9004189019

main90041-89019

9004467517

main90044-67517

9004874038

main90048-74038

9095001964

main90950-01964

9163160612

main91631-60612

47 parts on this diagram · 3 diagrams in section
