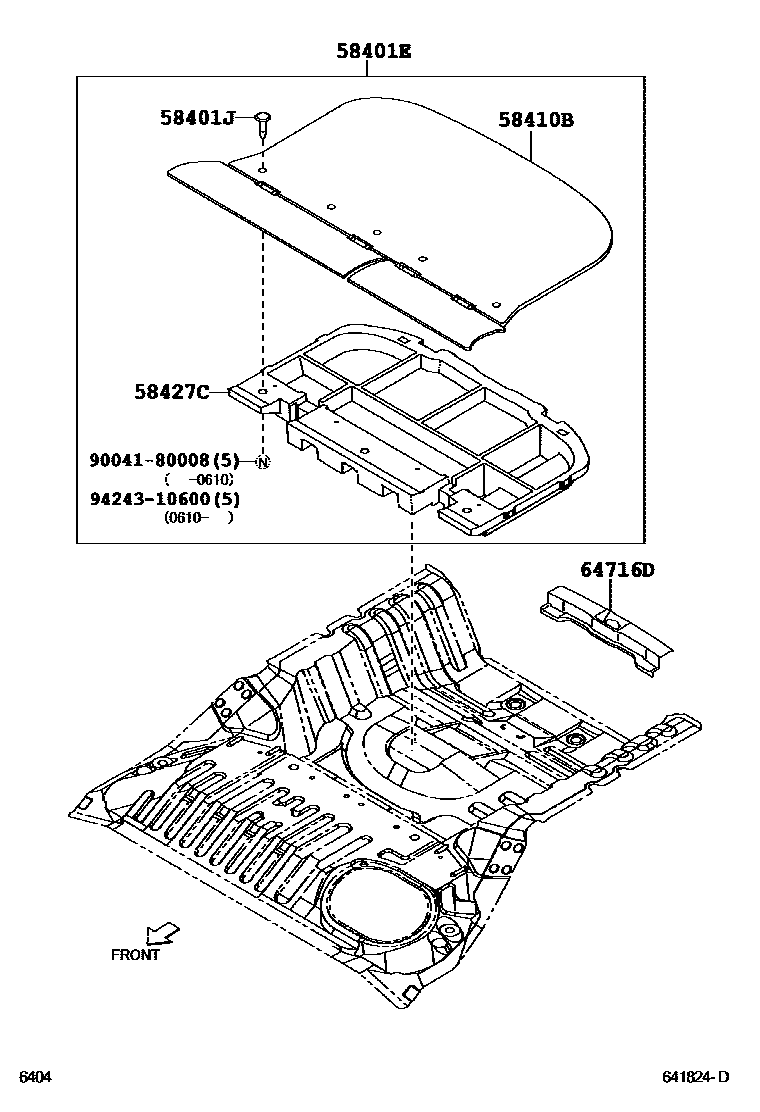

DECK BOARD & DECK TRIM COVER

0001 1 0002 1AERO-G PACKAGE

58401EBOARD SUB-ASSY, DECK

main58910-B1020-B1iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

58401JCLIP(FOR DECK BOAD)

main90044-68122-C0×5iQNC2#200809-201607

BLACK

58410BBOARD ASSY, DECK

main58410-B1060-B1iQNC2#200601-200809

-,TRIM1#

main58410-B1070-B1iQNC20,21;QNC25..Z201112-201302

58427CSPACER, REAR FLOOR BOARD

main58427-B1020iQNC2#200601-200809

main58427-B1030iQNC25..Z201302-201409

64716DCOVER, DECK TRIM, REAR

main64716-B1020-B0iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

9004180008

main90041-80008

9424310600

main94243-10600

7 parts on this diagram · 2 diagrams in section
