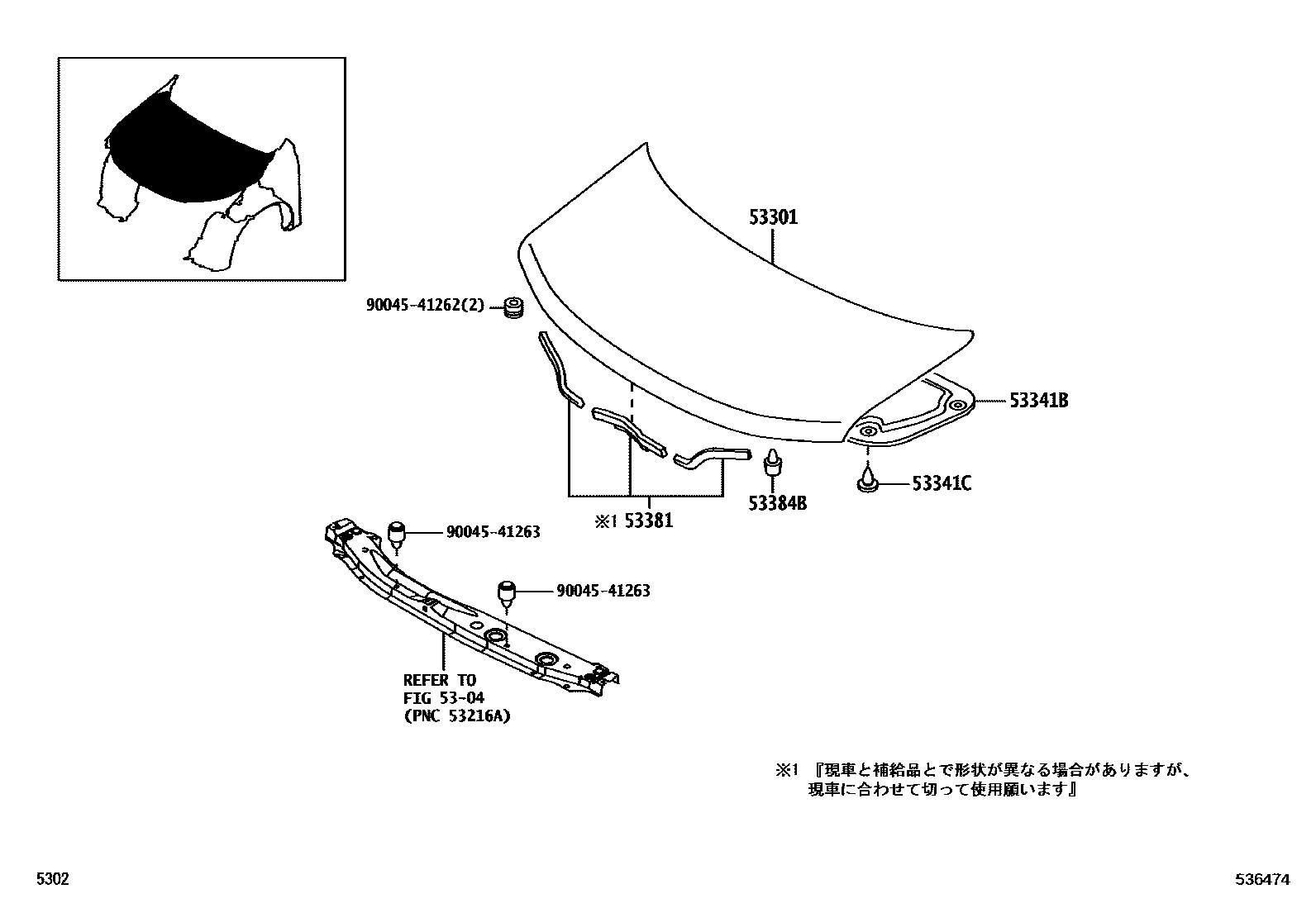

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53301HOOD SUB-ASSY

main53301-B1070iQNC2#200809-201607

53341BINSULATOR, HOOD

main53341-B1020iQNC20,21200809

53341CCLIP(FOR HOOD INSULATOR)

main90044-68280×4iQNC2#200601-200809

main90467-09050×4iQNC20,21200809

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-B1040iQNC25200809-201409

53384BCUSHION, HOOD, CENTER

main53384-B1020×2iQNC25200809-201409

9004541262

main90045-41262

9004541263

main90045-41263

8 parts on this diagram · 3 diagrams in section
