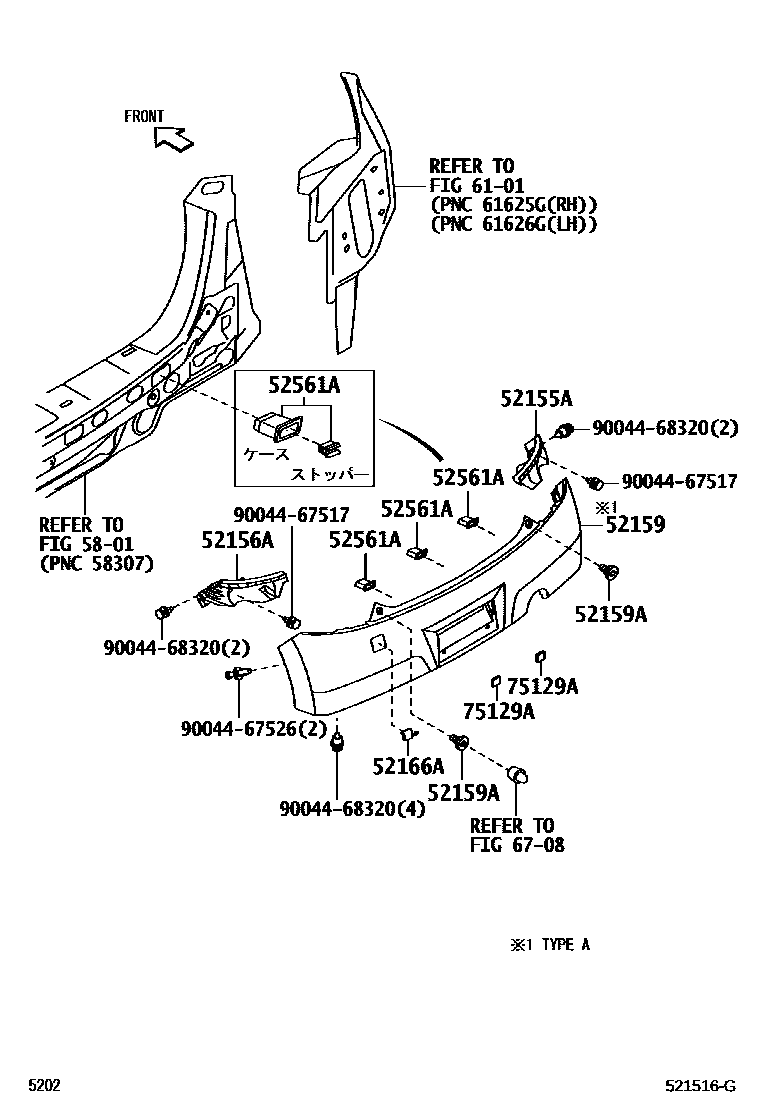

REAR BUMPER & BUMPER STAY

0001 1STD 0002 1OPT

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-B1020iQNC2#200601-201607

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-B1020iQNC2#200601-201607

52159COVER, REAR BUMPER

main52159-B1040-A0iQNC20,21;QNC25..Z200601-200809

main52159-B1040-A0iQNC2#200601-201607

main52159-B1040-A1iQNC20,21;QNC25..Z200601-200809

main52159-B1040-A1iQNC2#200601-200809

main52159-B1040-A2iQNC2#200809-201302

main52159-B1040-A2iQNC20,21;QNC25..Z200809-201302

main52159-B1040-A2iQNC20,21;QNC25..Z200809-201302

main52159-B1040-A3iQNC2#201302-201607

main52159-B1040-A3iQNC20,21;QNC25..Z201302-201607

main52159-B1040-B0iQNC20,21;QNC25..Z200601-201607

main52159-B1040-B0iQNC2#200601-200809

main52159-B1040-B1iQNC20,21;QNC25..Z200809-201112

main52159-B1040-B1iQNC20,21;QNC25..Z200809-201112

main52159-B1040-B1iQNC20,21;QNC25..Z200601-201112

main52159-B1040-B1iQNC20,21;QNC25..Z200601-200809

main52159-B1040-C0iQNC20,21;QNC25..Z200601-201607

main52159-B1040-C0iQNC2#200601-200809

main52159-B1040-D0iQNC2#200601-200809

main52159-B1040-D0iQNC2#200601-201607

main52159-B1040-D1iQNC20,21;QNC25..Z200701-201602

main52159-B1040-D1iQNC20,21;QNC25..Z200701-200809

main52159-B1040-D2iQNC20,21;QNC25..Z200908-201001

main52159-B1040-D2iQNC20,21;QNC25..Z200908-201001

main52159-B1040-D2iQNC20,21;QNC25..Z200908-201001

main52159-B1040-D3iQNC2#201409-201607

main52159-B1040-D3iQNC2#201409-201607

main52159-B1040-E0iQNC20,21;QNC25..Z200809-201112

main52159-B1040-E0iQNC2#200809-201112

main52159-B1040-E0iQNC20,21;QNC25..Z200809-201112

main52159-B1040-G0iQNC20,21;QNC25..Z200601-200809

main52159-B1040-G0iQNC20,21;QNC25..Z200601-200809

main52159-B1040-G1iQNC2#201007-201112

main52159-B1040-G1iQNC2#201007-201112

main52159-B1040-G1iQNC2#201007-201112

main52159-B1040-G2iQNC20,21;QNC25..Z201112-201602

main52159-B1040-J0iQNC2#200601-200809

main52159-B1040-J0iQNC20,21;QNC25..Z200601-200809

main52159-B1040-J1iQNC20,21;QNC25..Z200701-201112

main52159-B1040-J1iQNC2#200809-201112

main52159-B1040-J1iQNC2#200809-201112

main52159-B1040-J1iQNC20,21;QNC25..Z200701-200809

main52159-B1040-K0iQNC2#200809-201409

52159ABOLT(FOR REAR BUMPER COVER)

main45898-B1011iQNC2#200601-201607

52166ACOVER, REAR BUMPER, UPR LH

main52166-B1030-A0iQNC20,21;QNC25..Z200601-200809

main52166-B1030-A0iQNC2#200601-201607

WHITE,W09

main52166-B1030-A1iQNC2#200601-200809

main52166-B1030-A1iQNC20,21;QNC25..Z200601-200809

BLUISH WHITE P.M.,W21

main52166-B1030-A2iQNC20,21;QNC25..Z200809-201302

WHITE PEARL.MC.,W16

main52166-B1030-A2iQNC20,21;QNC25..Z200809-201302

main52166-B1030-A2iQNC20,21;QNC25..Z200809-201302

main52166-B1030-A3iQNC2#201302-201607

WHITE PEARL MC.CS,W24

main52166-B1030-A3iQNC2#201302-201607

main52166-B1030-B0iQNC2#200601-201607

SILVER ME.,S28

main52166-B1030-B0iQNC20,21;QNC25..Z200601-200809

main52166-B1030-B1iQNC20,21;QNC25..Z200809-201112

main52166-B1030-B1iQNC2#200601-201112

GRAY ME.,S30

main52166-B1030-B1iQNC2#200601-200809

main52166-B1030-B1iQNC20,21;QNC25..Z200809-201112

main52166-B1030-C0iQNC2#200601-201607

BLACK M.M.,X07

main52166-B1030-C0iQNC20,21;QNC25..Z200601-200809

main52166-B1030-D0iQNC2#200601-201607

DK.RED.MC,R54

main52166-B1030-D0iQNC20,21;QNC25..Z200601-200809

main52166-B1030-D1iQNC20,21;QNC25..Z200701-201602

RED,R40

main52166-B1030-D1iQNC2#200701-200809

main52166-B1030-D2iQNC20,25..S200908-201001

MAROON MC.,R56

main52166-B1030-D3iQNC2#201409-201607

main52166-B1030-D3iQNC2#201409-201607

PINK PEARL SE,R65

main52166-B1030-E0iQNC20,21;QNC25..Z200809-201112

main52166-B1030-E0iQNC20,21;QNC25..Z200809-201112

main52166-B1030-E0iQNC20,21;QNC25..Z200809-201112

CHAMPAGNE ME.,T23

main52166-B1030-G0iQNC2#200601-200809

YELLOW GREEN M.M.,G43

main52166-B1030-G0iQNC2#200601-200809

main52166-B1030-G1iQNC2#201007-201112

LT.GREEN.ME.,G50

main52166-B1030-G2iQNC20,21;QNC25..Z201112-201602

OLIVE ME.SE,G52

main52166-B1030-J0iQNC2#200601-200809

DK.BLUE M.M.,B42

main52166-B1030-J0iQNC20,21;QNC25..Z200601-200809

main52166-B1030-J1iQNC20,21;QNC25..Z200701-201112

LT.BLUE ME.OP.,B57

main52166-B1030-J1iQNC2#200809-201112

main52166-B1030-J1iQNC2#200809-201112

main52166-B1030-J1iQNC2#200701-200809

main52166-B1030-K0iQNC2#200809-201409

GRAYISH PURPLE ME.OP.,P12

52561ACLIP(FOR REAR BUMPER RETAINER)

main52561-B1010iQNC2#200601-201607

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

6101SIDE MEMBER

→ Go to FIG 61-01

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

75129ACUSHION, REAR LICENCE PLATE

main75129-B1010iQNC2#200601-201607

9004467517

main90044-67517

9004467526

main90044-67526

9004468320

main90044-68320

13 parts on this diagram · 2 diagrams in section
