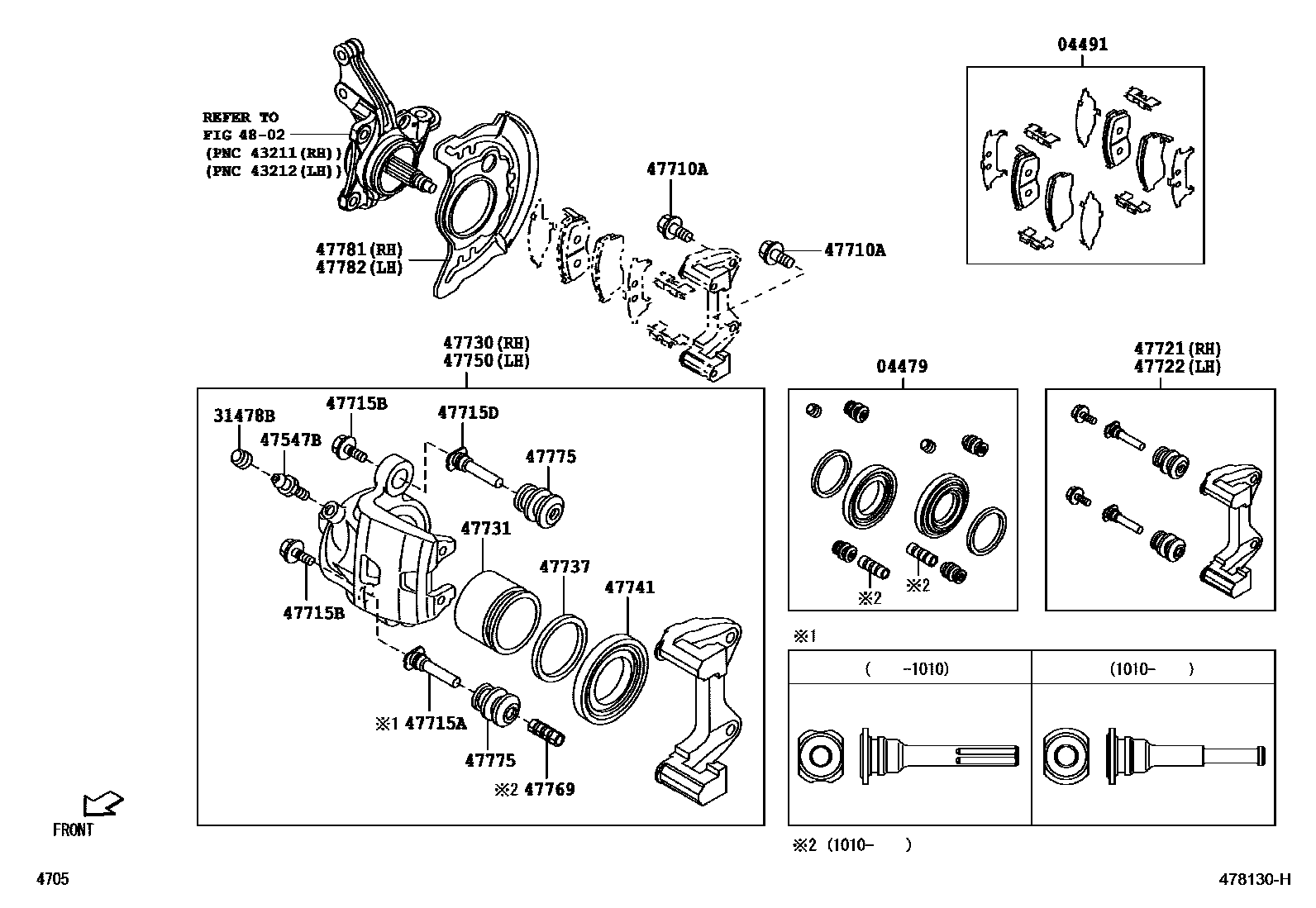

FRONT DISC BRAKE CALIPER & DUST COVER

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-B1010iQNC2#200601-200604

main04478-B2080iQNC2#200809-201010

main04478-B2150iQNC25201010-201409

04491PAD KIT, DISC BRAKE, FRONT

main04465-B1170iQNC2#200809-201109

main04491-B1080iQNC2#201109-201509

main04491-B1081iQNC2#201509-201603

main04491-B1150iQNC2#201604-201607

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-97401×2iQNC2#200601-200809

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-B1020×2iQNC20,21200809

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90041-05242×4iQNC20,21200809

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-B2010×2iQNC25201010-201409

main47715-97401×2iQNC2#200601-200809

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-B1020×4iQNC2#200601-200809

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-97401×2iQNC2#200601-200809

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-B9010iQNC2#200601-200809

main47721-B9011iQNC2#201010-201607

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-B9012iQNC25201010-201409

main47722-B9010iQNC2#200601-200809

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-B1012iQNC20,21200809

47731PISTON, FRONT DISC BRAKE

main47731-97401×2iQNC2#200601-200809

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-97401×2iQNC2#200601-200809

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-97401×2iQNC20,21200809

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-B1012iQNC2#200601-200809

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-B2020×2iQNC25201010-201409

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-97401×4iQNC2#200601-200809

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-97403iQNC2#200601-200809

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-97403iQNC2#200601-200809

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

20 parts on this diagram · 1 diagram in section
