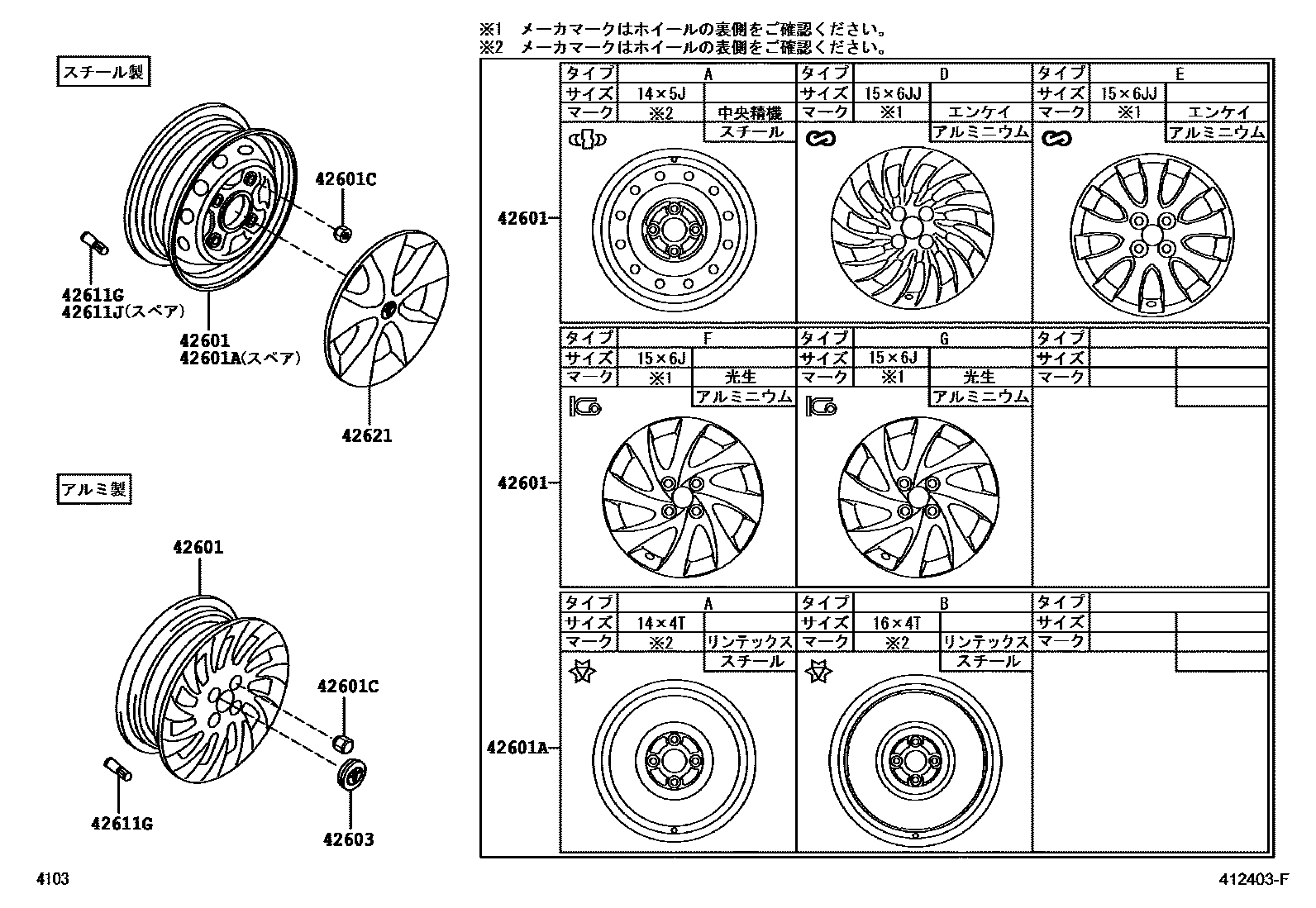

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-97206×4iQNC2#200601-200809

main42611-B1070×4iQNC20,21;QNC25..Z200601-200809

main42611-B1090×4iQNC21,25..Z200809-201409

main42611-B1180×4iQNC20,21;QNC25..Z200809-201302

main42611-B1200×4iQNC20,21;QNC25..Z201112-201409

42601AWHEEL, DISC (FOR SPARE)

main42611-B1040iQNC20,21200809

main42611-B1050iQNC25200601-200809

42601CNUT, HUB (FOR AXLE)

main90049-11036×16iQNC2#200809-201409

main90049-11047×16iQNC20,21201409

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42638-B1080×4iQNC20,21201409

main42603-52110×4iQNC20,21;QNC25..Z200601-200809

main42638-B1090×4iQNC20,21;QNC25..Z200809-201302

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019×4iQNC2#200601-200809

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90049-02019iQNC2#200601-200809

42621CAP, WHEEL

main42602-B1040×4iQNC2#200601-200809

7 parts on this diagram · 3 diagrams in section
