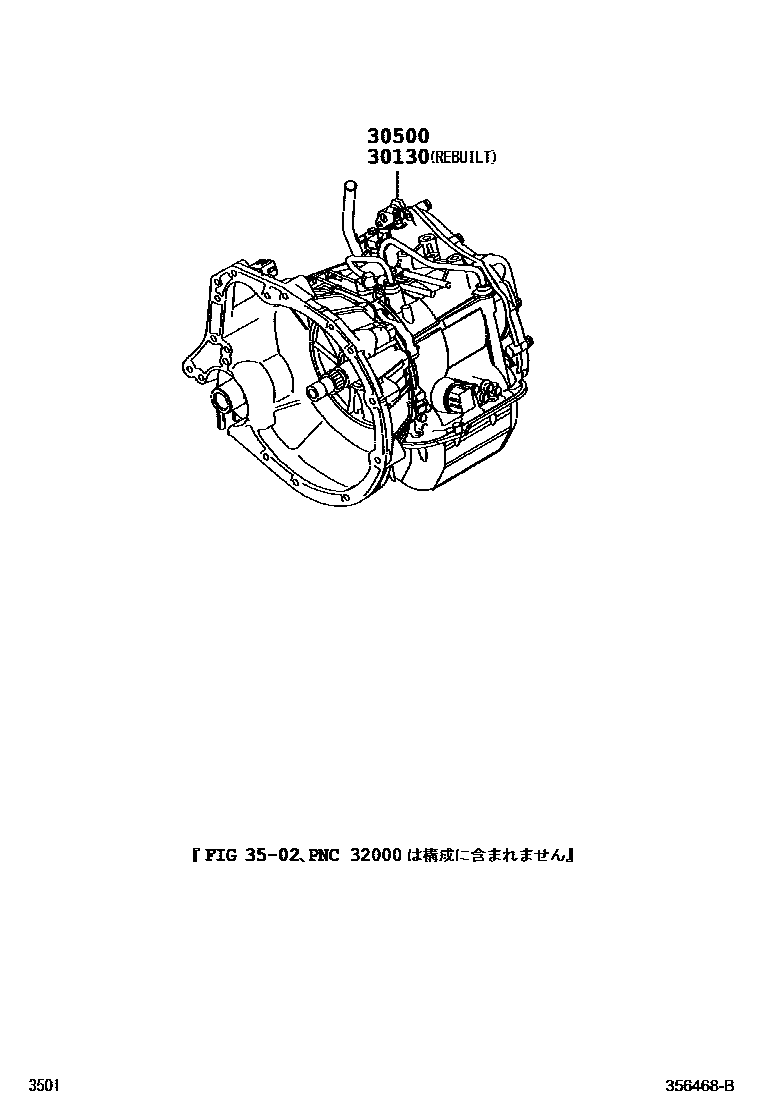

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

30130TRANSAXLE ASSY, REBUILT

main30130-B1030iQNC20200809-201110

main30130-B1040iQNC21200601-200809

main30130-B1050iQNC25200809-201110

main30130-B1120iQNC21200809-201110

main30130-B1140iQNC20201110-201607

main30130-B1150iQNC21201110-201607

main30130-B1160iQNC25201110-201409

30500TRANSAXLE ASSY, AUTOMATIC

main30500-B1030iQNC20200601-200809

main30500-B1040iQNC21200601-200809

main30500-B1050iQNC25200601-200809

main30500-B1120iQNC21200809-201110

main30500-B1140iQNC20201110

main30500-B1150iQNC21201110

main30500-B1160iQNC25201110-201409

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3 parts on this diagram · 1 diagram in section
