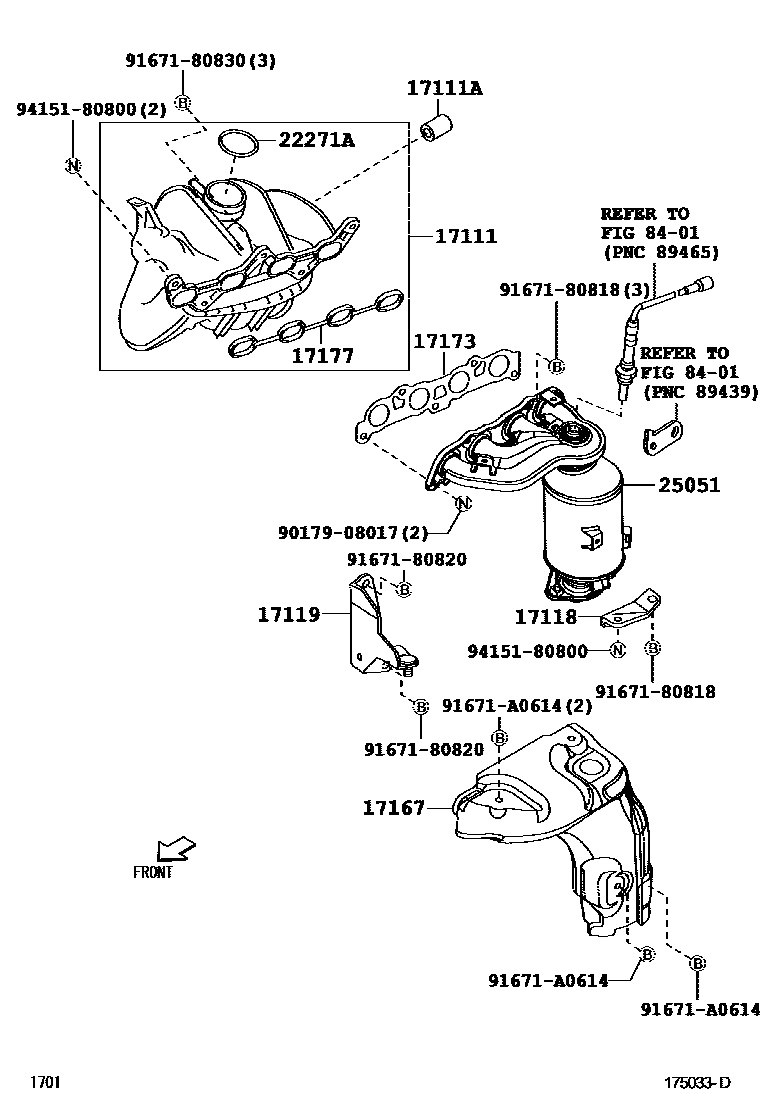

MANIFOLD

17111MANIFOLD, INTAKE

main17120-B1020iK3VE,3SZVE..QNC2#200601-200809

17111APLUG, NO.1

main90043-39029iK3VE,3SZVE..QNC2#200601-200809

17118STAY, MANIFOLD

main17118-B1020i3SZVE..QNC21200809

main17118-B2030iK3VE..QNC20,25200601-200809

17119STAY, MANIFOLD, NO.2

main17119-B1020iK3VE,3SZVE..QNC2#200608-200809

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-B1040iK3VE..QNC25200809-201409

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-97401iK3VE,3SZVE..QNC2#200601-200809

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-B1020iK3VE,3SZVE..QNC2#200601-200809

22271AGASKET, THROTTLE BODY

main90043-01321iK3VE,3SZVE..QNC2#200601-200809

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main17140-B1060iK3VE,3SZVE..QNC2#200601-200704

main17140-B1220iK3VE,3SZVE..QNC2#200704-200809

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908017

main90179-08017

9167180818

main91671-80818

9167180820

main91671-80820

9167180830

main91671-80830

91671A0614

main91671-A0614

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
