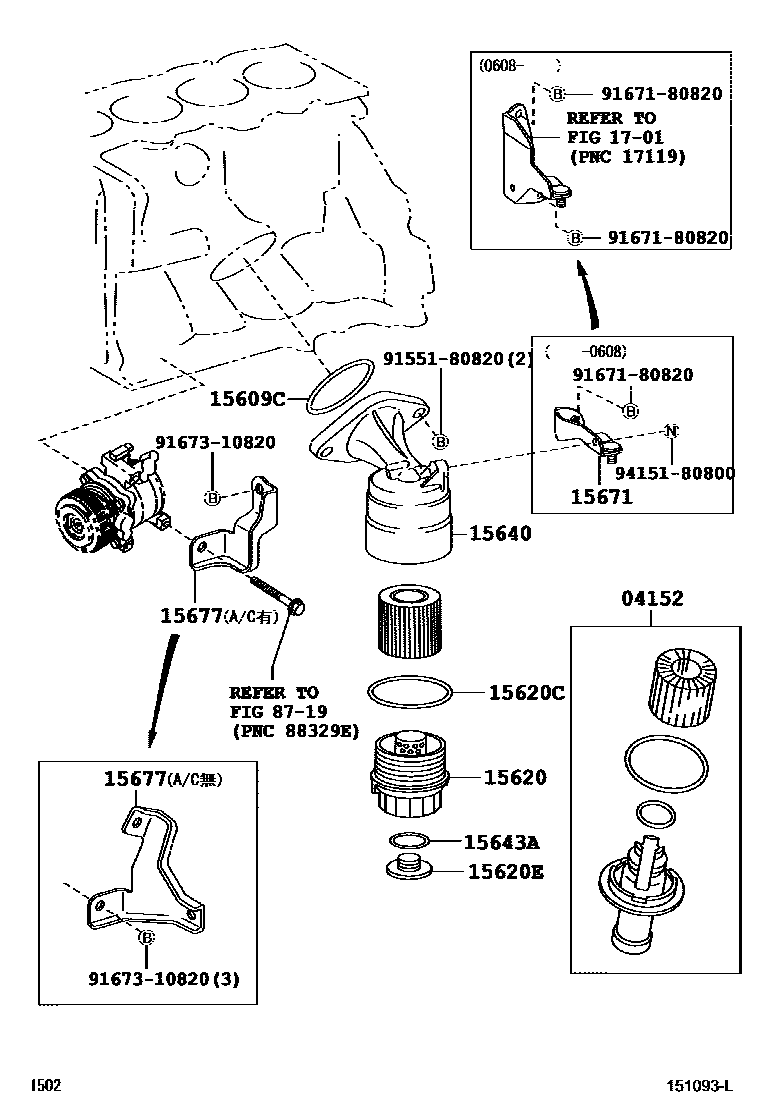

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-40060iK3VE,3SZVE..QNC2#200601-200809

15609CGASKET(FOR OIL FILTER BRACKET UNION)

main90043-01141iK3VE,3SZVE..QNC2#200601-200809

15620CAP ASSY, OIL FILTER

main15620-40030iK3VE,3SZVE..QNC2#200601-200809

15620CGASKET(FOR OIL FILTER CAP)

main90301-69010iK3VE,3SZVE..QNC2#200601-200802

main90301-69011iK3VE,3SZVE..QNC2#200802-200809

15620EPLUG(FOR OIL FILTER CAP)

main15643-31040iK3VE,3SZVE..QNC2#200601-200608

main15643-31050iK3VE,3SZVE..QNC2#200608-200809

15640CASE ASSY, OIL FILTER

main15640-B1010iK3VE,3SZVE..QNC2#200601-200608

main15640-B1012iK3VE,3SZVE..QNC2#200608-200809

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028iK3VE,3SZVE..QNC2#200601-200809

15671BRACKET, OIL FILTER

main15671-B1020iK3VE,3SZVE..QNC2#200601-200608

15677BRACKET, OIL FILTER

main15677-B1020iK3VE,3SZVE..QNC2#200608-200809

1701MANIFOLD

→ Go to FIG 17-01

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

9155180820

main91551-80820

9167180820

main91671-80820

9167310820

main91673-10820

9415180800

main94151-80800

15 parts on this diagram · 1 diagram in section
