E
EPC Data

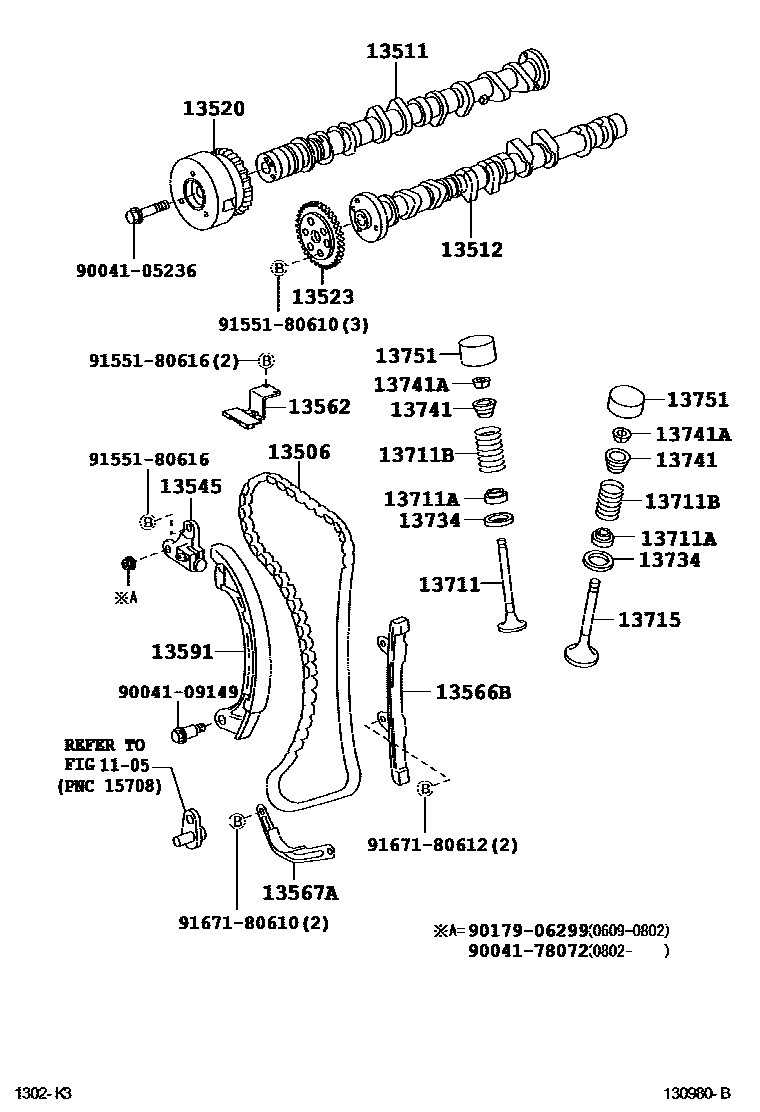

CAMSHAFT & VALVE

Parts diagram
1105
13506CHAIN SUB-ASSY
main13506-97401i200601-201409
main13506-B1010i200601-200809
13511CAMSHAFT
main13501-97401i200601-201409
main13501-B1020i200601-200809
13512CAMSHAFT, NO.2
main13502-97401i200601-201409
13520SPROCKET ASSY, CAMSHAFT TIMING
main13520-97403i200601-201409
main13520-B1020i200601-200809
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-97401i200601-201409
main13523-B1010i200601-200809
13545PLUNGER, CHAIN TENSIONER
main13545-23020i200601-200912
sub13545-23021
main13545-23021i200912-201001
sub13545-23022
main13545-23022i201001
main13545-97401i200601-201409
13562DAMPER, CHAIN VIBRATION, NO.2
main13562-B1010i200601-200701
13566BGUIDE, TIMING CHAIN
main13566-97401i200601-201409
main13566-B1020i200601-200809
13567AGUIDE, TIMING CHAIN, NO.2
main13567-23030i200601-200809
main13567-97401i200601-201409
13591ARM, TIMING CHAIN TENSION
main13591-97401i200601-201409
main13591-B1020i200601-200809
13711VALVE, INTAKE
main13711-B1020i200601-201409
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90048-12021i200601-200707
main90048-12026i200708-201607
sub90913-02125
13711BSPRING, COMPRESSION(FOR INNER)
main90045-01859i200601-200809
main90045-01859i200809-201409
main90045-01898i200601-201409
13715VALVE, EXHAUST
main13715-B1020i200601-201409
13734SEAT, VALVE SPRING
main13734-87206i200601-201409
13741RETAINER, VALVE SPRING
main13741-97401i200601-201409
13741ALOCK, VALVE SPRING RETAINER
main90048-13013i200601-201409
13751LIFTER, VALVE
main13751-97401-12i200601-201510
MARK12
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-14i200601-201510
MARK14
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-16i200601-201510
MARK16
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-18i200601-201510
MARK18
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-20i200601-201510
MARK20
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-22i200601-201510
MARK22
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-24i200601-201510
MARK24
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-26i200601-201510
MARK26
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-28i200601-201510
MARK28
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-30i200601-201510
MARK30
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-32i200601-201510
MARK32
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-34i200601-201510
MARK34
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-36i200601-201510
MARK36
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-38i200601-201510
MARK38
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-40i200601-201510
MARK40
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-42i200601-201510
MARK42
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-44i200601-201510
MARK44
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-46i200601-201510
MARK46
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-48i200601-201510
MARK48
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-50i200601-201510
MARK50
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-52i200601-201510
MARK52
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-54i200601-201510
MARK54
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-56i200601-201510
MARK56
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-58i200601-201510
MARK58
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-60i200601-201510
MARK60
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-62i200601-201510
MARK62
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-64i200601-201510
MARK64
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-66i200601-201510
MARK66
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-68i200601-201510
MARK68
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-B6030i201511
main13751-B6040i201511
main13751-B6050i201511
main13751-B6060i201511
main13751-B6070i201511
main13751-B6080i201511
main13751-B6090i201511
main13751-B6100i201511
main13751-B6110i201511
main13751-B6120i201511
main13751-B6130i201511
main13751-B6140i201511
main13751-B6150i201511
main13751-B6160i201511
main13751-B6170i201511
main13751-B6180i201511
main13751-B6190i201511
main13751-B6200i201511
main13751-B6210i201511
main13751-B6220i201511
main13751-B6230i201511
main13751-B6240i201511
main13751-B6250i201511
main13751-B6260i201511
main13751-B6270i201511
main13751-B6280i201511
main13751-B6290i201511
main13751-B6300i201511
main13751-B6310i201511
9004105236
main90041-05236
9004109149
main90041-09149
9004178072
main90041-78072
9017906299
main90179-06299
9155180610
main91551-80610
9155180616
main91551-80616
9167180610
main91671-80610
9167180612
main91671-80612

27 parts on this diagram · 1 diagram in section

CAMSHAFT & VALVE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
