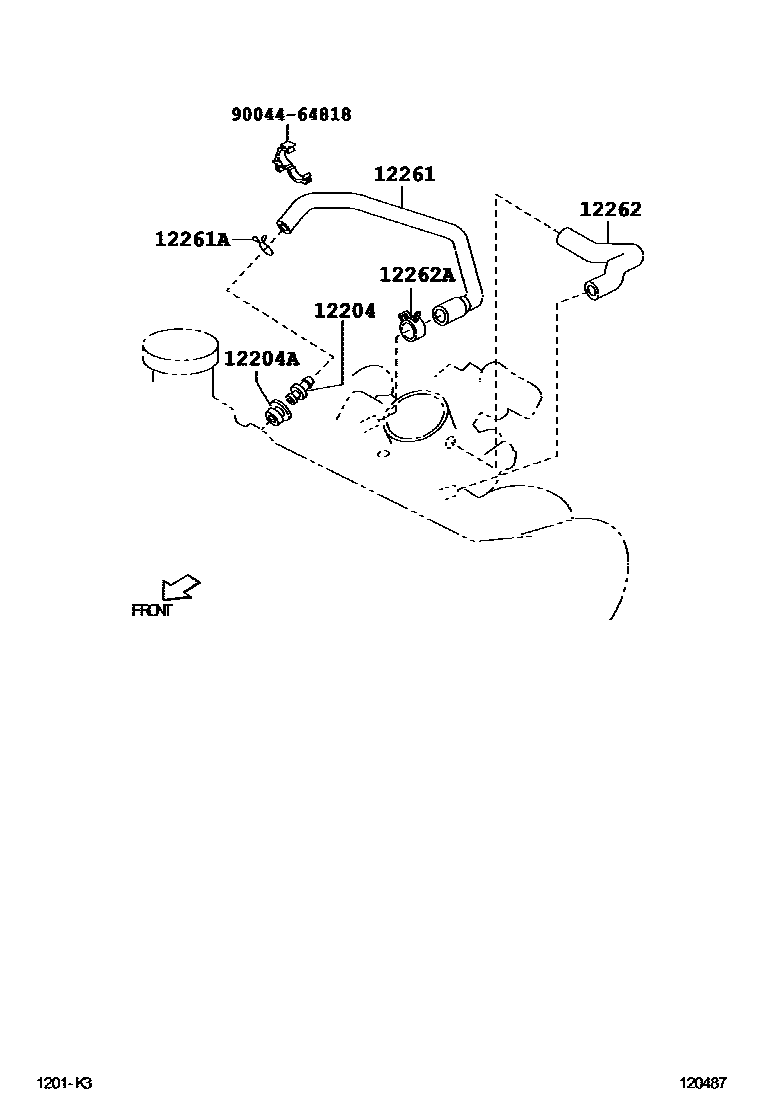

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-97401iK3VE,3SZVE..QNC2#200601-201409

12204AGROMMET(FOR VENTILATION SYSTEM)

main90044-80655iK3VE,3SZVE..QNC2#200601-201409

12261HOSE, VENTILATION

main12261-B1030iK3VE,3SZVE..QNC2#200601-200605

sub12261-B1031

main12261-B1031iK3VE,3SZVE..QNC2#200606-201409

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001iK3VE,3SZVE..QNC2#200601-201409

12262HOSE, VENTILATION, NO.2

main12262-97401iK3VE,3SZVE..QNC2#200601-201409

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-18003iK3VE,3SZVE..QNC2#200601-201409

9004464818

main90044-64818

7 parts on this diagram · 1 diagram in section
