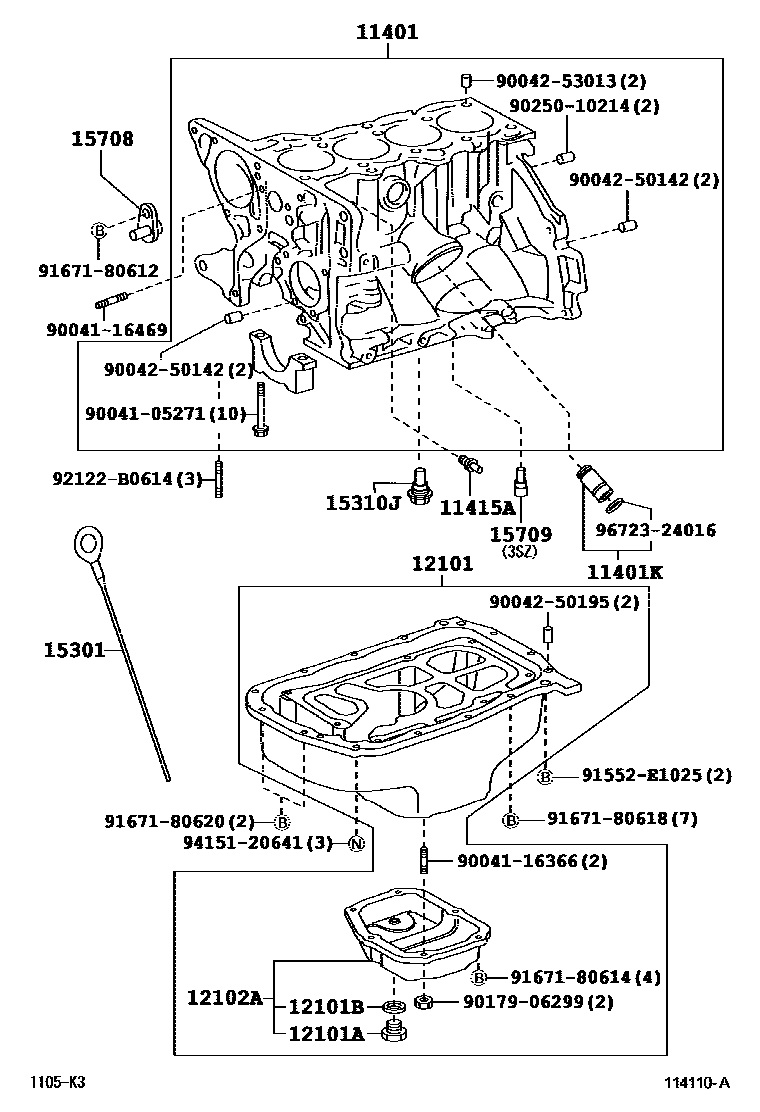

CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-97404iK3VE..QNC20,25200601-200605

main11401-B1020i3SZVE..QNC21200601-200808

main11401-B1020-10i3SZVE..QNC21200808-200809

.

main11401-B1031iK3VE..QNC25200809-201409

main11401-B1050iK3VE..QNC20,25200605-200809

main11401-B1150i3SZVE..QNC21200809

11401KUNION(FOR OIL FILTER BRACKET)

main90044-04120iK3VE,3SZVE..QNC20,21200809

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90048-08005iK3VE,3SZVE..QNC2#200601-200809

12101PAN SUB-ASSY, OIL

main12101-B1020iK3VE,3SZVE..QNC2#200601-200809

12101APLUG(FOR OIL PAN DRAIN)

main90043-41041iK3VE,3SZVE..QNC2#200601-200801

main90043-41087iK3VE,3SZVE..QNC2#200802-200809

main90341-12012iK3VE,3SZVE..QNC20,21200912

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90044-30281iK3VE,3SZVE..QNC20,21200809

12102APAN SUB-ASSY, OIL, NO.2

main12102-97401iK3VE,3SZVE..QNC2#200601-200809

15301GAGE SUB-ASSY, OIL LEVEL

main15301-B1020i3SZVE..QNC21200809

main15301-B1050iK3VE..QNC20200809

15310JREGULATOR ASSY, OIL

main15310-97401iK3VE,3SZVE..QNC2#200601-200809

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-97402iK3VE,3SZVE..QNC2#200601-200809

15709NOZZLE SUB-ASSY, OIL, NO.2

main15790-87201×4i3SZVE..QNC21200601-200808

main15790-B0010×4i3SZVE..QNC21201008

9004105271

main90041-05271

9004116366

main90041-16366

9004116469

main90041-16469

9004250142

main90042-50142

9004250195

main90042-50195

9004253013

main90042-53013

9017906299

main90179-06299

9025010214

main90250-10214

91552E1025

main91552-E1025

9167180612

main91671-80612

9167180614

main91671-80614

9167180618

main91671-80618

9167180620

main91671-80620

92122B0614

main92122-B0614

9415120641

main94151-20641

9672324016

main96723-24016

27 parts on this diagram · 1 diagram in section
