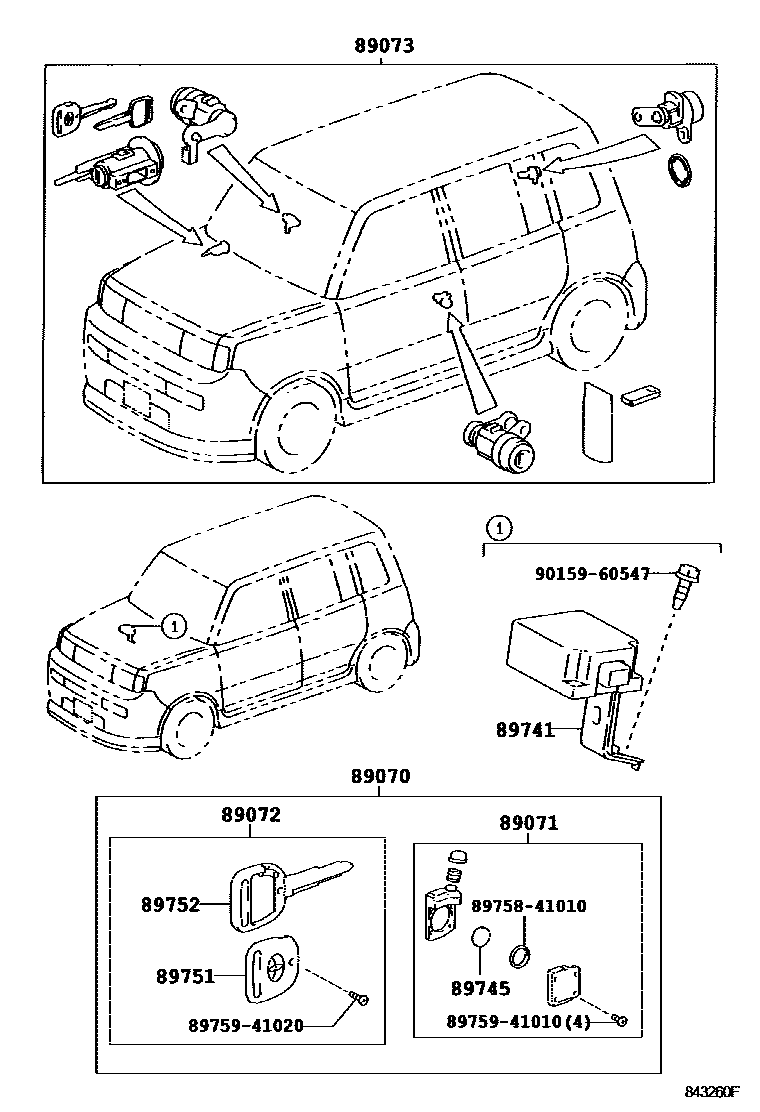

WIRELESS DOOR LOCK

0001 1 0002 1��(��������) 0003 1��(��������)

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-32080iNCP30,35..S; NCP31,35..Z200208-200304

main89070-52070iNCP30,35..S200206-200208

main89070-52380iNCP31,35..Z200208-200304

main89070-52400iNCP34200208-200303

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-32030iNCP30,35..S200208-200304

main89071-52010iNCP30,35..S200206-200208

main89071-52080iNCP31,35..Z200208-200512

89072HOUSING SET, DOOR CONTROL TRANSMITTER

main89072-47020iNCP30,35..S; NCP31,35..Z200208-200304

main89072-52070iNCP30,35..S200206-200208

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-52330iNCP3#200507-200512

main69005-52690iNCP30,35..S; NCP31,35..Z200208-200304

main69005-52700iNCP31,35..Z200208-200304

main69005-52A10iNCP3#200304-200512

main69005-52A20iNCP31,35..Z200304-200512

main69005-5C100iNCP3#200507-200512

main89073-52160iNCP31,35..Z200001-200208

main89073-52400iNCP34200208-200303

89741RECEIVER, DOOR CONTROL

main89741-52010iNCP31,34,35..NOG,Z200001-200208

main89741-52080iNCP30,31,35; NCP30,35..S200208-200304

main89741-52120iNCP3#200304-200512

main89741-52140iNCP34200208-200303

89745BATTERY, TRANSMITTER

main89745-41010iNCP31,34,35..NOG,Z200001-200208

89751COVER, TRANSMITTER HOUSING

main89751-44010iNCP30,35..S200208-200304

main89751-52060iNCP34200208-200303

89752CASE, TRANSMITTER HOUSING

main89752-46020iNCP30,35..S; NCP31,35..Z200208-200304

main89752-52240iNCP34200208-200303

8975841010PACKING, DOOR CONTROL TRANSMITTER

main89758-41010

8975941010SCREW, DOOR CONTROL TRANSMITTER

main89759-41010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9015960547

main90159-60547

12 parts on this diagram · 3 diagrams in section
