REAR COMBINATION LAMP

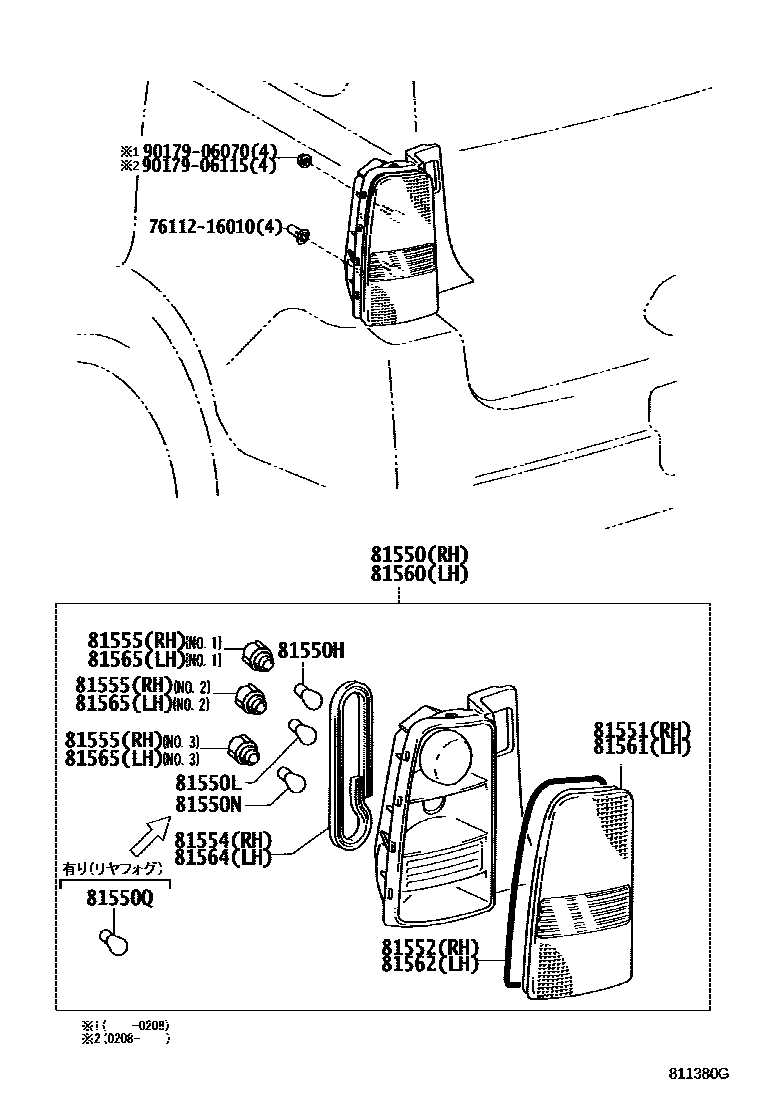

Parts diagram

81550LAMP ASSY, REAR COMBINATION, RH

main81550-52110i200001-200304

main81550-52120i200001-200304

main81550-52220i200106-200303

81550HBULB, TAIL & STOP LAMP

main90981-11043i200001-200208

main90981-11048i200208-200304

main90981-13044i200304-200512

main99132-21210i200106-200303

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15009i200106-200303

main90981-15011i200208-200512

main90981-15013i200001-200208

81550NBULB, BACK UP LAMP

main90981-11042i200001-200208

main90981-11042i200001-200208

main90981-13043i200208-200512

main90981-13043i200208-200512

main99132-11210i200106-200303

81550QBULB, REAR FOG LAMP, NO.1

main90981-11042i200001-200208

main90981-13043i200208-200512

81551LENS, REAR COMBINATION LAMP, RH

main81551-35130i200106-200303

main81551-52110i200001-200304

main81551-52120i200001-200304

main81557-52370i200304-200512

main81557-52440i200304-200512

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-52110i200001-200512

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-35130i200106-200303

main81554-52110i200001-200512

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-52110i200001-200512

main81565-52100i200001-200512

main81585-30290i200001-200512

81560LAMP ASSY, REAR COMBINATION, LH

main81560-52100i200001-200304

main81560-52200i200106-200303

81561LENS, REAR COMBINATION LAMP, LH

main81561-35130i200106-200303

main81561-52100i200001-200304

main81567-52350i200304-200512

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-52110i200001-200512

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-35130i200106-200303

main81554-52110i200001-200512

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-52110i200001-200512

main81565-52100i200001-200512

main81585-30290i200001-200512

7611216010

main76112-16010

9017906070

main90179-06070

9017906115

main90179-06115

17 parts on this diagram · 3 diagrams in section
