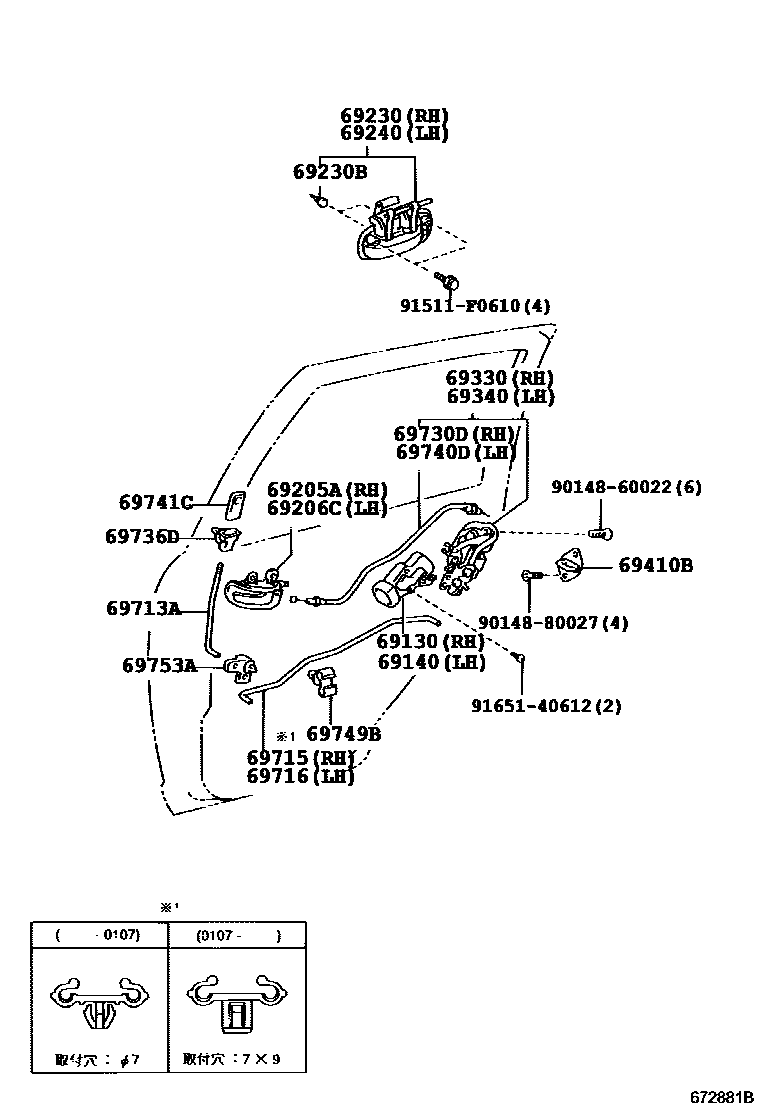

REAR DOOR LOCK & HANDLE

0001 1 0002 1 0003 1

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-52010iNCP30,31,35200001-200512

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-52010iNCP30,31,35200001-200512

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-52010-B3iNCP30,31,35200208-200512

DK.GRAY,TRIM9#

sub69205-52010

main69205-52010-C0iNCP30,31,35200001-200208

BLACK,TRIM92,93

sub69205-52010

main69205-52060iNCP31,35..Z200208-200304

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-52010-B2iNCP34200106-200208

LT.GRAY,TRIM96,97

sub69206-52010

main69206-52010-B2iNCP34200208-200303

LT.GRAY,TRIM16,17

sub69206-52010

main69206-52010-B3iNCP30,31,35200208-200512

DK.GRAY,TRIM9#

sub69206-52010

main69206-52010-C0iNCP30,31,35200001-200208

BLACK,TRIM92,93

sub69206-52010

main69206-52060iNCP31,35..Z200208-200304

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-20260-A0iNCP30,31,35200001-200108

SUPER WHITE 2,040

sub69230-20260

main69230-20260-A1iNCP30,31,35200208-200512

WHITE PEARL,064

sub69230-20260

main69230-20260-A1iNCP30,31,35200109-200112

sub69230-20260

main69230-20260-A2iNCP30,31,35200108-200512

WHITE,068

sub69230-20260

main69230-20260-B2iNCP30,31,35200001-200512

GRAY ME.,1D2

sub69230-20260

main69230-20260-B3iNCP30,31,35200106-200107

sub69230-20260

main69230-20260-B3iNCP3#200012-200101

sub69230-20260

main69230-20260-C0iNCP30,31,35200001-200304

BLACK,202

sub69230-20260

main69230-20260-C1iNCP3#200304-200512

BLACK MC.,209

sub69230-20260

main69230-20260-D1iNCP30,31,35200001-200304

BORDEAUX MC.,3P2

sub69230-20260

main69230-20260-D2iNCP3#200408

sub69230-20260

main69230-20260-E1iNCP30,31,35200208-200512

ORANGE ME.,4R8

sub69230-20260

main69230-20260-F0iNCP30,31,35200001-200208

YELLOW M.M.,584

sub69230-20260

main69230-20260-G3iNCP30,31,35200208-200512

DK.GRAYISH OLIVE ME,6M7

sub69230-20260

main69230-20260-H0iNCP3#200101-200103

sub69230-20260

main69230-20260-J2iNCP30,31,35200001-200304

BLUE MC.,8M6

sub69230-20260

main69230-20260-J4iNCP30,31,35200208-200512

DARK BLUE MC.,8P8

sub69230-20260

main69230-52060iNCP31,35..Z200208-200304

main69230-52060iNCP31,35..Z200201-200207

main69230-52060iNCP31,35..Z200404

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018iNCP30,31,35200001-200512

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-20260-A0iNCP30,31,35200001-200108

SUPER WHITE 2,040

sub69240-20260

main69240-20260-A1iNCP30,31,35200208-200512

WHITE PEARL,064

sub69240-20260

main69240-20260-A1iNCP30,31,35200109-200112

sub69240-20260

main69240-20260-A2iNCP30,31,35200108-200512

WHITE,068

sub69240-20260

main69240-20260-B2iNCP30,31,35200001-200512

GRAY ME.,1D2

sub69240-20260

main69240-20260-B3iNCP3#200012-200101

sub69240-20260

main69240-20260-B3iNCP30,31,35200106-200107

sub69240-20260

main69240-20260-C0iNCP30,31,35200001-200304

BLACK,202

sub69240-20260

main69240-20260-C1iNCP3#200304-200512

BLACK MC.,209

sub69240-20260

main69240-20260-D1iNCP30,31,35200001-200304

BORDEAUX MC.,3P2

sub69240-20260

main69240-20260-D2iNCP3#200408

sub69240-20260

main69240-20260-E1iNCP30,31,35200208-200512

ORANGE ME.,4R8

sub69240-20260

main69240-20260-F0iNCP30,31,35200001-200208

YELLOW M.M.,584

sub69240-20260

main69240-20260-G3iNCP30,31,35200208-200512

DK.GRAYISH OLIVE ME,6M7

sub69240-20260

main69240-20260-H0iNCP3#200101-200103

sub69240-20260

main69240-20260-J2iNCP30,31,35200001-200304

BLUE MC.,8M6

sub69240-20260

main69240-20260-J4iNCP30,31,35200208-200512

DARK BLUE MC.,8P8

sub69240-20260

main69240-52060iNCP31,35..Z200201-200207

main69240-52060iNCP31,35..Z200404

main69240-52060iNCP31,35..Z200208-200304

69330LOCK ASSY, REAR DOOR, RH

main69330-52040iNCP30,31,35200001-200208

sub69330-52041

main69330-52041iNCP30,31,35200208-200512

69340LOCK ASSY, REAR DOOR, LH

main69340-52040iNCP30,31,35200001-200208

sub69340-52041

main69340-52041iNCP30,31,35200208-200512

main69340-52120iNCP34200106-200303

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-47010iNCP30,31,35200001-200512

main69410-52020iNCP34200106-200303

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-52020iNCP30,31,35200001-200512

69715LINK, REAR DOOR LOCKING CONTROL, NO.2 RH

main69715-52030iNCP30,31,35200001-200512

69716LINK, REAR DOOR LOCKING CONTROL, NO.2 LH

main69716-52030iNCP30,31,35200001-200512

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-52020iNCP30,31,35200001-200512

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-12130iNCP30,31,35200001-200512

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-52020iNCP30,31,35200001-200512

main69730-52040iNCP34200106-200303

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-87003-B8iNCP30,31,35200208-200512

DK.GRAY,TRIM9#

sub69741-87003

main69741-87003-P0iNCP30,31,35200001-200208

SHADOW GRAY,TRIM92,93

sub69741-87003

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12030iNCP30,31,35200001-200107

main69749-32040iNCP30,31,35200107-200512

69753ABELLCRANK, DOOR LOCK CONTROL

main69753-10010iNCP30,31,35200001-200512

9014860022

main90148-60022

9014880027

main90148-80027

91511F0610

main91511-F0610

9165140612

main91651-40612

23 parts on this diagram · 3 diagrams in section
