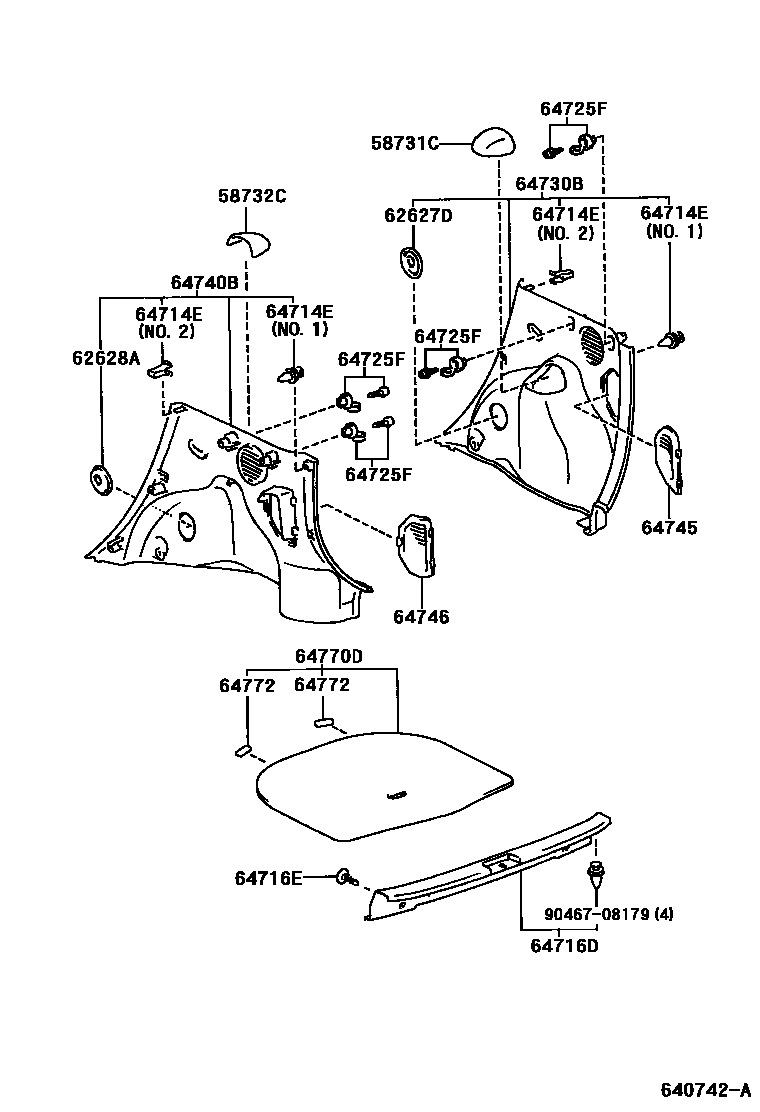

Toyota BB/OPEN DECK — DECK BOARD & DECK TRIM COVER

58731CCAP, REAR ABSORBER

58732CCAP, REAR ABSORBER

62627DCOVER, SIDE TRIM, RH

62628ACOVER, SIDE TRIM, LH

64714ECLIP(FOR DECK TRIM SIDE COVER)

64716DCOVER, DECK TRIM, REAR

64716ECLIP(FOR DECK TRIM REAR COVER)

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

64730BPANEL ASSY, DECK TRIM SIDE, RH

64740BBOARD, DECK TRIM SIDE, LH

64745COVER, REAR COMBINATION LAMP SERVICE, RH

64745-52030

64746COVER, REAR COMBINATION LAMP SERVICE, LH

64746-52030

64770DCOVER ASSY, SPARE WHEEL

64772PAD, SPARE WHEEL COVER

64772-16100

9046708179

90467-08179

15 parts on this diagram · 3 diagrams in section

DECK BOARD & DECK TRIM COVER for Toyota BB/OPEN DECK

This section contains 33 genuine Toyota parts for the DECK BOARD & DECK TRIM COVER system of the Toyota BB/OPEN DECK. Key components include: REAR SPRING & SHOCK ABSORBER, BOARD, DECK, NO.1, STRIKER ASSY, LUGGAGE HOLD BELT, HOOK, DECK BOARD, CAP, REAR ABSORBER.
