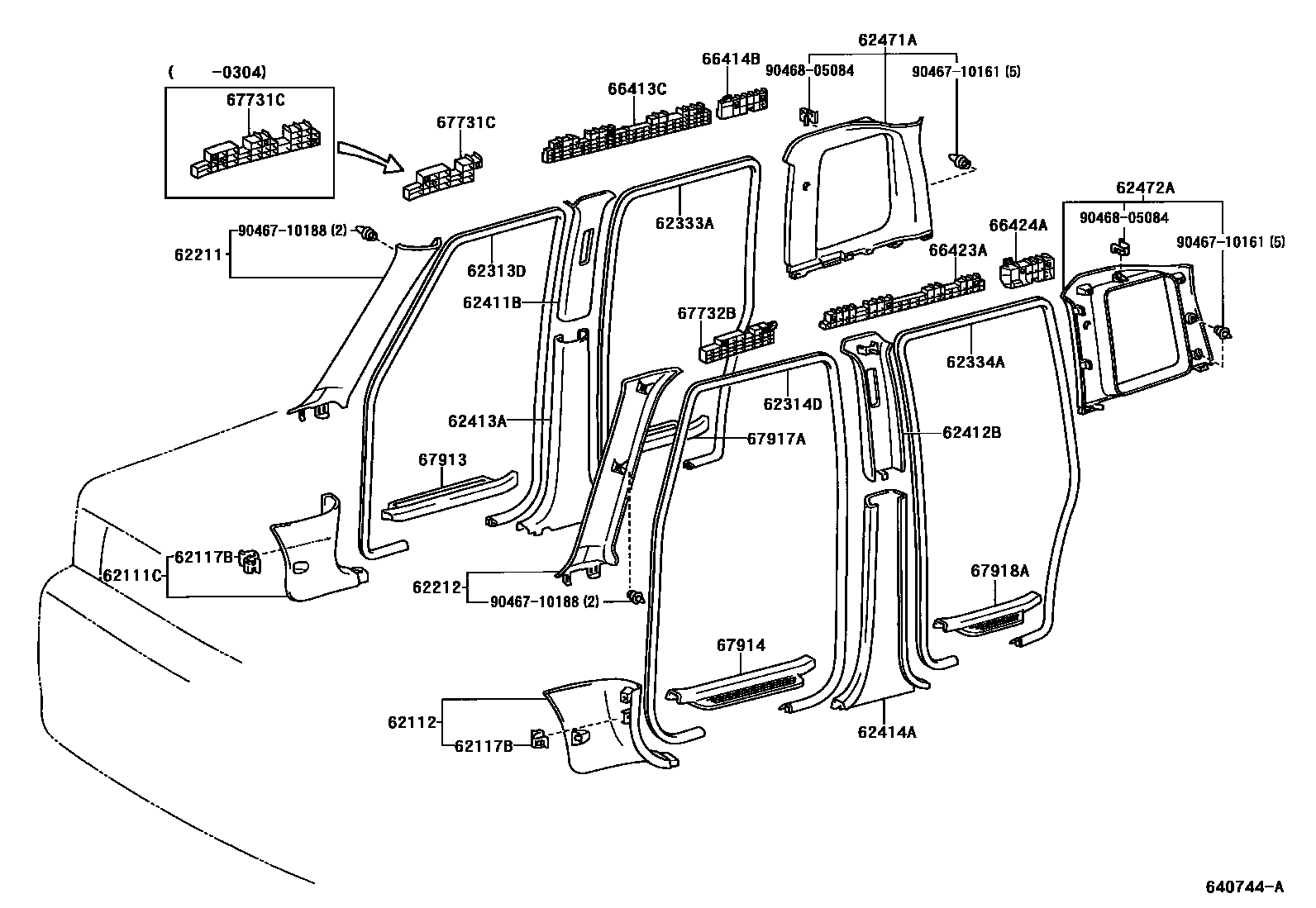

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-52050-B0iNCP30,31,35200001-200208

DK.GRAY,TRIM92,93

main62111-52050-B1iNCP34200208-200303

LT.GRAY,TRIM16,17

62112BOARD, COWL SIDE TRIM, LH

main62112-52070-B0iNCP30,31,35200208-200512

DK.GRAY,TRIM9#

main62112-52070-B1iNCP34200106-200208

LT.GRAY,TRIM96,97

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90468-05112×2iNCP3#200001-200208

62211GARNISH, FRONT PILLAR, RH

main62211-52030-B0iNCP34200106-200208

LT.GRAY,TRIM96,97

main62211-52110-B0iNCP3#200304-200512

LT.GRAY,TRIM9#

62212GARNISH, FRONT PILLAR, LH

main62212-52030-B0iNCP30,31,35200001-200208

LT.GRAY,TRIM92,93

main62212-52110-B0iNCP3#200304-200512

LT.GRAY,TRIM9#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-52050-C0iNCP3#200001-200003

BLACK,TRIM92,93

main62313-52051-B0iNCP34200106-200208

LT.GRAY,TRIM96,97

main62313-52051-C0iNCP30,31,35200208-200512

BLACK,TRIM9#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-52050-C0iNCP3#200001-200003

BLACK,TRIM92,93

main62314-52051-C0iNCP30,31,35200208-200512

BLACK,TRIM9#

main62314-52080-B0iNCP34200208-200303

LT.GRAY,TRIM16,17

62333ATRIM, REAR DOOR OPENING, RH

main62333-52030-C0iNCP30,31,35200001-200208

BLACK,TRIM92,93

62334ATRIM, REAR DOOR OPENING, LH

main62334-52030-C0iNCP30,31,35200001-200208

BLACK,TRIM92,93

main62334-52070-B0iNCP34200208-200303

LT.GRAY,TRIM16,17

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-52010-B0iNCP3#200304-200512

LT. GRAY,TRIM9#

main62411-52030-B0iNCP30,31,35200001-200208

LT.GRAY,TRIM92,93

main62411-52040-B0iNCP34200106-200208

LT. GRAY,TRIM96,97

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-52030-B0iNCP30,31,35200001-200208

LT.GRAY,TRIM92,93

main62420-52010-B0iNCP3#200304-200512

LT. GRAY,TRIM9#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-52030-B0iNCP30,31,35200001-200208

DK.GRAY,TRIM92,93

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-52030-B0iNCP30,31,35200001-200208

DK.GRAY,TRIM92,93

62471AGARNISH, ROOF SIDE, INNER RH

main62471-52040-B0iNCP30,31,35200208-200512

LT.GRAY,TRIM9#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-52040-B0iNCP30,31,35200001-200208

LT.GRAY,TRIM92,93

66413CSPACER, SIDE RAIL, FRONT RH

main66413-52040iNCP34200208-200303

main66413-52060iNCP30,31,35200208-200512

main66413-52151iNCP3#200304-200512

66414BSPACER, SIDE RAIL, REAR RH

main66414-52090iNCP30,31,35200001-200208

main66414-52160iNCP3#200304-200512

66423ASPACER, SIDE RAIL, FRONT LH

main66423-52060iNCP30,31,35200001-200208

main66423-52131iNCP3#200304-200512

66424ASPACER, SIDE RAIL, REAR LH

main66424-52090iNCP30,31,35200208-200512

main66424-52150iNCP3#200304-200512

67731CSPACER, SIDE TRIM, NO.1

main67731-52020iNCP3#200001-200208

main67731-52040iNCP3#200304

67732BSPACER, SIDE TRIM, NO.2

main67732-52020iNCP3#200001-200208

67913PLATE, FRONT DOOR SCUFF, RH

main67913-52040-B0iNCP30,31,35200001-200208

DK.GRAY,TRIM92,93

main67913-52040-B1iNCP34200106-200208

LT.GRAY,TRIM96,97

67914PLATE, FRONT DOOR SCUFF, LH

main67914-52040-B0iNCP30,31,35200001-200208

DK.GRAY,TRIM92,93

main67914-52060-B0iNCP34200106-200208

LT.GRAY,TRIM96,97

67917APLATE, REAR DOOR SCUFF, RH

main67917-52030-B0iNCP30,31,35200208-200512

DK.GRAY,TRIM9#

67918APLATE, REAR DOOR SCUFF, LH

main67918-52030-B0iNCP30,31,35200001-200208

DK.GRAY,TRIM92,93

main67918-52040-B0iNCP34200106-200208

LT.GRAY,TRIM96,97

9046710161

main90467-10161

9046710188

main90467-10188

9046805084

main90468-05084

28 parts on this diagram · 2 diagrams in section
