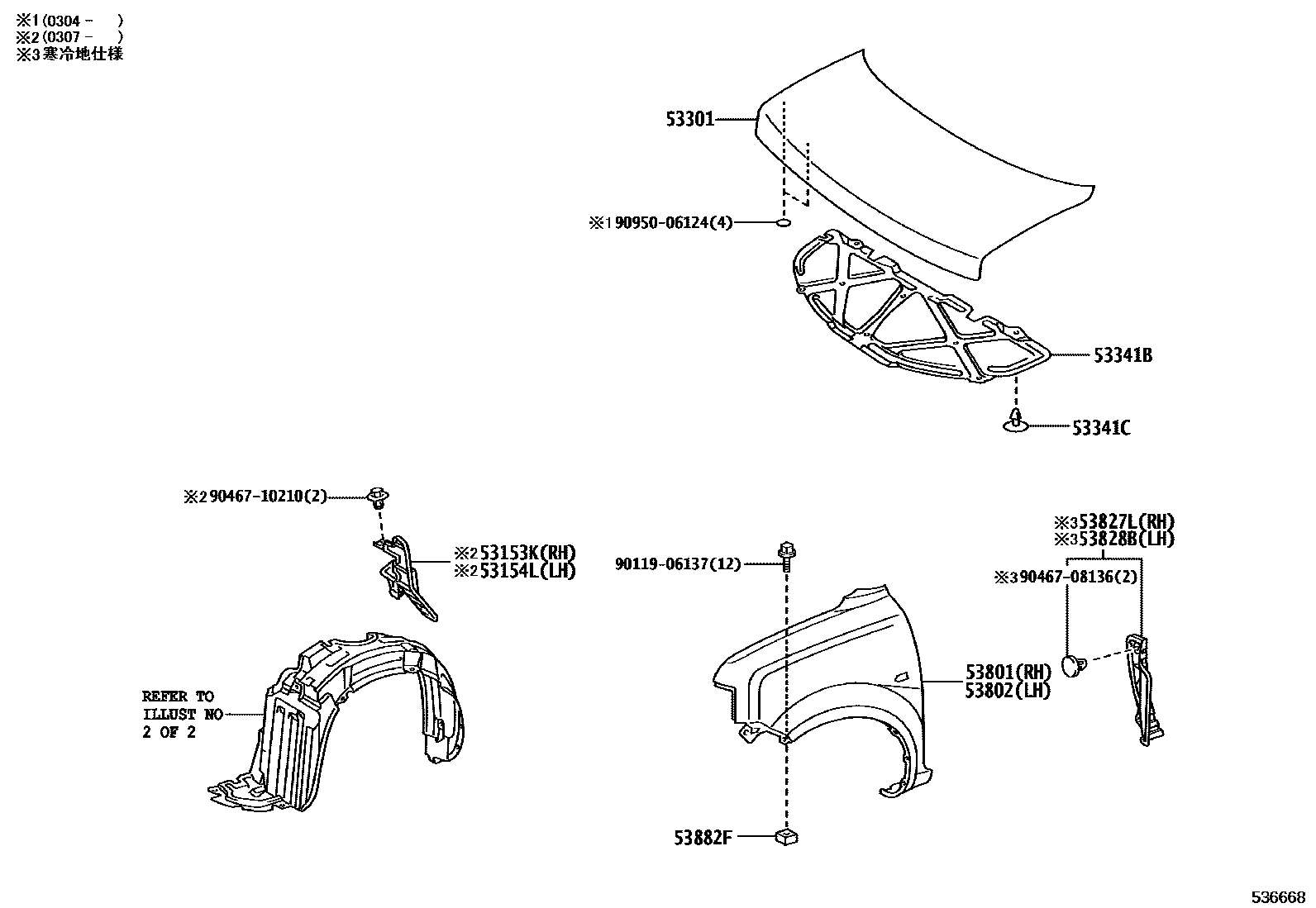

HOOD & FRONT FENDER

0001 1 0002 1��������

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-52010iNCP3#200307-200512

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-52010iNCP3#200307-200512

53301HOOD SUB-ASSY

main53301-52070iNCP3#200001-200208

main53301-52170iNCP3#200304-200512

53341BINSULATOR, HOOD

main53341-52030iNCP3#200001-200208

main53341-52031iNCP3#200303-200508

main53341-52032iNCP3#200509-200512

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×8iNCP3#200001-200205

main90467-09050×8iNCP3#200205-200208

53801FENDER SUB-ASSY, FRONT RH

main53811-52040iNCP30,31,35200001-200208

main53811-52080iNCP3#200001-200208

53802FENDER SUB-ASSY, FRONT LH

main53812-52060iNCP30,31,35200001-200208

main53812-52080iNCP3#200208-200512

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52030iNCP3#200001-200105

main53827-52031iNCP3#200208-200304

main53827-52032iNCP3#200304-200512

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52030iNCP3#200001-200105

main53828-52031iNCP3#200105-200208

main53828-52032iNCP3#200304-200512

53882FSEAL, FRONT FENDER

main53882-16030×2iNCP3#200001-200208

9011906137

main90119-06137

9046708136

main90467-08136

9046710210

main90467-10210

9095006124

main90950-06124

14 parts on this diagram · 2 diagrams in section
