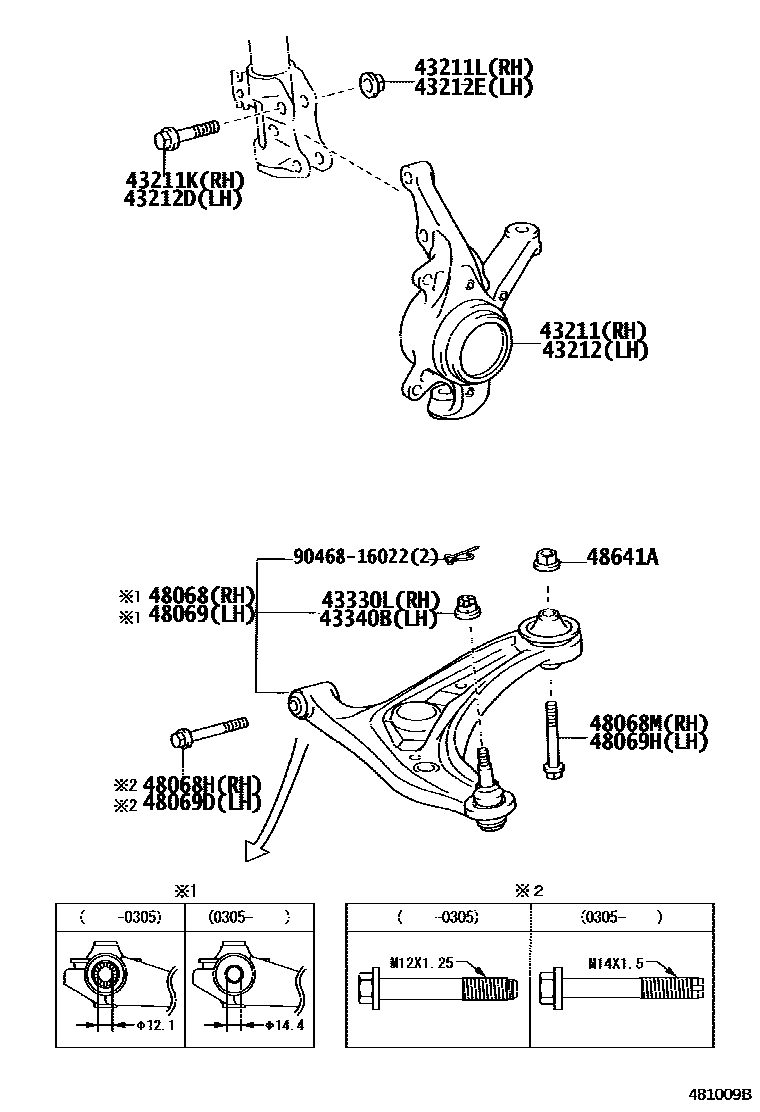

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52020iNCP30,31,34200001-200512

main43211-52030iNCP35200001-200512

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-14140iNCP3#200001-200512

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-14062iNCP3#200001-200512

43212KNUCKLE, STEERING, LH

main43212-52020iNCP30,31,34200001-200512

main43212-52030iNCP35200001-200512

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-14140iNCP3#200001-200512

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-14062iNCP3#200001-200512

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNCP3#200001-200512

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNCP3#200001-200512

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19176iNCP3#200001-200305

main48068-59065iNCP3#200305-200512

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-12338iNCP3#200001-200305

main90119-14086iNCP3#200305-200512

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-12337iNCP3#200001-200512

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19156iNCP3#200001-200305

main48069-59065iNCP3#200305-200512

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-12338iNCP3#200001-200305

main90119-14086iNCP3#200305-200512

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-12337iNCP3#200001-200512

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90178-12009iNCP3#200001-200512

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
