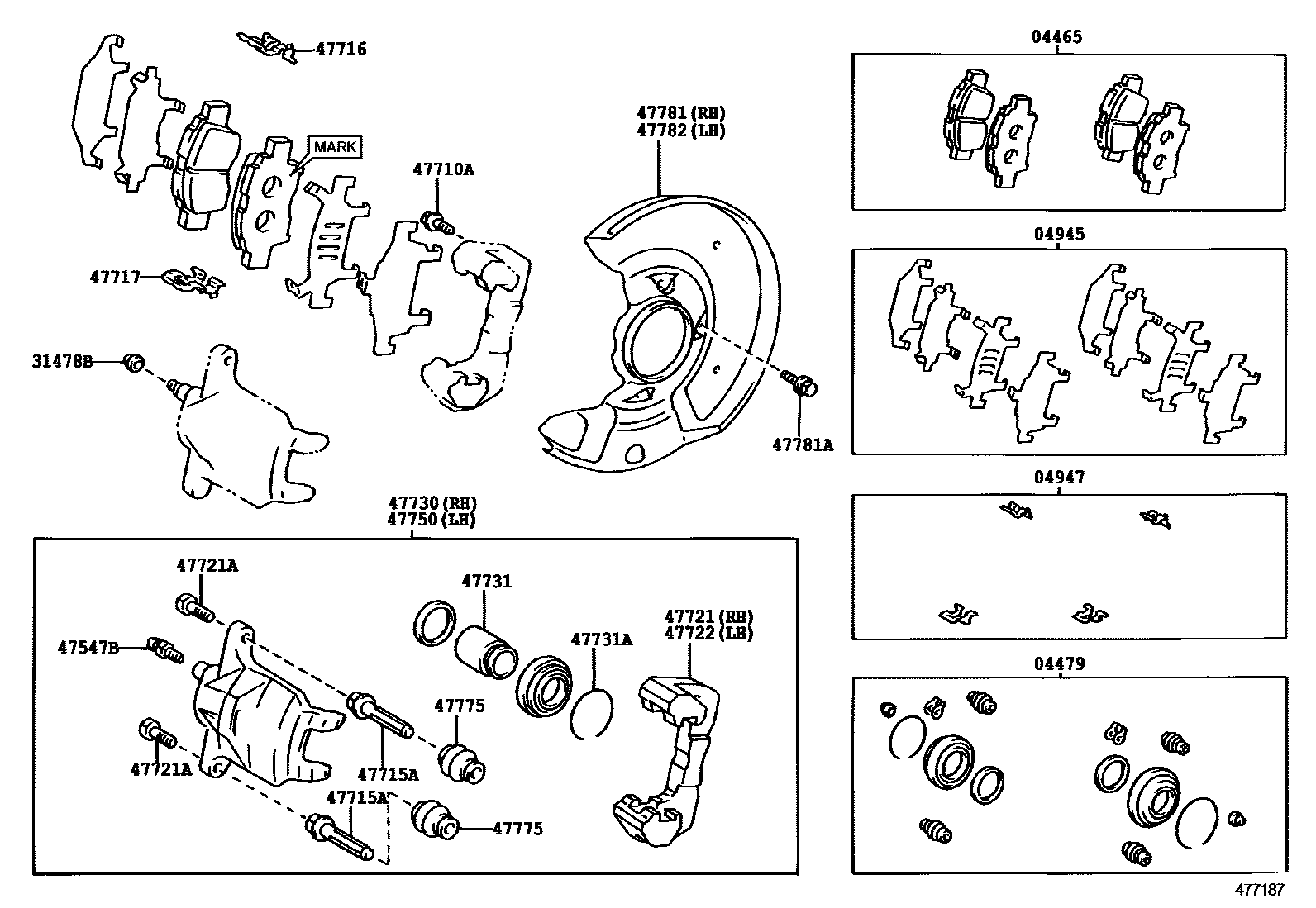

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1��(VSC)

04465PAD KIT, DISC BRAKE, FRONT

main04465-52021iNCP3#200001-200104

main04465-52022iNCP3#200104-200208

main04465-52170iNCP31200305-200409

main04465-52210iNCP31200409-200512

main04465-52230iNCP3#200501-200512

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-47020iNCP31200305-200512

main04479-52020iNCP3#200208-200512

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNCP3#200001-200104

main04945-52060iNCP31200409-200512

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47010iNCP31200305-200512

main04947-52010iNCP3#200208-200512

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iNCP3#200001-200208

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iNCP3#200001-200208

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12314×4iNCP3#200001-200208

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010×4iNCP3#200001-200208

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-12070×2iNCP31200305-200512

main47716-52020×2iNCP3#200001-200208

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-12030×2iNCP31200305-200512

main47717-52020×2iNCP3#200208-200512

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52020iNCP3#200001-200208

main47721-52170iNCP31200305-200512

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iNCP3#200001-200208

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52020iNCP3#200001-200208

main47722-52170iNCP31200305-200512

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52020iNCP3#200001-200208

main47730-52170iNCP31200305-200512

47731PISTON, FRONT DISC BRAKE

main47731-12170×2iNCP31200305-200512

main47731-52010×2iNCP3#200001-200208

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003×2iNCP3#200001-200208

main90522-66001×2iNCP31200305-200512

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52020iNCP3#200001-200208

main47750-52170iNCP31200305-200512

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52010×4iNCP3#200001-200208

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52020iNCP3#200001-200208

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iNCP3#200001-200208

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52020iNCP3#200001-200208

21 parts on this diagram · 2 diagrams in section
