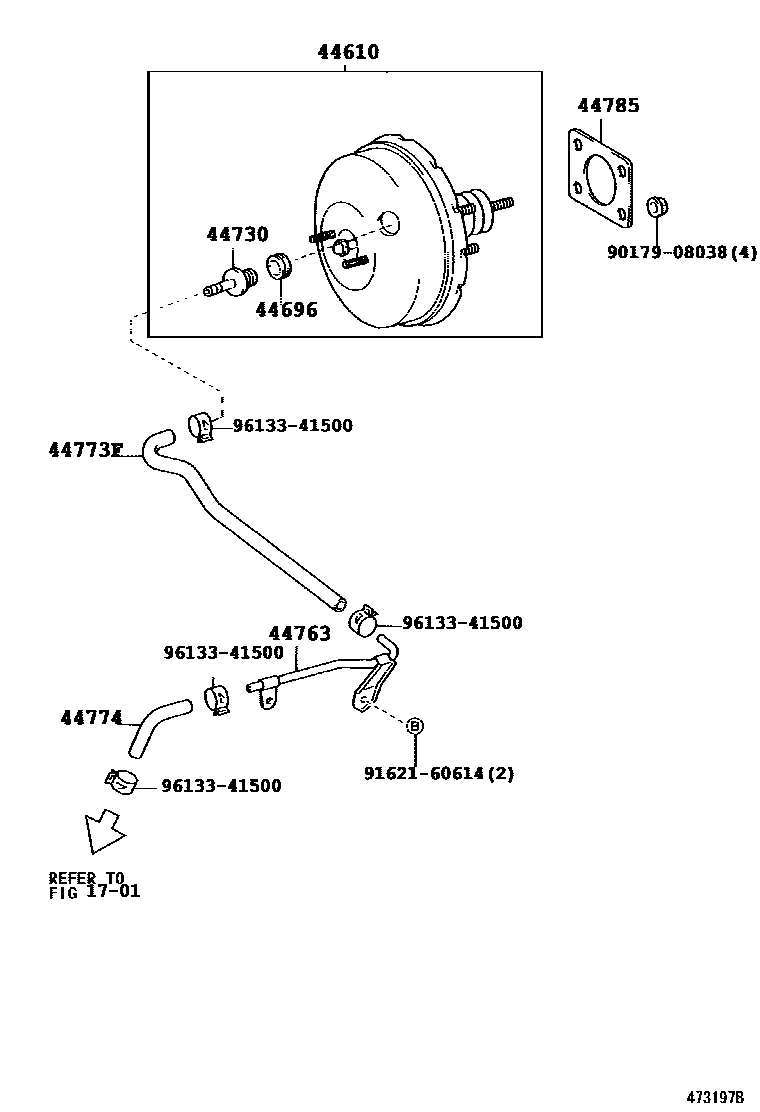

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-52090iNCP3#200001-200208

main44610-52091iNCP3#200308-200512

main44610-52350iNCP31200304-200410

main44610-52351iNCP31200411-200512

44696GROMMET, CHECK VALVE

main90480-24015iNCP3#200001-200208

main90480-24439iNCP31200304-200512

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP31200304-200512

main44730-28030iNCP3#200305-200512

main44730-30010iNCP3#200208-200304

44763TUBE, BOOSTER VACUUM

main44763-52010iNCP3#200001-200208

44773FHOSE, UNION TO CHECK VALVE

main44773-52020iNCP3#200001-200208

main44773-52080iNCP3#200208-200512

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP3#200001-200208

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP3#200001-200208

9017908038

main90179-08038

9162160614

main91621-60614

9613341500

main96133-41500

11 parts on this diagram · 1 diagram in section
