TRANSFER ASSEMBLY & GASKET KIT

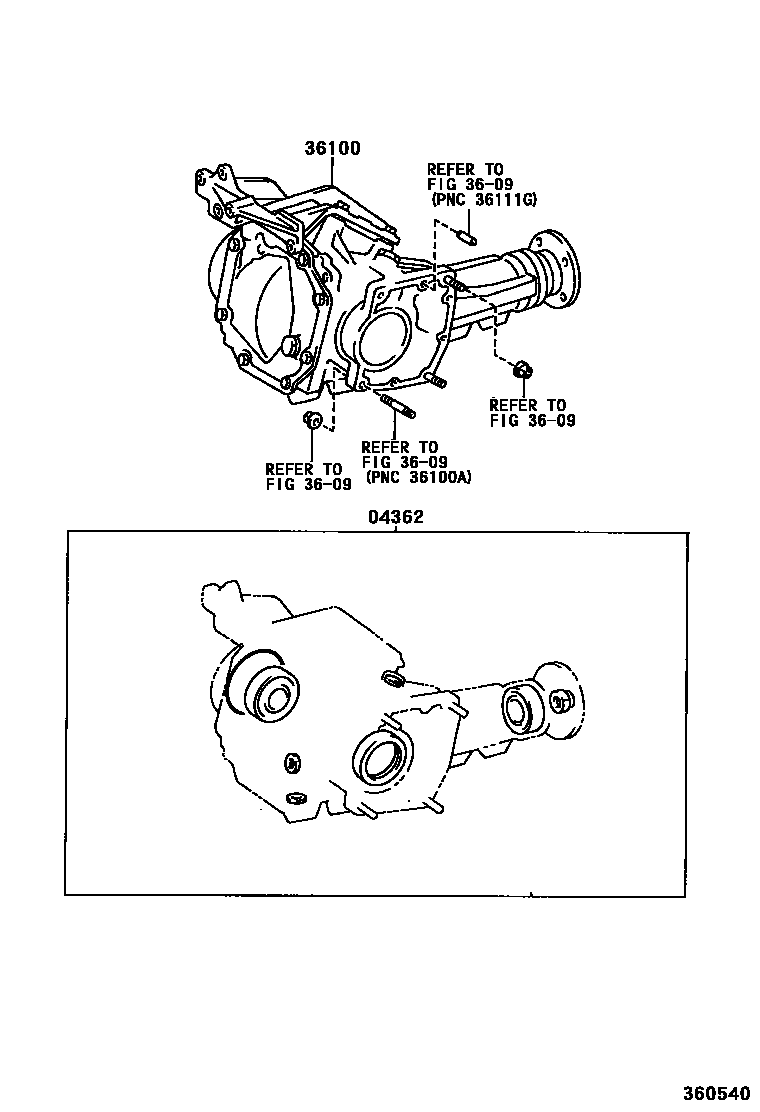

Parts diagram
04362GASKET KIT, TRANSFER OVERHAUL
main04362-52010i200001-200409
sub04362-52011
main04362-52040i200409-200512
sub04362-52011
3609
36100TRANSFER ASSY
main36100-52010i200001-200512
sub36100-52012

3 parts on this diagram · 1 diagram in section
