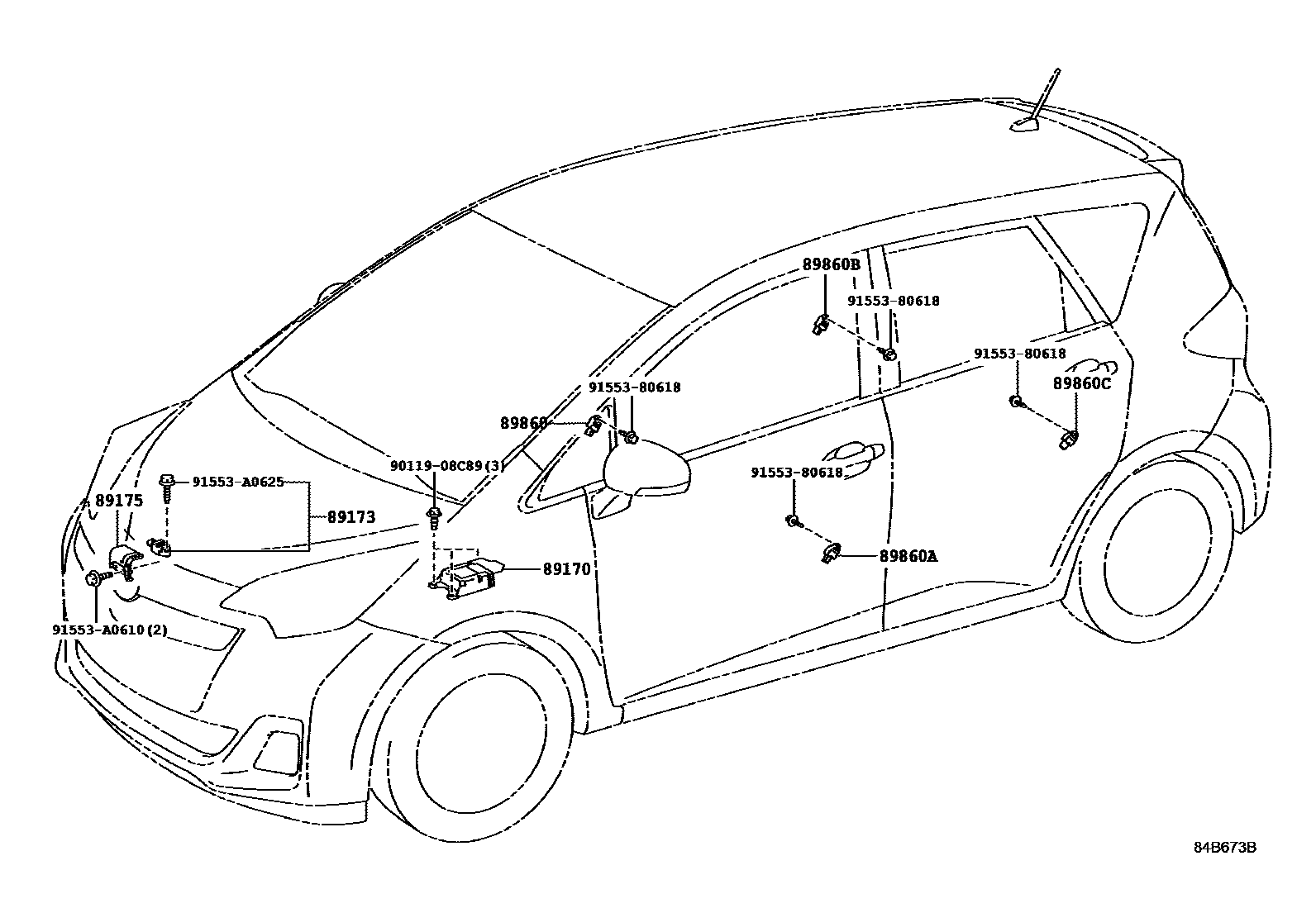

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-52E80supersedes 89170-52J20iNCP12#,NSP12#; NCP125;NCP120..G;NSP120..X; NSP120..G201405

main89170-52E90iNCP12#,NSP12#; NSP120..G; NSP120..X;NCP125..G,X;NCP120,122..G201011-201109

main89170-52J20iNCP120..G,X; NCP120..S; NSP120..G,X201208-201310

main89170-52L40iNSP120..X201111-201208

89173SENSOR, AIRBAG, FRONT

main89173-59265iNCP12#,NSP12#201011-201109

main89173-79015iNCP12#,NSP12#201109-201208

89175BRACKET, AIRBAG SENSOR

main89175-52020iNCP12#,NSP12#201011-201405

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-52020iNCP12#,NSP12#; NSP120..G; NSP120..X;NCP125..G,X;NCP120,122..G201011-201109

main89831-52090iNSP120..X201111-201208

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-52020iNCP12#,NSP12#; NCP125;NSP120..X;NCP120,122..G; NSP120..G201405

main89831-52090iNCP12#,NSP12#; NCP125..G,X;NCP120,122..G; NSP120..G201109-201208

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-52020iNCP12#,NSP12#; NSP120..G; NSP120..X;NCP125..G,X;NCP120,122..G201208-201405

main89831-52090iNSP120..X201111-201208

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-52020iNCP12#,NSP12#; NSP120..G; NSP120..X;NCP125..G,X;NCP120,122..G201011-201109

main89831-52090iNCP12#,NSP12#; NCP125..G,X;NCP120,122..G; NSP120..G201109-201208

9011908C89

main90119-08C89

9155380618

main91553-80618

91553A0610

main91553-A0610

91553A0625

main91553-A0625

11 parts on this diagram · 1 diagram in section
