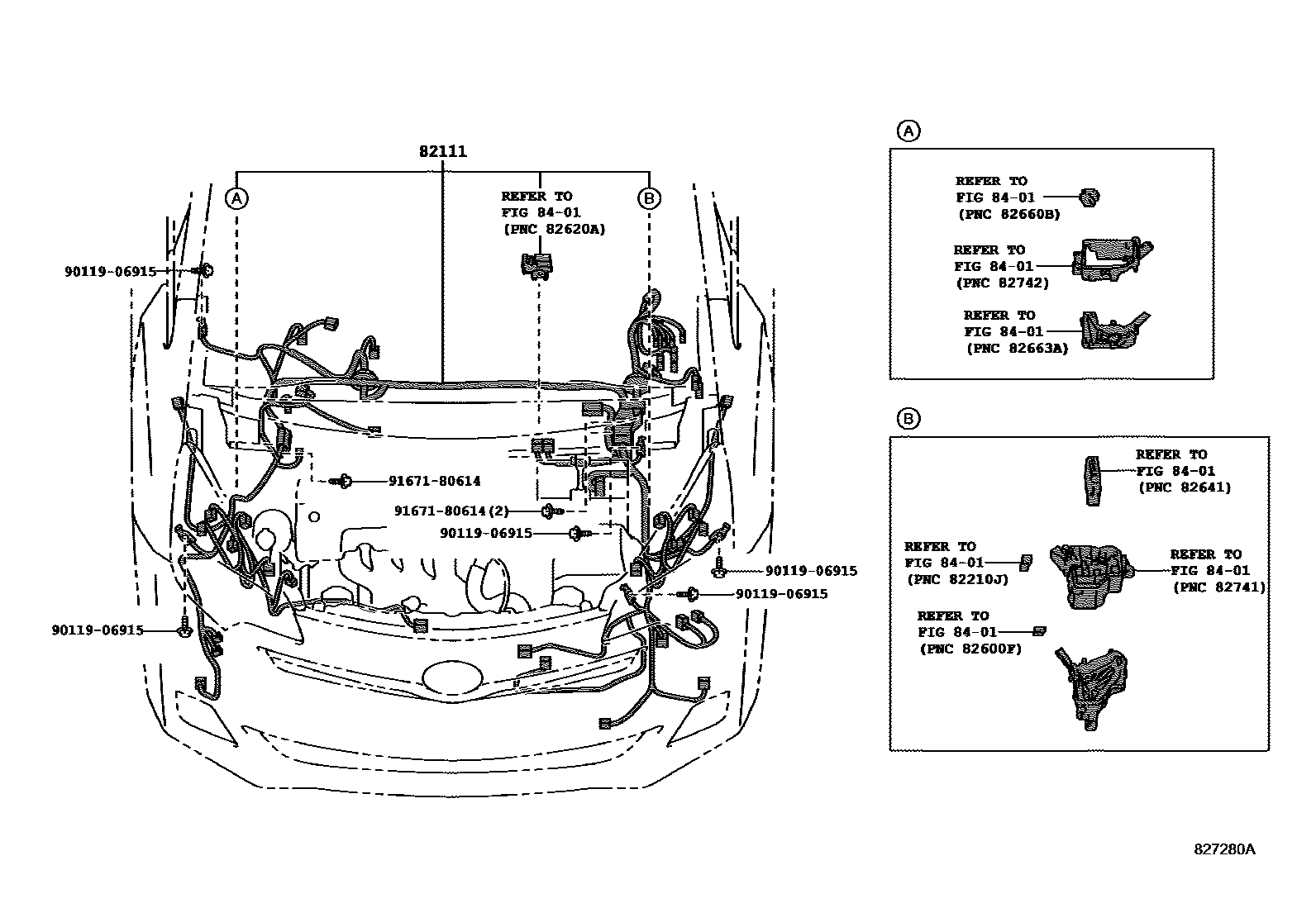

82111WIRE, ENGINE ROOM MAIN

main82111-52Z91supersedes 82111-52Y72iNCP120..G; NCP120..S201310-201405

main82111-5CD30iNSP122201011-201208

main82111-5CD31iNSP122201208-201310

main82111-5CD32iNSP122201310-201405

main82111-5CD33iNSP122201405

main82111-5CL00iNCP120,125..LEPIC,X201011-201208

main82111-5CL10supersedes 82111-52Y70iNCP120..G; NCP120..S;NCP125..G201011-201208

main82111-5CL50iNCP122201011-201208

main82111-5CL51iNCP122201208-201310

main82111-5CL52iNCP122201310-201405

main82111-5CL53iNCP122201405

main82111-5DC80iNCP120..G; NCP120..S201405

main82111-52Z40iNSP120..G201011-201111

main82111-52Z41iNSP120..G201111-201208

main82111-52Z42supersedes 82111-52Y91iNSP120..G201208-201310

main82111-52Z43supersedes 82111-52Y92iNSP120..G201310-201405

main82111-52Z70supersedes 82111-52Y80iNSP120..LEPIC,X201011-201208

main82111-52Z71supersedes 82111-52Y81iNSP120..LEPIC,X201208-201310

main82111-52Z72supersedes 82111-52Y82iNSP120..LEPIC,X201310-201405

main82111-52Z80supersedes 82111-52Y90iNSP120..G201011-201208

main82111-52Z81supersedes 82111-52Y91iNSP120..G201208-201310

main82111-52Z82supersedes 82111-52Y92iNSP120..G201310-201405

main82111-52Z90iNCP120..S201011-201208

main82111-5CA20iNSP120..LEPIC,X201011-201112

main82111-5CA21iNSP120..LEPIC,X201112-201208

main82111-5CA22supersedes 82111-52Y81iNSP120..LEPIC,X201208-201310

main82111-5CA23supersedes 82111-52Y82iNSP120..LEPIC,X201310-201405

main82111-5CA30iNSP120..G201011-201205

main82111-5CA31iNSP120..G201205-201208

main82111-5CA32supersedes 82111-52Y91iNSP120..G201208-201310

main82111-5CA33supersedes 82111-52Y92iNSP120..G201310-201405

main82111-5CA40iNCP120..S201011-201112

main82111-5CA41iNCP120..S201112-201208

main82111-5CA42supersedes 82111-52Y72iNCP120..G; NCP120..G,S201310-201405

main82111-5CL20iNCP120,125..LEPIC,X201011-201112

main82111-5CL21iNCP120,125..LEPIC,X201112-201208

main82111-5CL22supersedes 82111-5CL01iNCP125..LEPIC,X201208-201310

main82111-5CL23supersedes 82111-5CL02iNCP125..LEPIC,X201310-201405

main82111-5CL30iNCP120,125..G,S; NCP120..G201011-201112

main82111-5CL31iNCP120,125..G,S; NCP120..G201112-201208

main82111-5CL32supersedes 82111-5CL11iNCP125..G201208-201310

main82111-5CL33supersedes 82111-5CL12iNCP125..G201310-201405

main82111-5CU00iNSP120..LEPIC,X201111-201208

main82111-5CU01iNSP120..X201208-201310

main82111-5CU02supersedes 82111-52Y82iNSP120..LEPIC,X201310-201405

main82111-5CU10iNSP120..LEPIC,X201111-201208

main82111-5CU11iNSP120..X201208-201310

main82111-5CU12supersedes 82111-52Y82iNSP120..LEPIC,X201310-201405

main82111-5CU20iNSP120..LEPIC201111-201208

main82111-5CU21iNSP120..LEPIC201208-201310

main82111-5CU22iNSP120..LEPIC201310-201405

main82111-5CU30iNSP120..LEPIC201111-201208

main82111-5CU31iNSP120..LEPIC201208-201310

main82111-5CU32iNSP120..LEPIC201310-201405

main82111-5CU40iNSP120..LEPIC201111-201208

main82111-5CU41iNSP120..LEPIC201208-201307

main82111-5CU42iNSP120..LEPIC201310-201405

main82111-5CU50iNSP120..G201111-201208

main82111-5CU51supersedes 82111-52Y91iNSP120..G201208-201310

main82111-5CU60iNSP120..LEPIC201111-201208

main82111-5CU61iNSP120..LEPIC201208-201307

main82111-5CU62iNSP120..LEPIC201310-201405

main82111-5CU70iNSP120..G201111-201208

main82111-5CU71supersedes 82111-52Y91iNSP120..G201208-201310

main82111-5CU80iNCP120,125..LEPIC201111-201208

main82111-5CU81iNCP125..LEPIC201208-201310

main82111-5CU82iNCP125..LEPIC201310-201405

main82111-5CU90iNCP120,125..LEPIC201111-201208

main82111-5CU91iNCP125..LEPIC201208-201310

main82111-5CU92iNCP125..LEPIC201310-201405

main82111-5CV60iNCP120..LEPIC201208-201307

main82111-5CV61iNCP120..LEPIC201310-201405

main82111-5CV70supersedes 82111-52Y71iNCP120..G; NCP120..G,S201208-201310

main82111-5CV90iNCP120..LEPIC201208-201307

main82111-5CV91supersedes 82111-5CV81iNCP120..LEPIC,X201310-201405

main82111-5CW00supersedes 82111-52Y71iNCP120..G; NCP120..S201208-201310

main82111-5CW10supersedes 82111-5CV80iNCP120..LEPIC,X201208-201310

main82111-5CW11supersedes 82111-5CV81iNCP120..LEPIC,X201310-201405

main82111-5CW20iNCP120..LEPIC201208-201307

main82111-5CW21supersedes 82111-5CV81iNCP120..LEPIC,X201310-201405

main82111-5CW30supersedes 82111-52Y71iNCP120..G; NCP120..G,S201208-201310

main82111-5CW40iNCP120..G; NCP120..G,S201310-201405

main82111-5CW50iNCP120..LEPIC201208-201310

main82111-5CW51iNCP120..LEPIC201310-201405

main82111-5CW60iNCP120..LEPIC201208-201307

main82111-5CW61iNCP120..LEPIC201310-201405

main82111-5CW70iNCP120..LEPIC201208-201310

main82111-5CW71iNCP120..LEPIC201310-201405

main82111-5CW80iNCP120..LEPIC201208-201307

main82111-5CW81iNCP120..LEPIC201310-201405

main82111-5DA60supersedes 82111-5DA50iNCP125..X201405

main82111-5DA80supersedes 82111-5DA70iNCP120..X201405

main82111-5DA90supersedes 82111-5DA70iNCP120..X201405

main82111-5DB00supersedes 82111-5DA70iNCP120..X201405

main82111-5DB20supersedes 82111-5DB10iNSP120..X201405

main82111-5DB40supersedes 82111-5DB10iNSP120..X201405

main82111-5DB50supersedes 82111-5DB10iNSP120..X201405

main82111-5DB70supersedes 82111-5DB60iNCP125..G201405

main82111-5DB80supersedes 82111-52Y73iNCP120..G; NCP120..G,S201405

main82111-5DB90supersedes 82111-52Y73iNCP120..G; NCP120..G,S201405

main82111-5DC00supersedes 82111-52Y73iNCP120..G; NCP120..G,S201405

main82111-5DC20supersedes 82111-5DC10iNSP120..G201405

main82111-5DC50supersedes 82111-5DC10iNSP120..G201405

main82111-5DC60supersedes 82111-5DC10iNSP120..G201405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9167180614

main91671-80614

4 parts on this diagram · 15 diagrams in section
