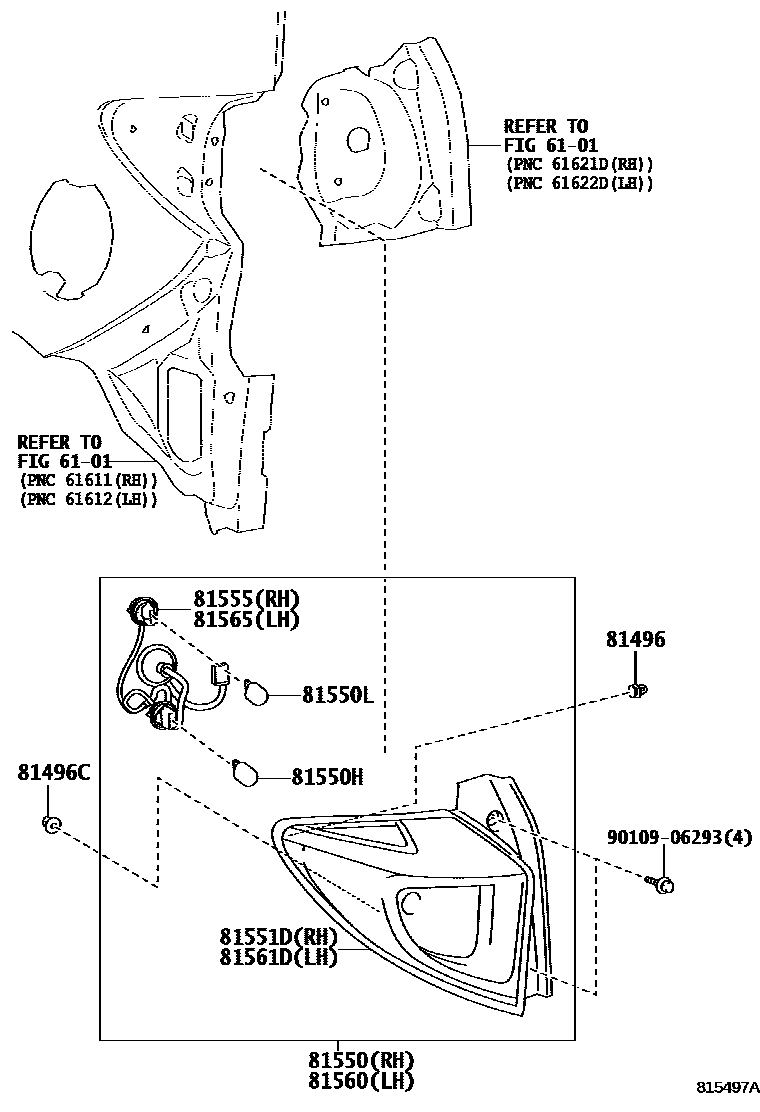

REAR COMBINATION LAMP

0001 1 0002 1LED 0003 1LED

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iNCP12#,NSP12#201011-201405

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2iNCP12#,NSP12#201011-201405

81550LAMP ASSY, REAR COMBINATION, RH

main81550-52660iNSP12#..G,X201011-201405

main81550-52A00iNCP12#..G,X201011-201405

main81550-52A20iNCP120,125..LEPIC,S201011-201405

main81550-52A30iNSP120..LEPIC201011-201405

main81550-52C70iNCP12#,NSP12#201405

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iNSP12#201011-201405

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iNCP12#,NSP12#201011-201405

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52660iNSP12#..G,X201011-201405

main81551-52A00iNCP12#..G,X201011-201405

main81551-52A20iNCP120,125..LEPIC,S201011-201405

main81551-52A30iNSP120..LEPIC201011-201405

main81551-52C70iNCP12#,NSP12#201405

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-52660iNSP12#201011-201405

main81555-52A00iNCP12#201011-201405

main81555-52C70iNCP12#,NSP12#201405

81560LAMP ASSY, REAR COMBINATION, LH

main81560-52730iNSP12#..G,X201011-201405

main81560-52840iNCP12#..G,X201011-201405

main81560-52860iNCP120,125..LEPIC,S201011-201405

main81560-52870iNSP120..LEPIC201011-201405

main81560-52C70iNCP12#,NSP12#201405

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52730iNSP12#..G,X201011-201405

main81561-52840iNCP12#..G,X201011-201405

main81561-52860iNCP120,125..LEPIC,S201011-201405

main81561-52870iNSP120..LEPIC201011-201405

main81561-52C70iNCP12#,NSP12#201405

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-52660iNSP12#201011-201405

main81555-52A00iNCP12#201011-201405

main81555-52C70iNCP12#,NSP12#201405

9010906293

main90109-06293

12 parts on this diagram · 3 diagrams in section
