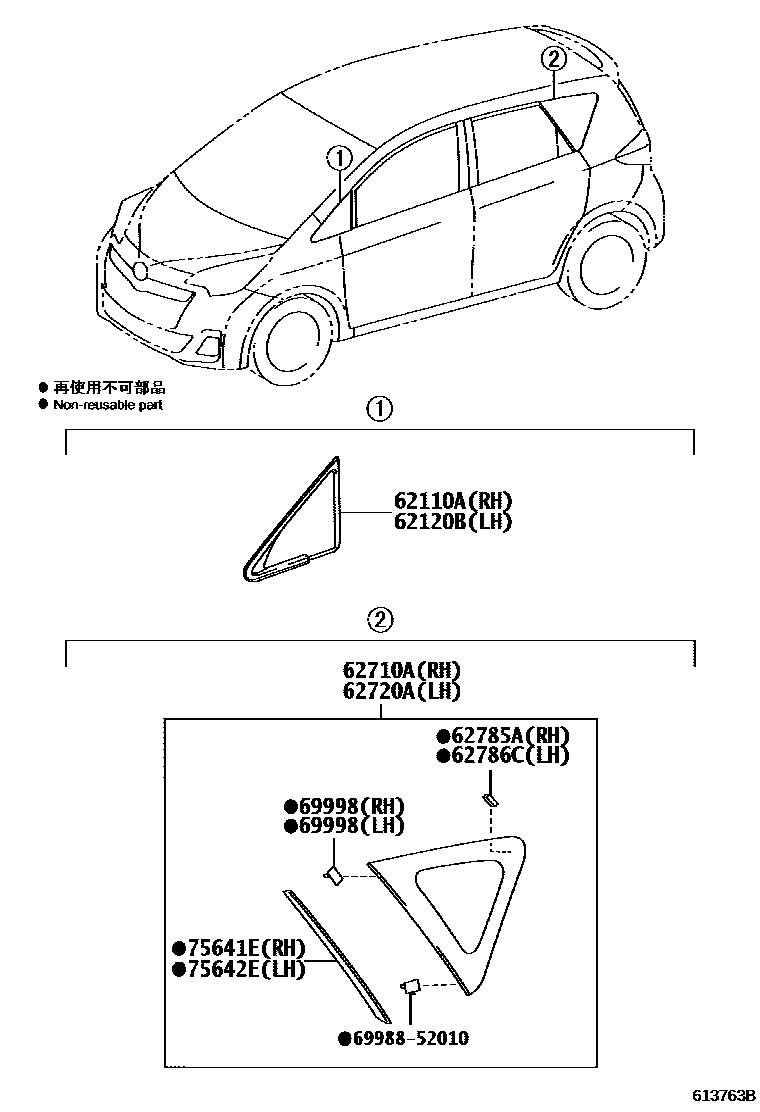

QUARTER WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-52040iNCP12#,NSP12#201011-201207

main62110-52041iNCP12#,NSP12#201208-201405

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-52040iNCP12#,NSP12#201011-201207

main62120-52041iNCP12#,NSP12#201208-201405

62710AWINDOW ASSY, QUARTER, RH

main62710-52220iNCP12#,NSP12#201405

main62710-52180iNCP125..X201011-201405

62720AWINDOW ASSY, QUARTER, LH

main62720-52220iNCP12#,NSP12#201405

main62720-52180iNSP120..X201111-201405

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030iNCP12#,NSP12#201405

62786CSPACER, QUARTER WINDOW GLASS, LH

main62785-16030iNCP12#,NSP12#201011-201405

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-52050iNCP12#,NSP12#201405

main69999-52020iNCP12#,NSP12#201011-201405

75641EMOULDING, QUARTER WINDOW, RH

main75641-52050iNCP12#,NSP12#201011-201405

75642EMOULDING, QUARTER WINDOW, LH

main75642-52040iNCP12#,NSP12#201011-201405

6998852010SPACER, QUARTER WINDOW GLASS

main69988-52010

10 parts on this diagram · 1 diagram in section
