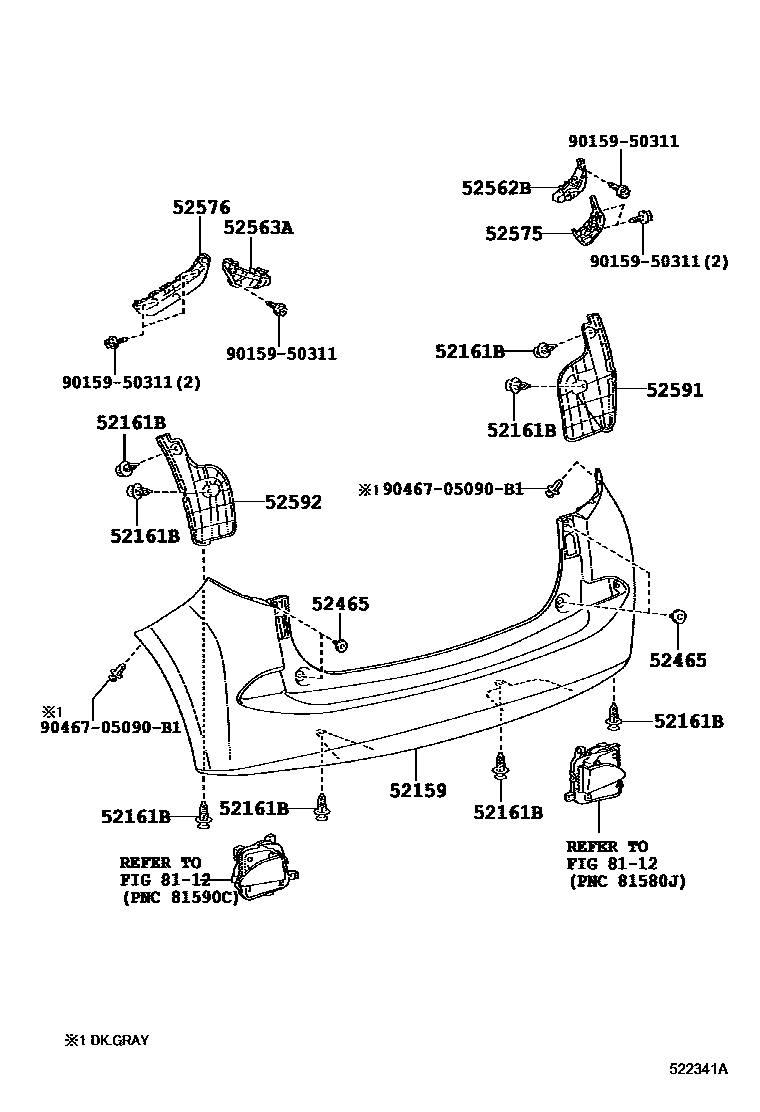

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52159COVER, REAR BUMPER

main52159-52730iNCP120..S201405-201607

main52159-52730-A1iNCP120,125,NSP120201405-201607

WHITE PEARL CS.,070

main52159-52730-B0iNCP120,125,NSP120201011-201209

SILVER ME.,1F7

main52159-52730-C0iNCP120,125,NSP120201405-201607

BLACK MC.,209

main52159-52730-D0iNCP120,125,NSP120..G,X201405-201607

SUPER RED 5,3P0

main52159-52730-D1iNCP120,125,NSP120..G,LEPIC,X201111-201208

ROSE ME.OP.,3P3

main52159-52730-E0iNCP120,125,NSP120201011-201111

DK. BROWN M.M.,4U3

main52159-52730-E1iNCP120,125,NSP120..G,X201405-201607

BRONZE M.M.,4T3

main52159-52730-H0iNCP120,125,NSP120..G,LEPIC,X201111-201405

TURQUOISE ME.,777

main52159-52730-J0iNCP120,125,NSP120201011-201209

LT.BLUE M.M.,8S7

main52159-52730-J1iNCP120,125,NSP120201011-201211

SATIN BLUE M.M.,8V9

main52159-52730-K0iNCP120,125,NSP120201405-201607

DEEP AMETHYST M.M.,9AH

main52159-52830-A1iNCP120,125,NSP120201209-201405

WHITE PEARL CS.,070

main52159-52830-B0iNCP120,125,NSP120201209-201405

SILVER ME.,1F7

main52159-52830-C0iNCP120,125,NSP120201209-201405

BLACK MC.,209

main52159-52830-D0iNCP120,125,NSP120..G,LEPIC,X201209-201405

SUPER RED 5,3P0

main52159-52830-J1iNCP120,125,NSP120201209-201405

LT.BLUE M.M.,8S7

main52159-52830-J2iNCP120,125,NSP120201211-201405

SATIN BLUE M.M.,8V9

main52159-52830-K0iNCP120,125,NSP120201211-201405

DEEP AMETHYST M.M.,9AH

52161BPIECE, REAR BUMPER

main52161-16010×8iNCP120,125,NSP120; NCP122,NSP122201011-201405

52465CUSHION, REAR BUMPER, NO.1

main52461-52020×4iNCP120,125,NSP120201405

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-52050iNCP12#,NSP12#201011-201405

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-52020iNCP12#,NSP12#201011-201405

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52120iNCP12#,NSP12#201011-201405

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52100iNCP12#,NSP12#201011-201405

52591SEAL, REAR BUMPER SIDE, RH

main52591-52290iNCP12#,NSP12#201011-201405

52592SEAL, REAR BUMPER SIDE, LH

main52592-52280iNCP12#,NSP12#201011-201405

8112BACK UP LAMP

→ Go to FIG 81-12

9015950311

main90159-50311

9046705090B1

main90467-05090B1

12 parts on this diagram · 2 diagrams in section
