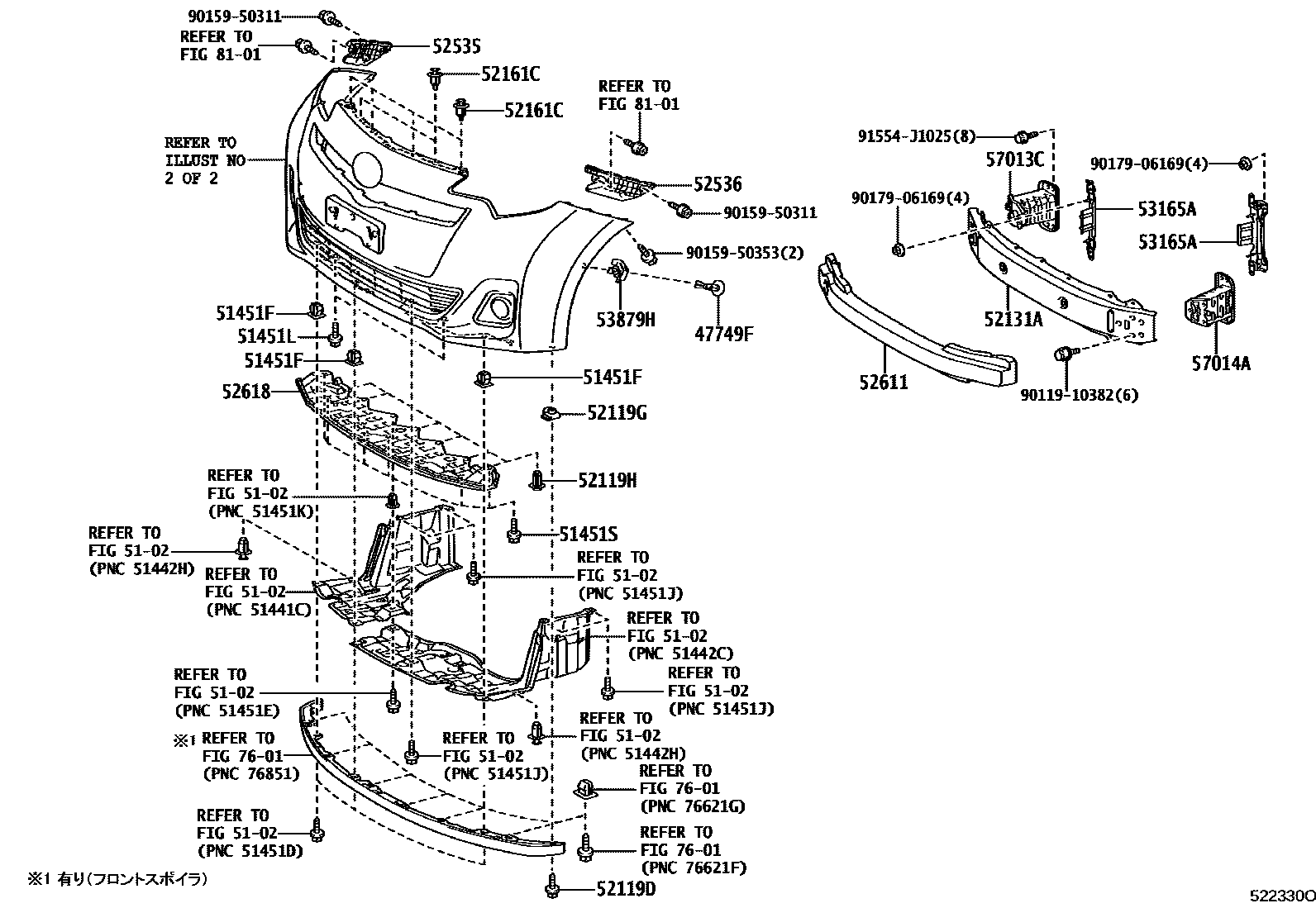

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-50090iNCP12#,NSP12#201402-201607

main47749-58010iNCP12#,NSP12#201011-201402

5102

51451FGROMMET, NO.1

main90189-06193iNCP12#,NSP12#201011-201108

main90189-06237iNCP12#,NSP12#201109-201607

51451LBOLT, NO.1

main90119-06767iNCP12#,NSP12#201011-201607

51451SBOLT, NO.2

main90119-06767iNCP12#,NSP12#201011-201607

52119DSCREW, NO.1

main90159-60352iNCP120,122,NSP122201011-201607

main90159-60590iNCP125201011-201607

52119GCLIP, NO.1

main90467-05114iNCP12#,NSP12#201011-201607

52119HCLIP, NO.2

main90467-10216iNCP12#,NSP12#201011-201607

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250iNCP12#,NSP12#201011-201405

52161CPIECE, FRONT BUMPER

main52161-16010iNCP12#,NSP12#201011-201405

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52100iNCP12#,NSP12#201011-201405

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52070iNCP12#,NSP12#201011-201405

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52090iNCP12#,NSP12#201011-201107

main52611-52091iNCP12#,NSP12#201108-201405

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52040iNCP12#,NSP12#201011-201405

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52060iNCP12#,NSP12#201011-201405

53879HRETAINER, FRONT FENDER LINER

main53879-50020iNCP12#,NSP12#201403-201405

main53879-58010iNCP12#,NSP12#201011-201402

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-52010iNCP12#,NSP12#201011-201207

sub57013-52011

main57013-52011iNCP12#,NSP12#201208-201405

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-52010iNCP12#,NSP12#201011-201405

7601

8101

9011910382

main90119-10382

9015950311

main90159-50311

9015950353

main90159-50353

9017906169

main90179-06169

91554J1025

main91554-J1025

25 parts on this diagram · 4 diagrams in section
