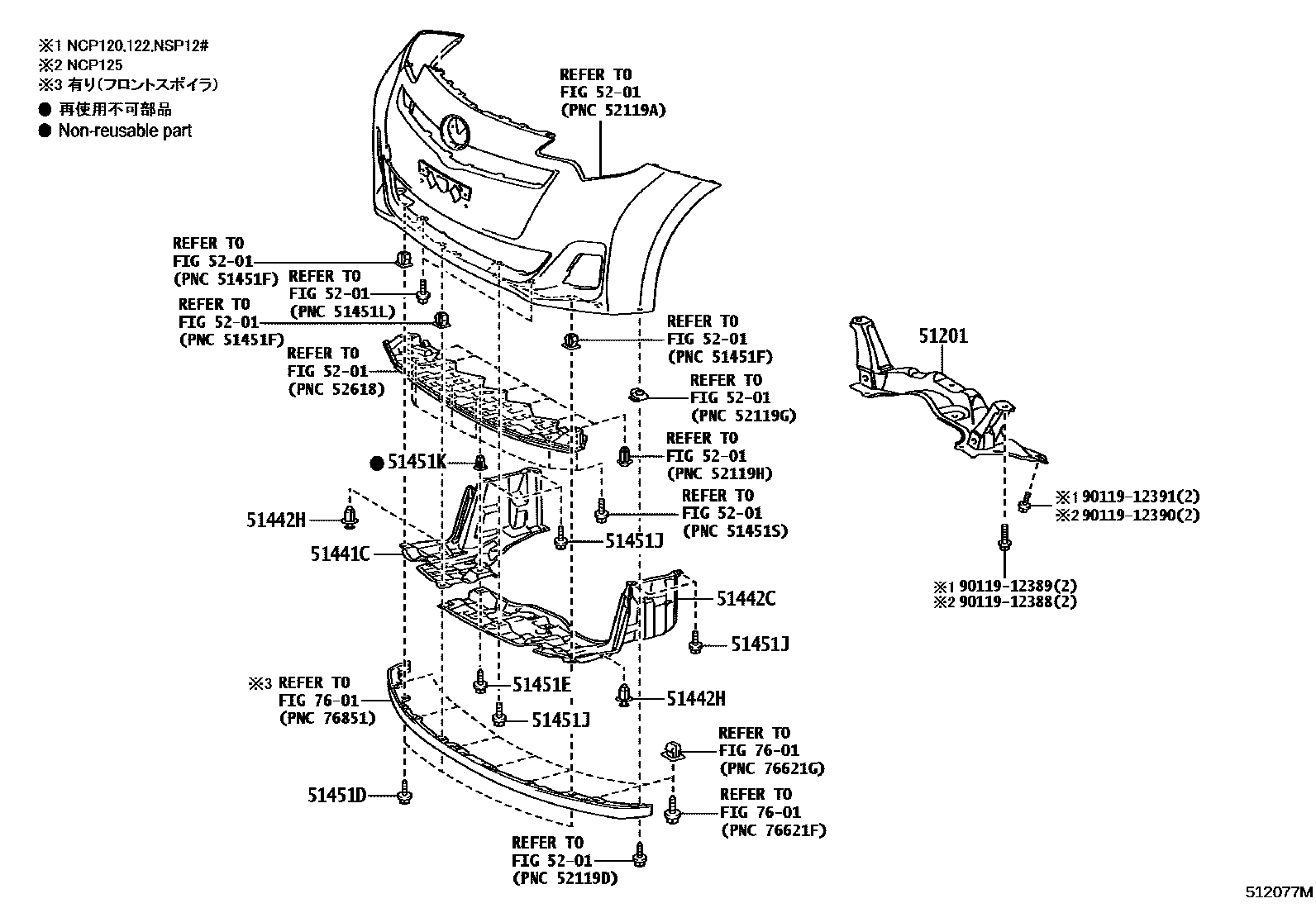

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52080iNCP120,122,NSP12#201011-201102

main51201-52083iNCP120,122,NSP12#201102-201112

main51201-52084iNCP120,122,NSP12#201201-201204

main51201-52085iNCP120,122,NSP12#201205-201206

main51201-52086iNCP120,122,NSP12#201206-201210

main51201-52087iNCP120,122,NSP12#201211-201607

main51201-52100iNCP125201011-201102

main51201-52103iNCP125201102-201112

main51201-52104iNCP125201201-201204

main51201-52105iNCP125201205-201206

main51201-52106iNCP125201206-201210

main51201-52107iNCP125201211-201607

51441CCOVER, ENGINE UNDER, RH

main51441-52180iNCP12#,NSP12#201011-201405

51442CCOVER, ENGINE UNDER, LH

main51442-52090iNCP12#,NSP12#201011-201405

51442HCLIP, ENGINE UNDER COVER, NO.2

main90467-10216iNCP12#,NSP12#201011-201405

51451DSCREW, NO.1

main90159-60383iNCP12#,NSP12#201011-201607

51451ESCREW, NO.2

main90159-60383iNCP12#,NSP12#201011-201607

51451JBOLT, NO.1

main90119-06767iNCP12#,NSP12#201011-201607

51451KGROMMET, SCREW, NO.1

main90189-06076iNCP12#,NSP12#201011-201607

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9011912388

main90119-12388

9011912389

main90119-12389

9011912390

main90119-12390

9011912391

main90119-12391

14 parts on this diagram · 1 diagram in section
