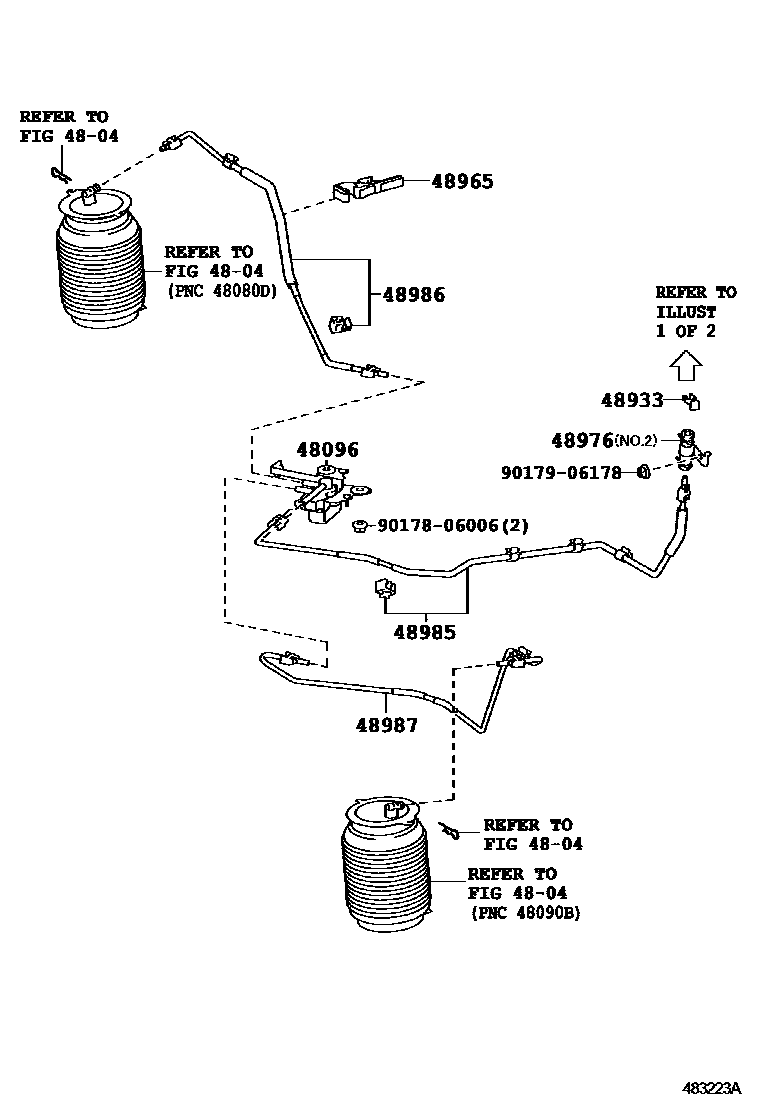

HEIGHT CONTROL (AUTO-LEVELER)

0001 1 0002 1

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2

main48096-52020iNCP122,NSP122201011-201405

48933HOLDER, AIR CONNECTOR CLIP

main48933-30010×3iNCP122,NSP122201011-201405

48965CLAMP, HEIGHT CONTROL TUBE

main48965-52010iNCP122,NSP122201011-201405

48976WAY, HEIGHT CONTROL

main48976-48030iNCP122,NSP122201011-201405

main48976-52010iNCP122,NSP122201011-201405

48985TUBE, HEIGHT CONTROL, NO.5

main48985-52020iNCP122,NSP122201011-201405

48986TUBE, HEIGHT CONTROL, NO.6

main48986-52020iNCP122,NSP122201011-201405

48987TUBE, HEIGHT CONTROL, NO.7

main48987-52020iNCP122,NSP122201011-201405

9017806006

main90178-06006

9017906178

main90179-06178

10 parts on this diagram · 2 diagrams in section
