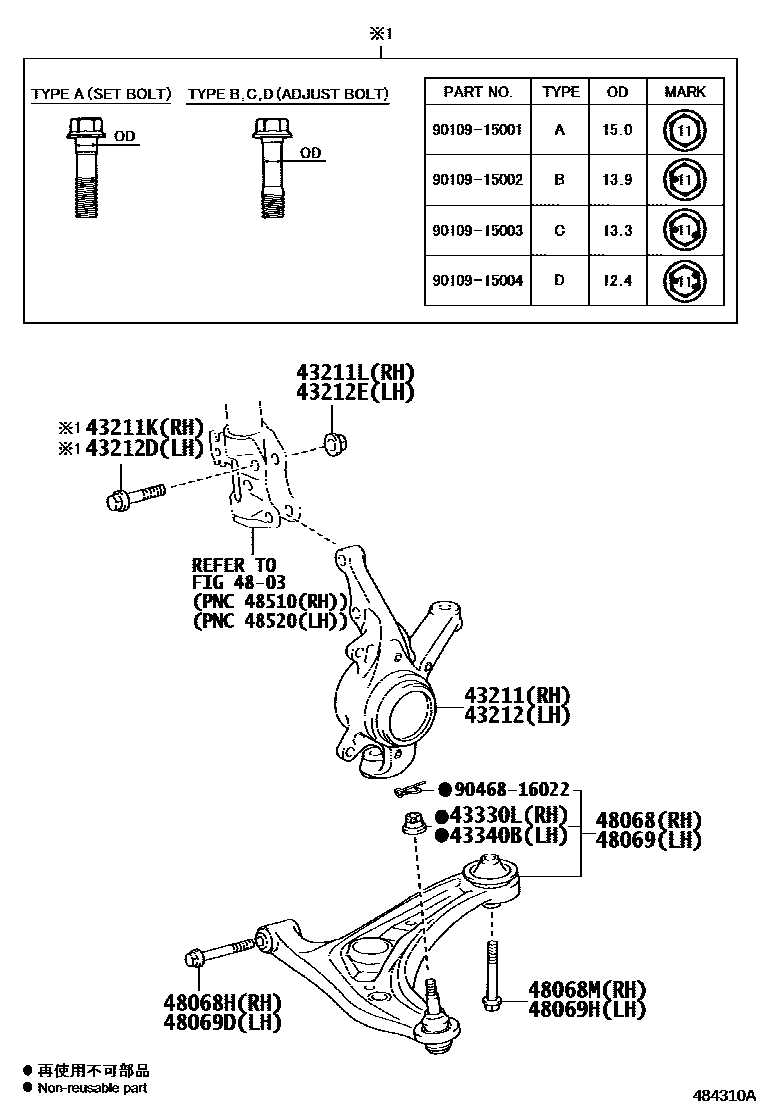

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52050iNCP12#,NSP12#201405

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001×2iNCP12#,NSP12#201405

main90109-15002iNCP12#,NSP12#201011-201405

main90109-15003iNCP12#,NSP12#201011-201405

main90109-15004iNCP12#,NSP12#201405

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004×2iNCP12#,NSP12#201405

43212KNUCKLE, STEERING, LH

main43212-52050iNCP12#,NSP12#201011-201405

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001×2iNCP12#,NSP12#201011-201405

main90109-15002iNCP12#,NSP12#201405

main90109-15003iNCP12#,NSP12#201011-201405

main90109-15004iNCP12#,NSP12#201011-201405

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004×2iNCP12#,NSP12#201011-201405

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNCP12#,NSP12#201011-201405

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNCP12#,NSP12#201011-201405

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-59145iNCP12#,NSP12#201011-201405

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iNCP12#,NSP12#201405

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14144iNCP120,122,NSP12#201011-201211

main90119-14145iNCP125201011-201401

main90119-14151iNCP120,122,NSP12#201212-201405

main90119-14152iNCP125201405

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-59135iNCP12#,NSP12#201011-201405

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iNCP12#,NSP12#201011-201405

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14144iNCP120,122,NSP12#201011-201211

main90119-14145iNCP125201011-201401

main90119-14151iNCP120,122,NSP12#201212-201405

main90119-14152iNCP125201402-201405

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
