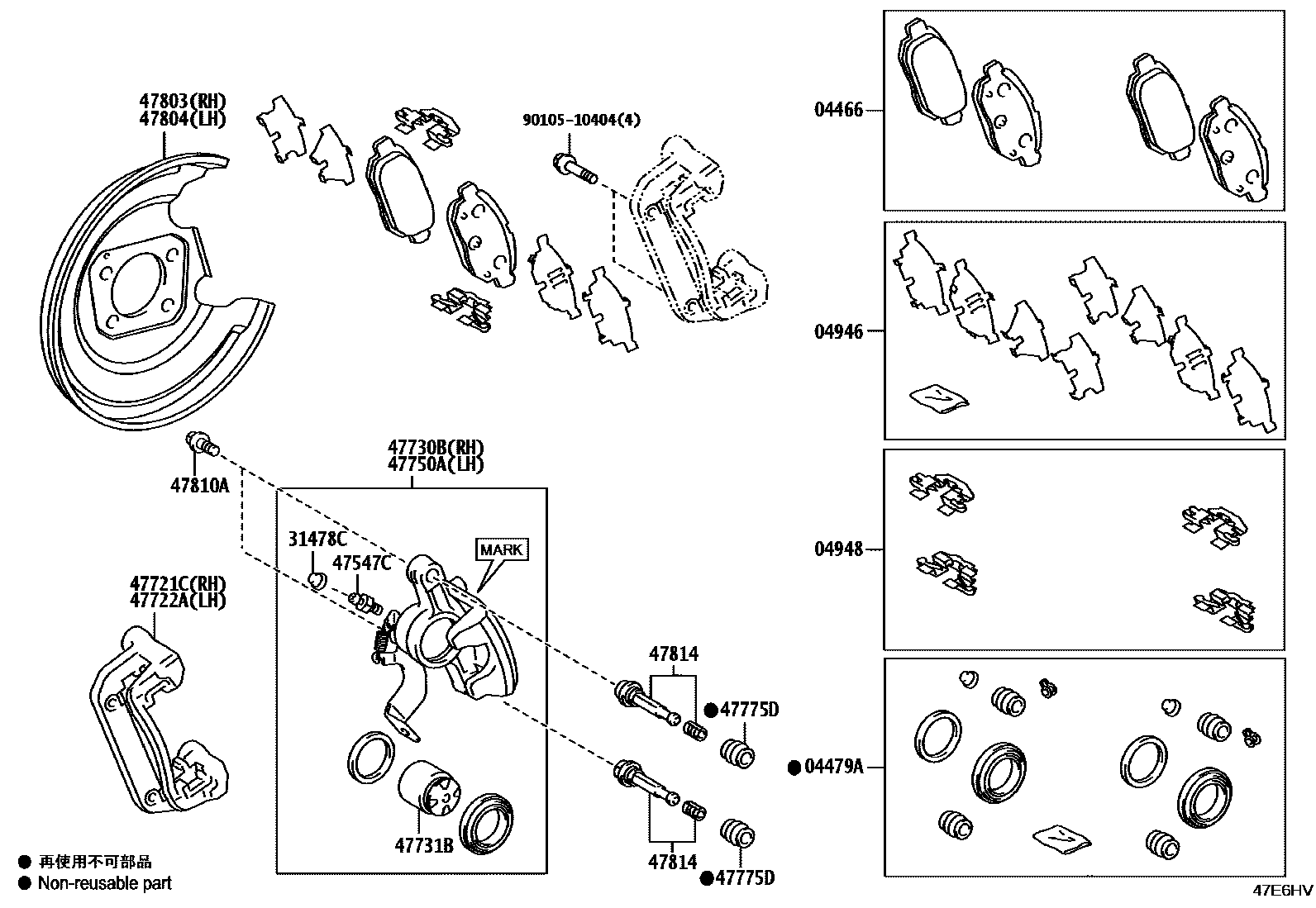

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52140iNCP120..S201011-201202

main04466-52141iNCP120..S201202-201303

main04466-52170iNCP120..S201304-201405

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52170iNCP120..S201011-201405

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52080iNCP120..S201011-201405

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iNCP120..S201202-201405

main04948-52040iNCP120..S201011-201201

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010×2iNCP120..S201011-201405

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050×2iNCP120..S201011-201405

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12151iNCP120..S201011-201405

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151iNCP120..S201011-201405

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-52161iNCP120..S201011-201405

47731BPISTON, REAR DISC BRAKE

main47831-52090×2iNCP120..S201011-201405

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52161iNCP120..S201011-201405

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iNCP120..S201011-201405

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-52030iNCP120..S201011-201405

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-52030iNCP120..S201011-201405

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102×4iNCP120..S201011-201405

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47835-12150×4iNCP120..S201011-201405

9010510404

main90105-10404

17 parts on this diagram · 1 diagram in section
