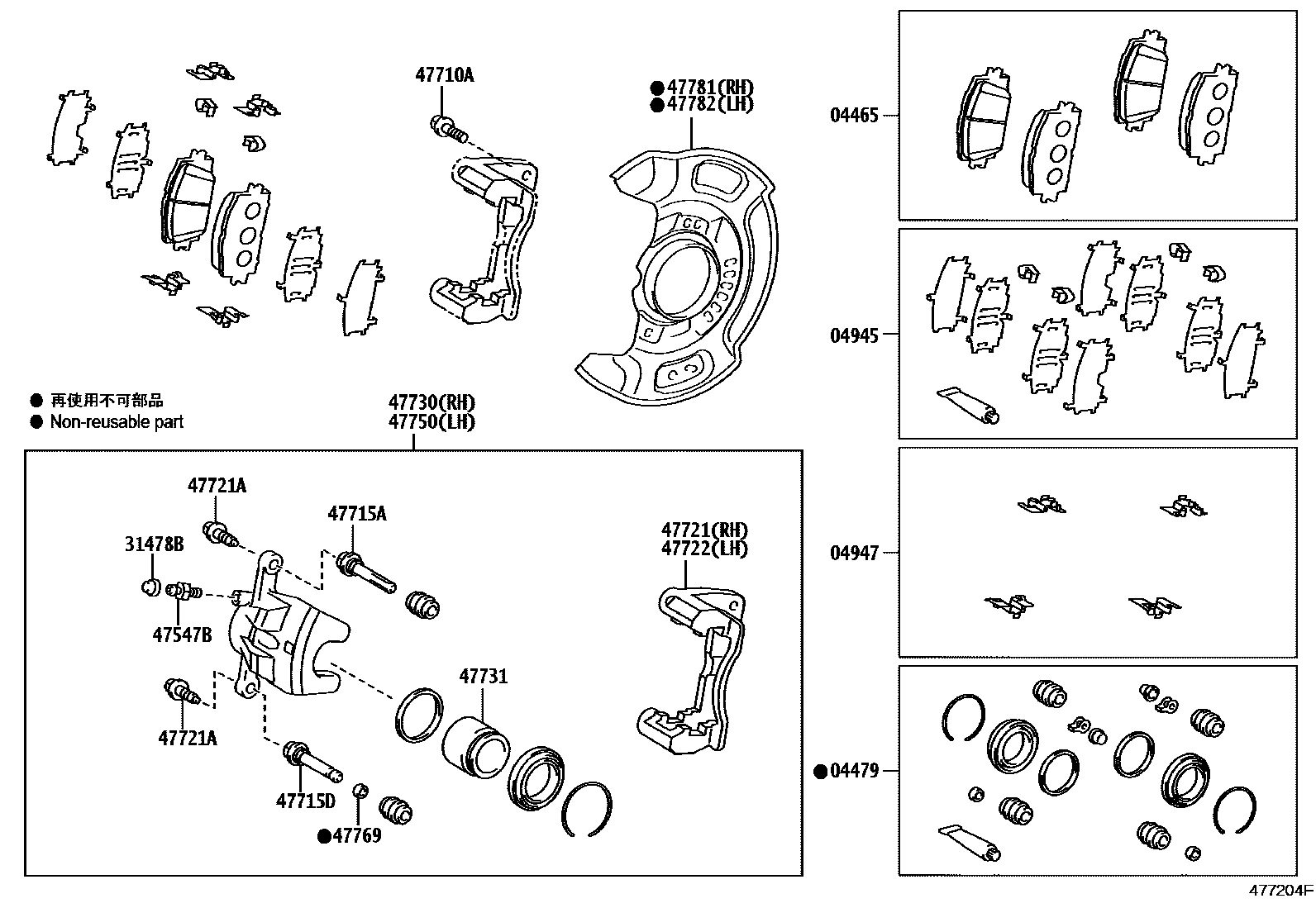

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-52310iNCP12#,NSP12#201011-201405

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-52100iNCP12#,NSP12#201011-201405

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-52120iNCP12#,NSP12#201011-201405

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iNCP12#,NSP12#201011-201405

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iNCP12#,NSP12#201011-201405

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iNCP12#,NSP12#201011-201405

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iNCP12#,NSP12#201011-201405

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190×2iNCP12#,NSP12#201011-201405

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10×2iNCP12#,NSP12#201011-201405

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52211iNCP12#,NSP12#201011-201405

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iNCP12#,NSP12#201011-201405

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52211iNCP12#,NSP12#201011-201405

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52211iNCP12#,NSP12#201011-201405

47731PISTON, FRONT DISC BRAKE

main47731-52210×2iNCP12#,NSP12#201011-201405

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52211iNCP12#,NSP12#201011-201405

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iNCP12#,NSP12#201011-201405

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52030iNCP12#,NSP12#201011-201405

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52030iNCP12#,NSP12#201011-201405

18 parts on this diagram · 1 diagram in section
