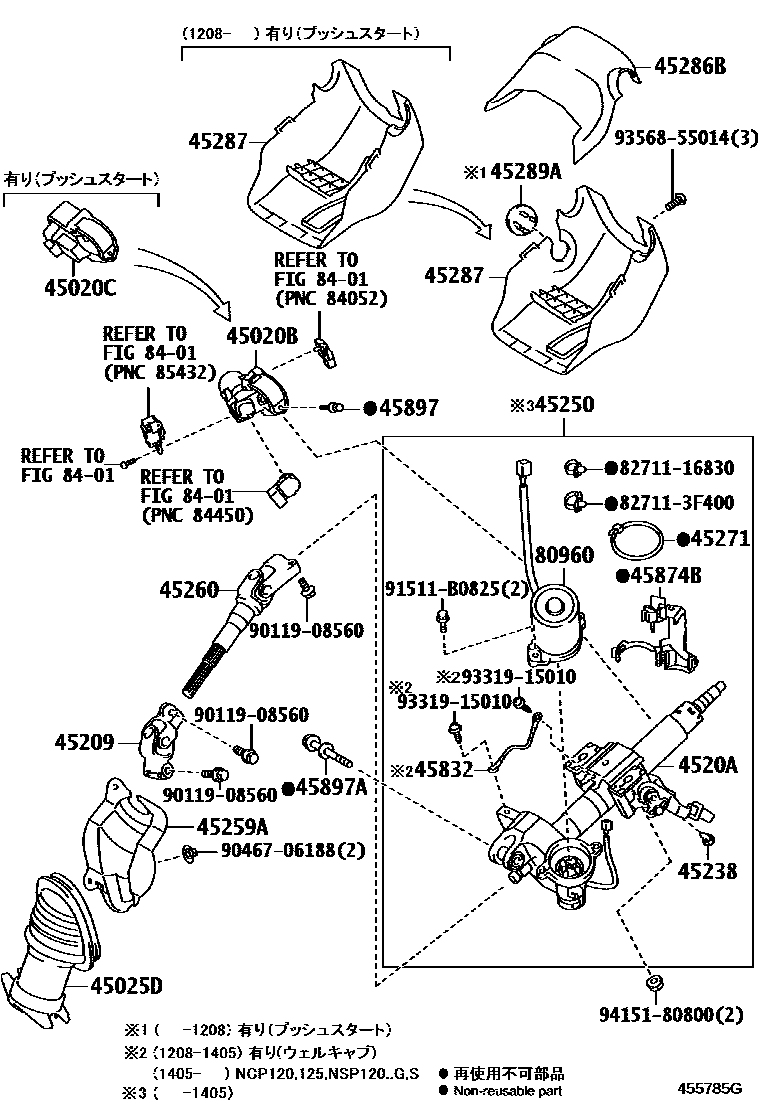

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-52100iNCP122;NCP120,125,NSP12#..LEPIC,X201011-201405

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-52170iNCP120,125,NSP120..G,S201011-201405

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52140iNCP120,122,NSP12#201011-201110

main45025-52160iNCP125201011-201405

main45025-52170iNCP120,122,NSP12#201405

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52050iNCP12#,NSP12#201011-201405

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-52130iNCP122;NCP120,125,NSP12#..LEPIC,X201011-201104

main4520A-52131iNCP122;NCP120,125,NSP12#..LEPIC,X201105-201206

main4520A-52132iNCP122;NCP120,125,NSP12#..LEPIC,X201207-201405

main4520A-52140iNCP120,125,NSP120..G,S201011-201104

main4520A-52141iNCP120,125,NSP120..G,S201105-201206

main4520A-52142iNCP120,125,NSP120..G,S; NCP120,125,NSP120..LEPIC201207-201405

main4520A-52152iNCP122201405

main4520A-52162iNCP120,125,NSP120..G,S201405

main4520A-52200iNCP125,NSP120..G; NSP120..G201011-201104

main4520A-52201iNCP125,NSP120..G; NSP120..G201105-201206

main4520A-52202iNCP125,NSP120..G; NSP120..G201207-201208

main4520A-52242iNCP125,NSP120..G; NSP120..G201405

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNCP12#,NSP12#201011-201405

45250COLUMN ASSY, STEERING

main45250-52792iNCP122;NCP120,125,NSP12#..LEPIC,X201011-201104

main45250-52793iNCP122;NCP120,125,NSP12#..LEPIC,X201105-201206

main45250-52794iNCP122;NCP120,125,NSP12#..LEPIC,X201207-201405

main45250-52802iNCP120,125,NSP120..G,S201011-201104

main45250-52803iNCP120,125,NSP120..G,S201105-201206

main45250-52804iNCP120,125,NSP120..G,S; NCP120,125,NSP120..LEPIC201207-201405

main45250-52862iNCP125,NSP120..G; NSP120..G201011-201104

main45250-52863iNCP125,NSP120..G; NSP120..G201105-201206

main45250-52864iNCP125,NSP120..G; NSP120..G201207-201208

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52010iNCP12#,NSP12#201011-201405

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52201iNCP12#,NSP12#201011-201405

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iNCP12#,NSP12#201011-201405

45286BCOVER, STEERING COLUMN, UPR

main45286-12560-C0supersedes 45286-52160-C0iNCP120,125,NSP120..G; NCP120..S201208-201405

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45286-52160-C0iNCP120,125,NSP120..G; NCP120..S201011-201208

BLACK,TRIM2#; BLACK,TRIM2#,4#

45287COVER, STEERING COLUMN, LWR

main45287-12640-C0supersedes 45287-52190-C0iNCP120,125,NSP120..G; NCP120..S201208-201405

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45287-52190-C0iNCP120,125,NSP120..G; NCP120..S201011-201208

BLACK,TRIM2#; BLACK,TRIM2#,4#

45289ASUPPORT, STEERING COLUMN COVER

main45289-52010-C0iNCP120,125,NSP120..G; NCP120..S201011-201208

BLACK,TRIM2#; BLACK,TRIM2#,4#

45832CABLE, TILT STEERING SUPPORT BOND

main45832-52010iNCP12#,NSP120..G,S201405

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-52040iNCP12#,NSP12#201405

45897BOLT, STEERING LOCK SET

main45897-12020iNCP12#,NSP12#201405

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNCP12#,NSP12#201011-201209

main90119-10980iNCP12#,NSP12#201405

80960MOTOR ASSY, POWER STEERING

main80960-52070iNCP12#,NSP12#201308-201311

main80960-52080iNCP12#,NSP12#201011-201112

main80960-52100iNCP120,125,NSP120..LEPIC201112-201308

main80960-52110iNCP12#,NSP12#201405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F400

9011908560

main90119-08560

9046706188

main90467-06188

91511B0825

main91511-B0825

9331915010

main93319-15010

9356855014

main93568-55014

9415180800

main94151-80800

27 parts on this diagram · 1 diagram in section
