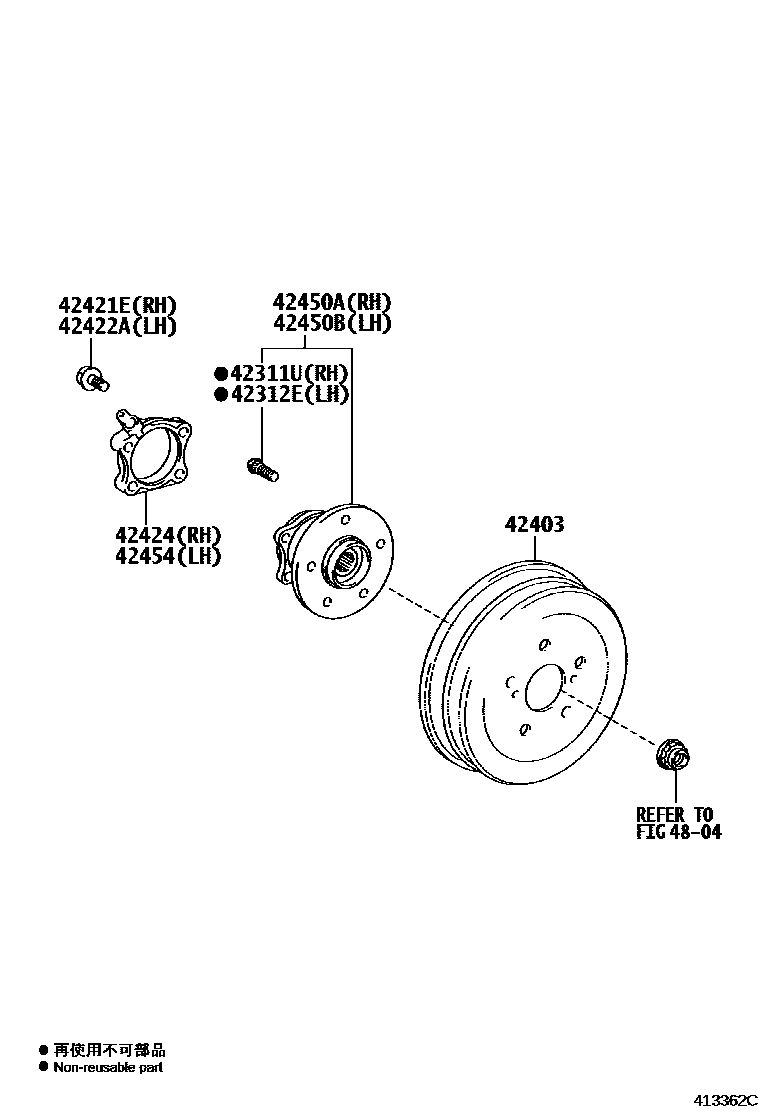

REAR AXLE SHAFT & HUB

0001 1 0002 1RH 0003 1LH 0004 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iNCP12#,NSP12#201011-201405

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iNCP12#,NSP12#201011-201405

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12300iNCP12#,NSP12#..G,LEPIC,X201011-201405

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iNCP120,122,NSP12#201011-201405

main90105-12351iNCP125201011-201405

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iNCP120,122,NSP12#201011-201405

main90105-12351iNCP125201011-201405

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-52020iNCP125201011-201405

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-52100iNCP125201011-201405

main42450-52090iNCP120,122,NSP12#201011-201405

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-52100iNCP125201011-201405

main42450-52090iNCP120,122,NSP12#201011-201405

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-52020iNCP125201011-201405

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

10 parts on this diagram · 4 diagrams in section
