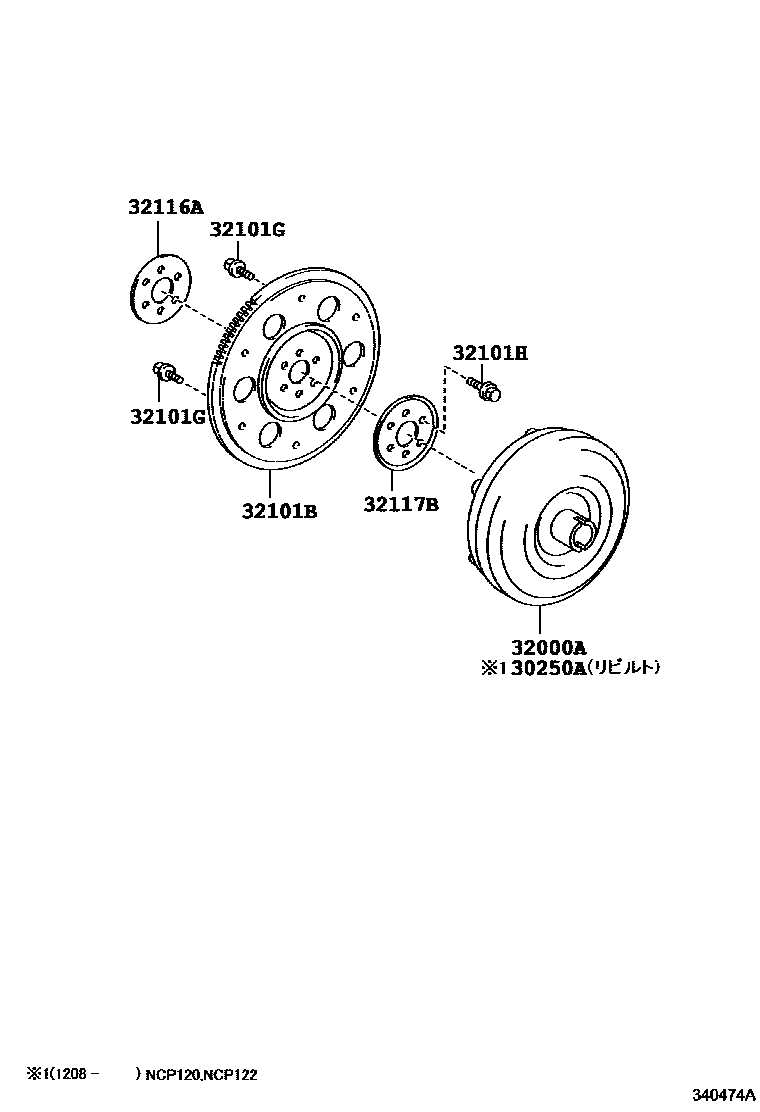

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K310,K310F 0002 1K411

30250ACONVERTER ASSY, TORQUE, REBUILT

main30250-12480iNCP120,122201208-201607

main30250-52160iNSP12#201011-201607

32000ACONVERTER ASSY, TORQUE

main32000-12410iNCP125201011-201607

main32000-12480iNCP120,122201208-201607

main32000-52160iNSP12#201011-201607

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52021iNCP12#201011-201405

main32101-52090iNSP12#201405

main32101-74010iNSP12#201011-201305

main32111-52120iNSP12#201305-201405

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNCP12#,NSP12#201011-201405

main90119-08498iNCP12#,NSP12#201011-201405

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNSP12#201011-201405

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNSP12#201011-201405

main32116-52030iNCP12#201011-201405

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNSP12#201011-201405

main32117-52030iNCP12#201011-201405

7 parts on this diagram · 2 diagrams in section
