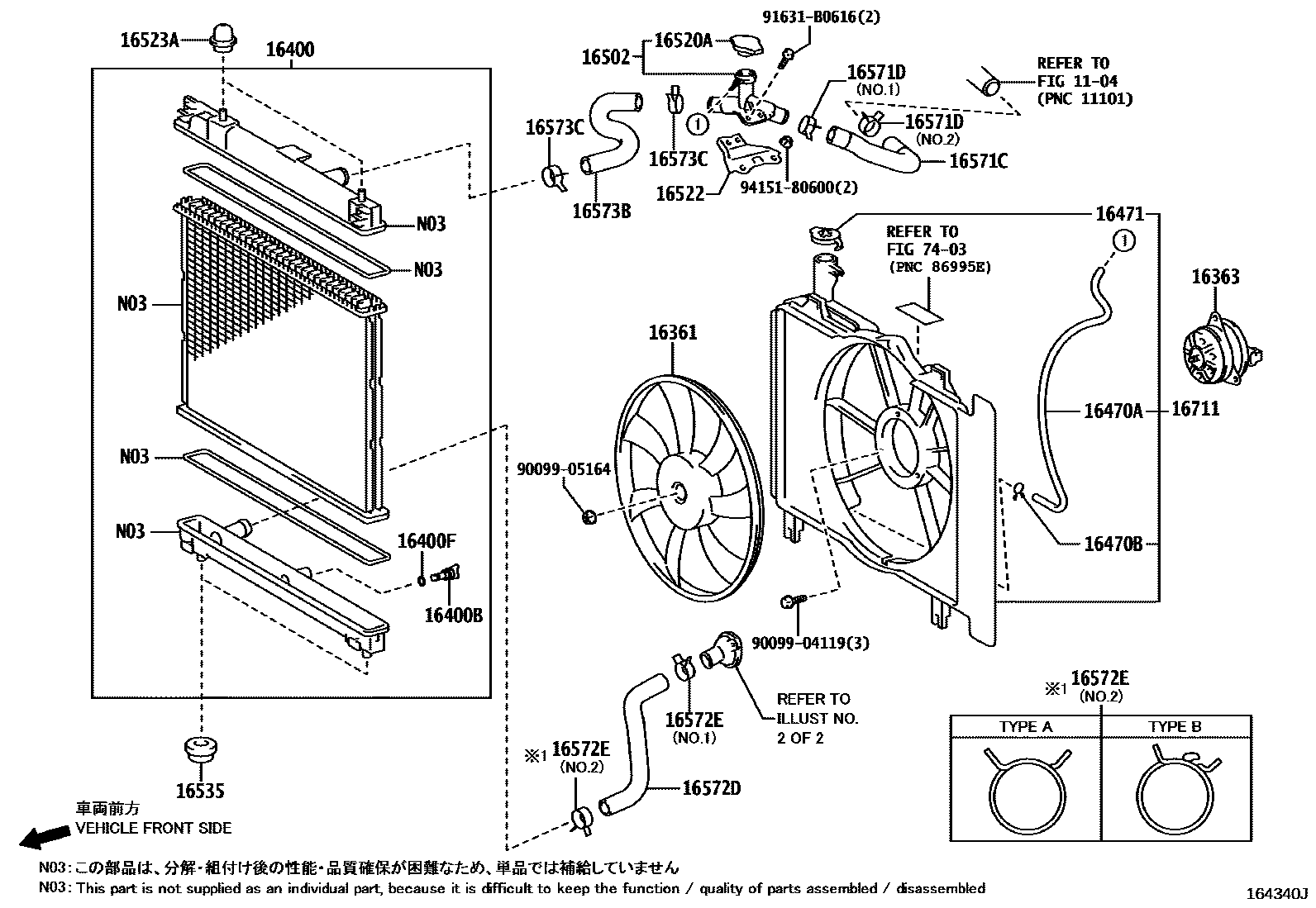

RADIATOR & WATER OUTLET

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1104CYLINDER HEAD

→ Go to FIG 11-04

16361FAN

main16361-21090i1NZFE..NCP125201011-201405

main16361-21100i1NZFE..NCP120,122201405

main16361-23070i1NRFE..NSP12#201011-201405

main16361-47040i1NRFKE..NSP12#201405

16363MOTOR, COOLING FAN

main16363-28150i1N#..NCP120,122,NSP12#201011-201405

main16363-28160i1NZFE..NCP125201011-201405

main16363-47020i1NRFKE..NSP12#201405

16400RADIATOR ASSY

main16400-21270i1NZFE..NCP12#201011-201405

main16400-47090i1NRFE..NSP12#201011-201405

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1N#..NCP12#,NSP12#201011-201405

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1N#..NCP12#,NSP12#201011-201405

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-21200i1NZFE..NCP12#201011-201405

main16377-47020i1NRFE..NSP12#201011-201405

main16377-47070i1NRFKE..NSP12#201405

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1N#..NCP12#,NSP12#201011-201405

16471CAP SUB-ASSY, RESERVE TANK

main16471-23030i1N#..NCP12#,NSP12#201011-201405

16502FILLER SUB-ASSY, WATER

main16502-21080i1NZFE..NCP12#201011-201405

16520ACAP SUB-ASSY, WATER FILLER

main16401-31520i1NZFE..NCP12#201011-201405

16522BRACKET, WATER FILLER

main16522-21010i1NZFE..NCP12#201011-201405

16523ACUSHION, RADIATOR SUPPORT

main16523-21030×2i1N#..NCP12#,NSP12#201011-201405

16535SUPPORT, RADIATOR, LOWER

main90480-22025×2i1N#..NCP12#,NSP12#201011-201405

16571CHOSE, RADIATOR, NO.1

main16571-21120i1NZFE..NCP12#201011-201405

main16571-47080i1NRFKE..NSP12#201405

16571DCLIP, RADIATOR HOSE, NO.1

main90467-33006i1NRFE..NSP12#; 1NZFE..NCP12#201011-201405

main96136-43901i1NZFE..NCP12#201405

16572DHOSE, RADIATOR, NO.2

main16572-21090i1NZFE..NCP12#201405

main16572-47070i1NRFE..NSP12#201011-201405

main16572-47090i1NRFKE..NSP12#201405-201412

main16572-47120i1NRFKE..NSP12#201412

16572ECLIP, RADIATOR HOSE, NO.2

main90467-33006i1N#..NCP12#,NSP12#201405

main90467-34004i1NRFKE..NSP12#; 1NZFE..NCP12#201405

main96136-43901i1NZFE..NCP12#201405-201504

16573BHOSE, RADIATOR, NO.3

main16573-21060i1NZFE..NCP12#201011-201405

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-33006×2i1NZFE..NCP12#201011-201405

16711SHROUD, FAN

main16711-21110i1NZFE..NCP12#201011-201405

main16711-47050i1NRFE..NSP12#201011-201405

main16711-47080i1NRFKE..NSP12#201405

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9009904119

main90099-04119

9009905164

main90099-05164

91631B0616

main91631-B0616

9415180600

main94151-80600

26 parts on this diagram · 8 diagrams in section
