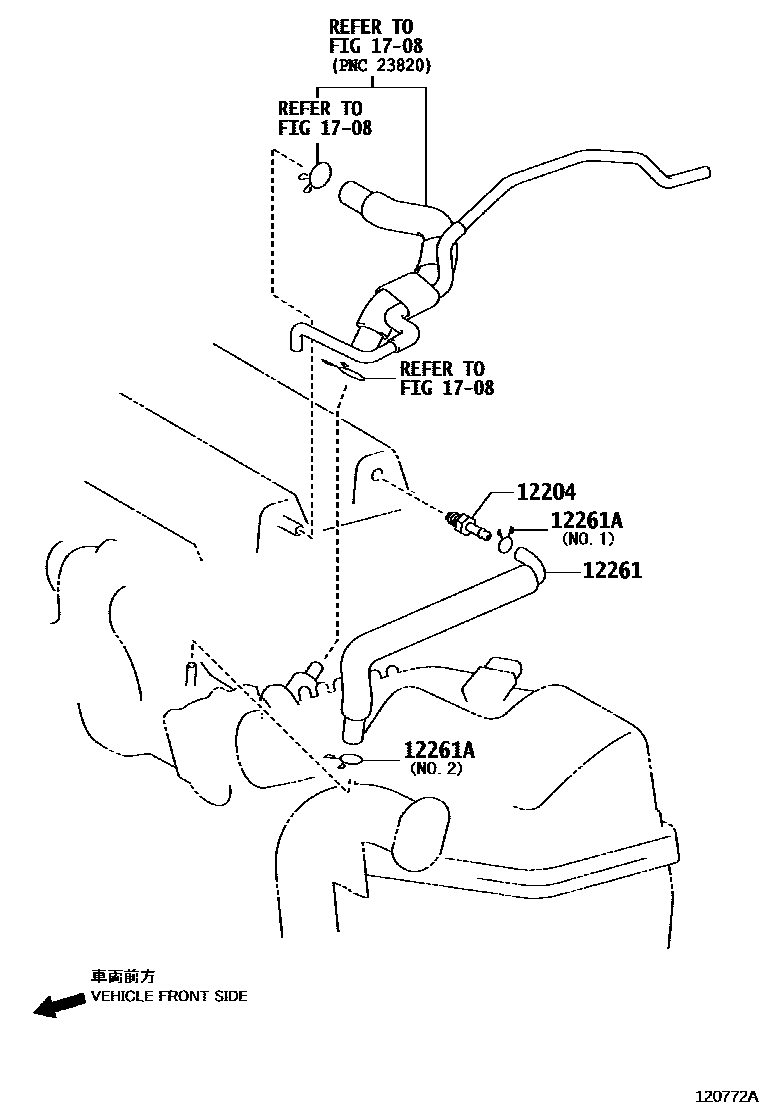

VENTILATION HOSE

0001 1 0002 1 0003 1

12204VALVE SUB-ASSY, VENTILATION

main12204-21020i1NZFE..NCP12#201405

main12204-47010i1NRFE..NSP12#201011-201405

main12204-47060i1NRFKE..NSP12#201405

12261HOSE, VENTILATION

main12261-21060i1NZFE..NCP12#201011-201405

main12261-47010i1NRFE..NSP12#201011-201405

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-23003i1NZFE..NCP12#201405

main90467-15120i1NZFE..NCP12#201011-201405

main90467-16035i1NRFE..NSP12#201011-201405

1708VACUUM PIPING

→ Go to FIG 17-08

4 parts on this diagram · 3 diagrams in section
