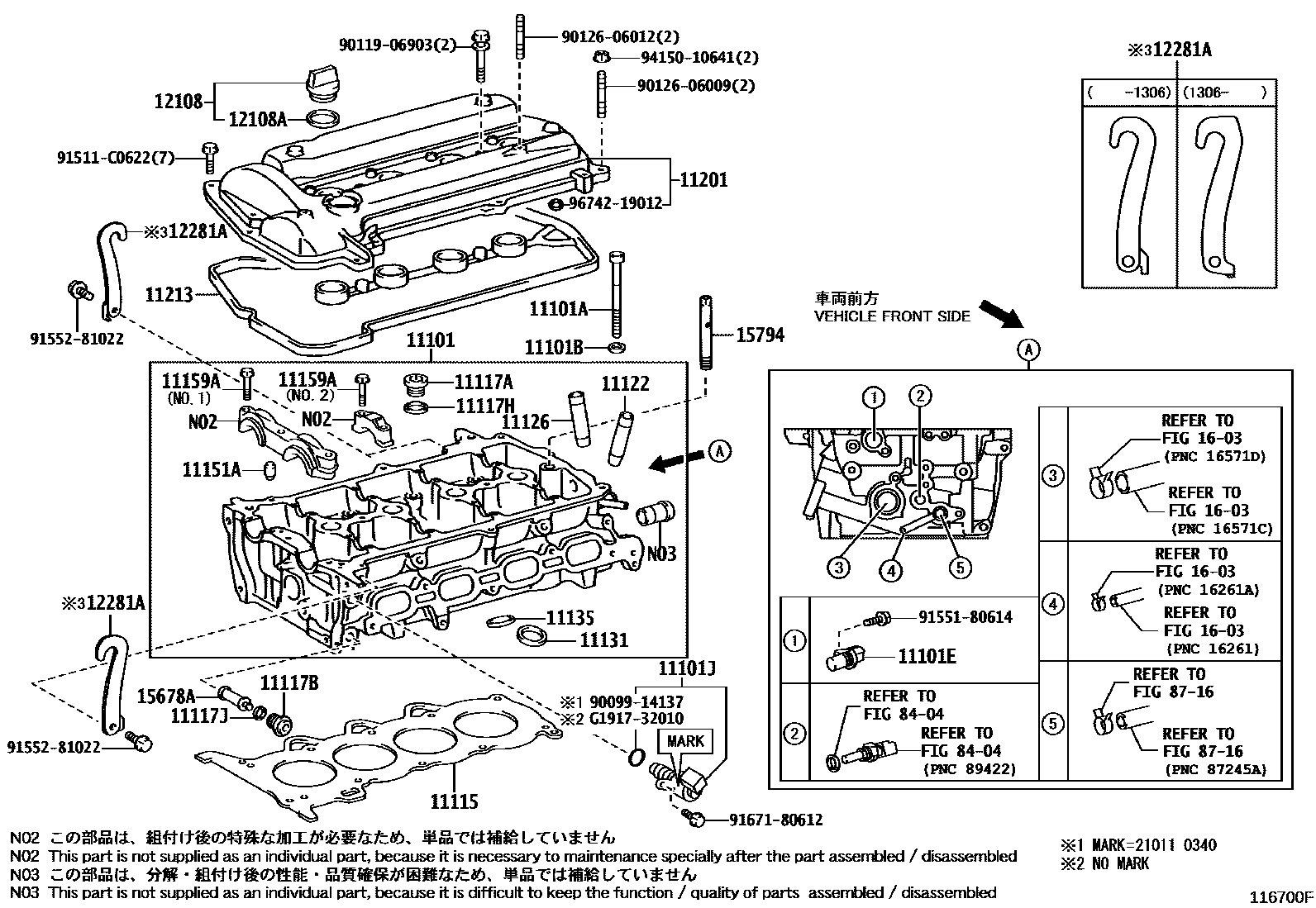

CYLINDER HEAD

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

11101HEAD SUB-ASSY, CYLINDER

main11101-21050i1NZFE..NCP12#201011-201110

sub11101-21051

main11101-21051i1NZFE..NCP125201110-201405

sub11101-21052

main11101-21090i1NZFE..NCP120,122201208-201405

sub11101-21091

main11101-49465i1NRFE..NSP12#201011-201405

sub11101-49466

main11101-49505i1NRFKE..NSP12#201405-201412

sub11101-49526

main11101-49506i1NRFKE..NSP12#201412

sub11101-49507

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02170i1NZFE..NCP12#201011-201405

main90910-02174i1NRFE..NSP12#201011-201405

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024i1NZFE..NCP12#201011-201405

main90201-10344i1NRFKE..NSP12#201011-201405

11101ESENSOR, CAM POSITION

main90919-05024i1NZFE..NCP120,122201011-201405

main90919-05060i1NZFE..NCP120,122201208-201405

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21011i1NZFE..NCP12#201011-201405

main15330-47010i1NRFE..NSP12#201011-201405

main15330-47020i1NRFE..NSP12#201011-201405

main15330-47020i1NRFKE..NSP12#201405

11115GASKET, CYLINDER HEAD

main11115-21050i1NZFE..NCP12#201011-201110

sub11115-21080

main11115-21080i1NZFE..NCP12#201110-201204

sub11115-21090

main11115-21090i1NZFE..NCP12#201204-201503

sub11115-21091

main11115-21091i1NZFE..NCP12#201504

main11115-47050i1NRFE..NSP12#201011-201405

main11115-47080i1NRFKE..NSP12#201405

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-24011i1NZFE..NCP12#201501

main90341-24013i1NZFE..NCP12#201011-201412

sub90341-24011

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZFE..NCP12#201011-201405

11117HGASKET(FOR WATER HOLE)

main90430-24246i1NZFE..NCP12#201011-201405

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZFE..NCP12#201011-201405

11122BUSH, INTAKE VALVE GUIDE

main11122-31041i1NRFE..NSP12#201011-201405

sub11122-47010

main11122-75020i1NZFE..NCP12#201011-201405

main11123-31041i1NRFE..NSP12#201011-201405

sub11123-47010

main11123-75020i1NZFE..NCP12#201011-201405

11126BUSH, EXHAUST VALVE GUIDE

main11122-31041i1NRFKE..NSP12#201011-201405

sub11122-47010

main11122-75020i1NZFE..NCP12#201011-201405

main11123-31041i1NRFE..NSP12#201011-201405

sub11123-47010

main11123-75020i1NZFE..NCP12#201011-201405

11131SEAT, INTAKE VALVE

main11131-21020i1NZFE..NCP125201011-201607

sub11131-21021

main11131-21060i1NZFE..NCP120,122201208-201607

main11131-47010i1NRFE..NSP12#201011-201607

main11132-21020i1NZFE..NCP125201011-201607

sub11132-21021

main11132-21060i1NZFE..NCP120,122201208-201607

sub11132-21070

main11132-47010i1NRFE..NSP12#201011-201607

11135SEAT, EXHAUST VALVE

main11135-21020i1NZFE..NCP12#201011-201405

sub11135-21041

main11135-47010i1NRFE..NSP12#201011-201612

main11136-21020i1NZFE..NCP12#201011-201405

main11136-47010i1NRFKE..NSP12#201011-201405

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001i1NZFE..NCP12#201011-201405

main90253-13005i1NRFE..NSP12#201011-201405

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-T0347i1NRFKE..NSP12#201606-201607

main90109-06080i1NZFE..NCP12#201011-201607

main90119-08A29i1NZFE..NCP12#201011-201607

main91551-80635i1NRFKE..NSP12#201011-201605

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21070i1NZFE..NCP120,122201011-201405

main11201-21090i1NZFE..NCP120,122201208-201405

main11201-47100i1NRFE..NSP12#201011-201108

sub11201-47101

main11201-47101i1NRFE..NSP12#201108-201405

sub11201-47130

main11201-47150i1NRFKE..NSP12#201405

11213GASKET, CYLINDER HEAD COVER

main11213-21020i1NZFE..NCP12#201011-201405

main11213-47020i1NRFE..NSP12#201011-201405

main11213-47040i1NRFKE..NSP12#201405

12108CAP SUB-ASSY, OIL FILLER

main12180-38010i1N#..NCP12#,NSP12#201011-201405

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i1N#..NCP12#,NSP12#201011-201405

12281AHANGER, ENGINE, NO.1

main12281-21010i1NZFE..NCP12#201011-201306

main12281-21090i1NZFE..NCP12#201306-201405

main12281-47022i1NRFE..NSP12#201011-201404

sub12281-47023

main12281-47023i1NRFE..NSP12#201404-201405

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1NZFE..NCP12#201011-201405

main15678-31020i1NRFE..NSP12#201311-201405

15794NOZZLE, CYLINDER HEAD OIL

main15794-21010i1NZFE..NCP12#201011-201405

1603

8404

8716

9009914137

main90099-14137

9011906903

main90119-06903

9012606009

main90126-06009

9012606012

main90126-06012

91511C0622

main91511-C0622

9155180614

main91551-80614

9155281022

main91552-81022

9167180612

main91671-80612

9415010641

main94150-10641

9674219012

main96742-19012

G191732010

mainG1917-32010
