SHORT BLOCK ASSEMBLY

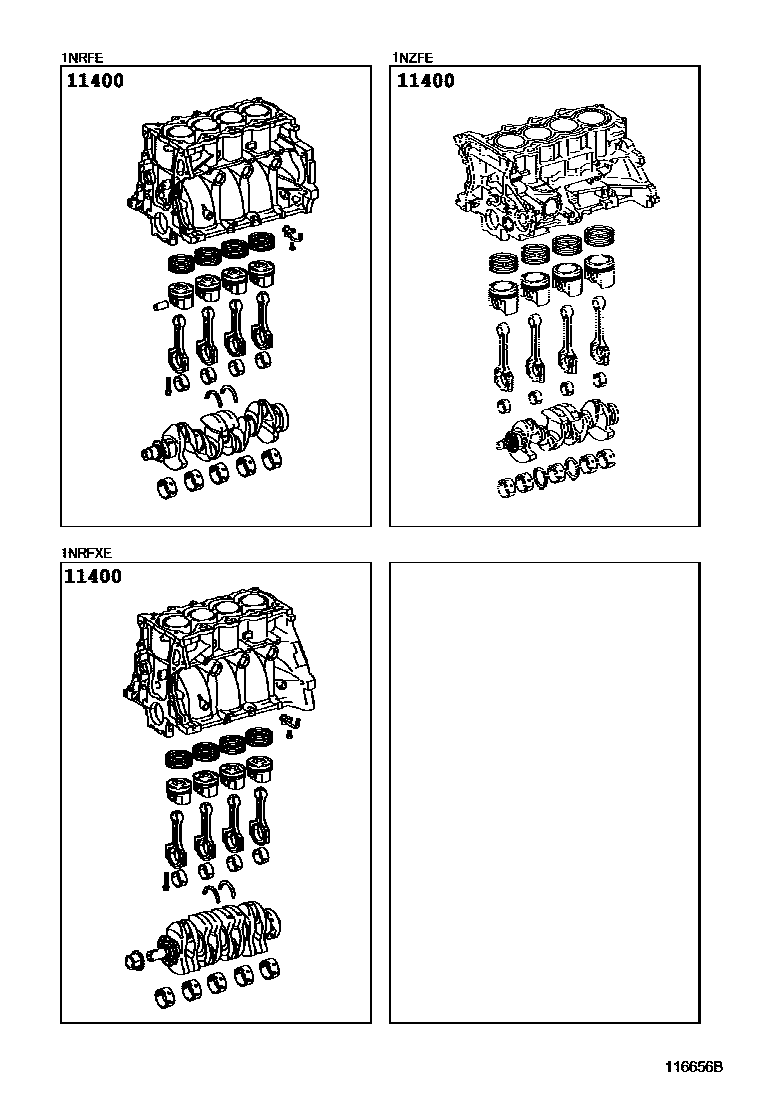

Parts diagram

11400BLOCK ASSY, SHORT

main11400-21190i201011-201204

main11400-21193i201204-201208

main11400-21441i201405

main11400-47090i201011-201301

main11400-47091i201301-201304

main11400-47140i201304-201405

main11400-47160i201405

main11400-21451i201208-201405

1 parts on this diagram · 1 diagram in section
