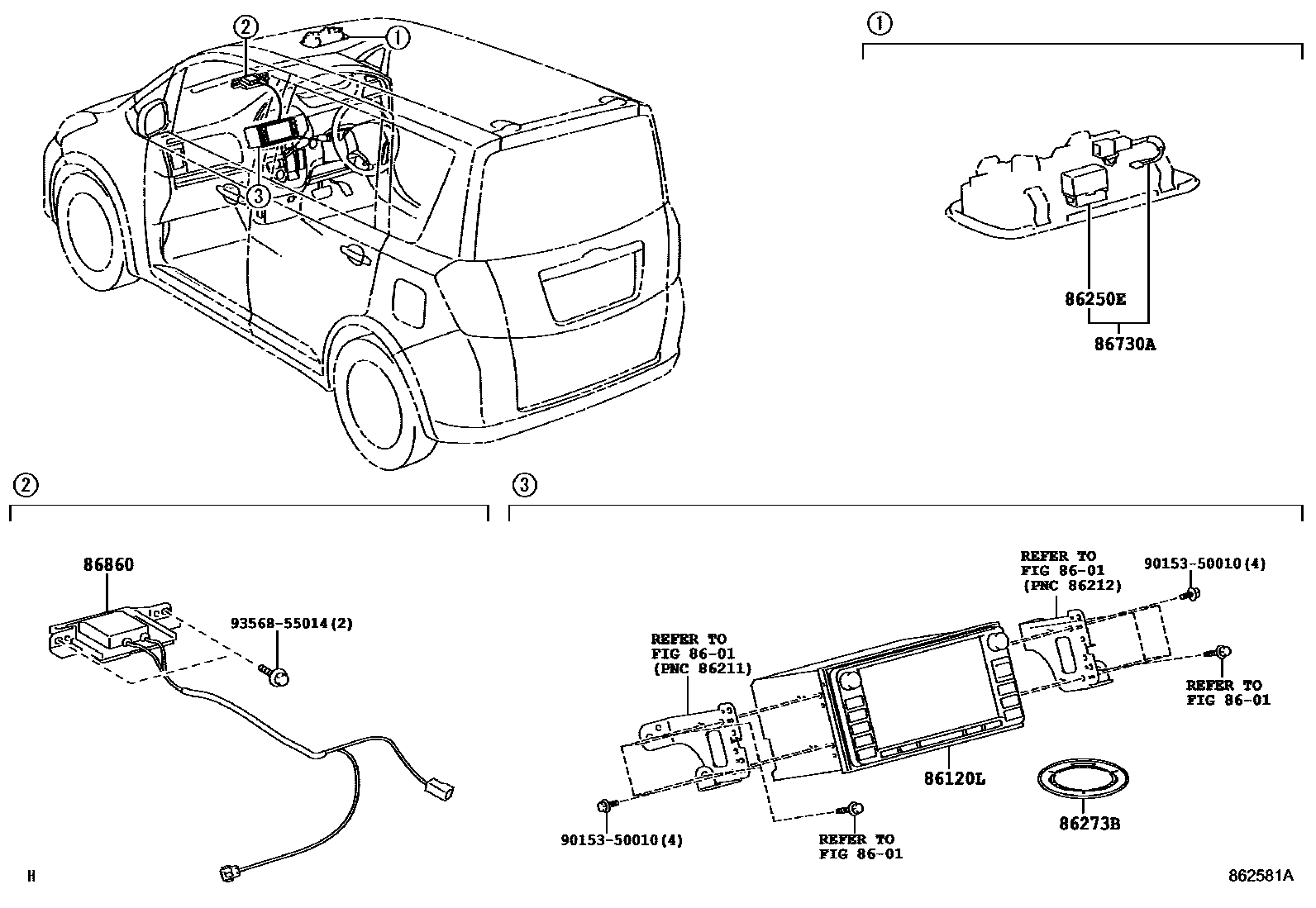

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-52040iNCP10#,SCP100200509-200603

main86100-52041iNCP10#,SCP100200604-200608

main86100-52042iNCP10#,SCP100200609-200703

main86100-52043iNCP10#,SCP100200704-200705

main86100-52044iNCP10#,SCP100200706-200712

main86100-52045iNCP10#,SCP100200804-200808

main86100-52046iNCP10#,SCP100200809-200903

main86100-52047iNCP10#,SCP100200904-200908

main86100-52048iNCP10#,SCP100200909-201004

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030iNCP10#,SCP100200509-200712

86273BADAPTER, DISC PLAYER

main86273-58010iNCP10#,SCP100200509-200712

86730AMICROPHONE ASSY, TELEPHONE

main86730-52020iNCP10#,SCP100200509-200712

86860ANTENNA ASSY, NAVIGATION

main86860-52130iNCP10#,SCP100200509-200712

main86870-52030iNCP10#,SCP100200712-201004

9015350010

main90153-50010

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
