WIRING & CLAMP

0001 1�������� 0002 1����� 0003 1����� 0004 1������������ 0005 1��� 0006 1���&��� 0007 1���&��� (�������) 0008 1����� & ������ 0009 1����

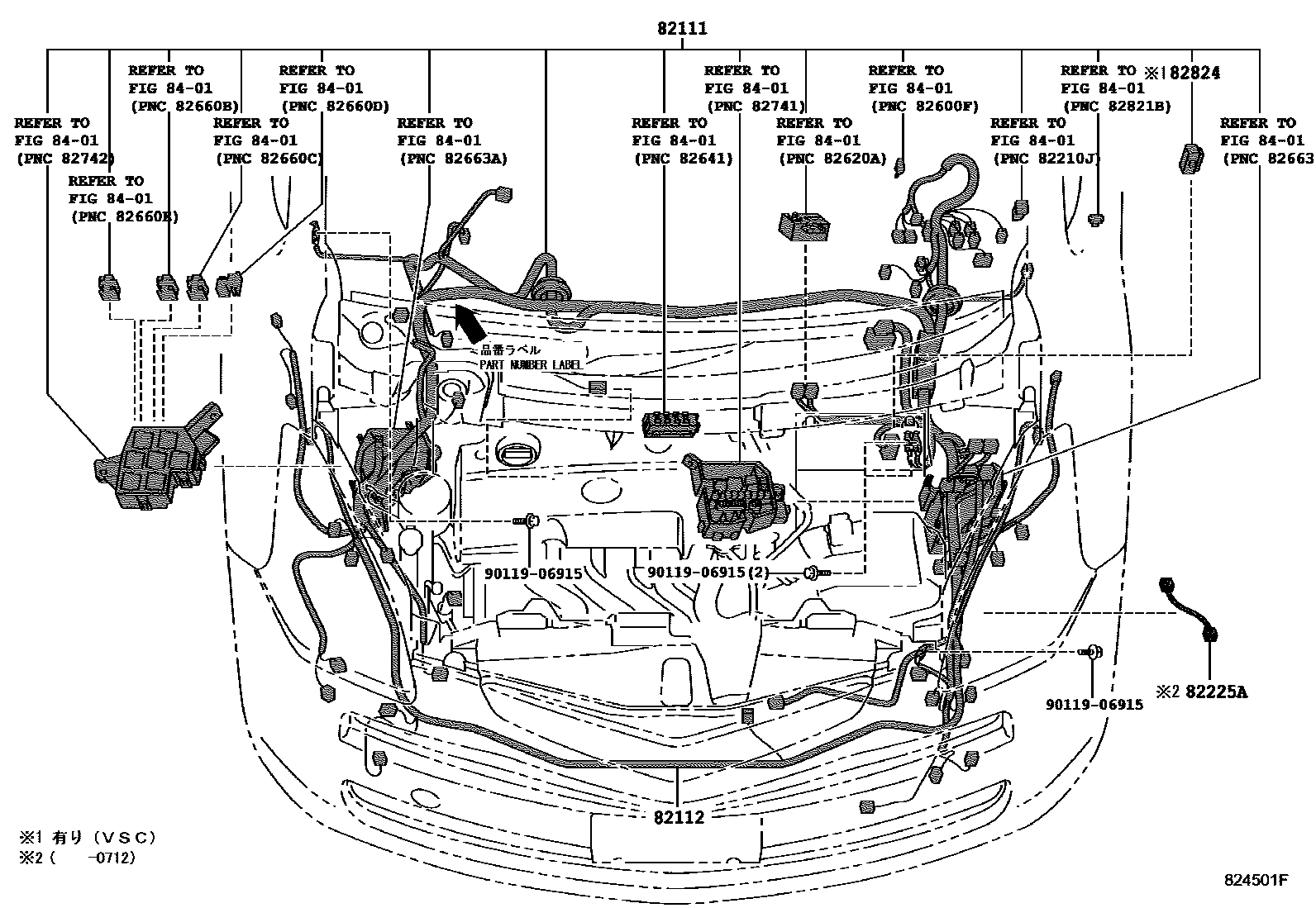

82111WIRE, ENGINE ROOM MAIN

main82111-52B60supersedes 82111-52X00iNCP100200712

main82111-52B90supersedes 82111-52X20iSCP100200712

main82111-52F70supersedes 82111-52X00iNCP100200509-200712

main82111-52F71supersedes 82111-52X00iNCP100200712

main82111-52F80supersedes 82111-52X00iNCP100200509-200712

main82111-52F90supersedes 82111-52X00iNCP100200509-200712

main82111-52G00supersedes 82111-52X00iNCP100200509-200712

main82111-52G10supersedes 82111-52R70iNCP105; NCP105..G200509-200712

main82111-52G20supersedes 82111-52X10iNCP105..G200509-200712

main82111-52G30supersedes 82111-52X20iSCP100200509-200712

main82111-52G51supersedes 82111-52X00iNCP100200511-200712

main82111-52G61supersedes 82111-52X20iSCP100200511-200712

main82111-52L00supersedes 82111-52X00iNCP100200509-200712

main82111-52L21supersedes 82111-52X20iSCP100200712

main82111-52Q90supersedes 82111-52X20iSCP100200704-200712

main82111-52R20supersedes 82111-52X20iSCP100200712

main82111-52R30supersedes 82111-52X00iNCP100200712

main82111-52R40supersedes 82111-52X00iNCP100200712

main82111-52R50supersedes 82111-52X10iNCP105; NCP105..G200712

main82111-52R60supersedes 82111-52X00iNCP100200712

main82111-52R70supersedes 82111-52X10iNCP105..G201004

main82111-52W40supersedes 82111-52X00iNCP100200712

main82111-52W50supersedes 82111-52X20iSCP100200712

main82111-52X00iNCP100200901-201004

main82111-52X10iNCP105..X200901

main82111-52X20iSCP100200901

82112WIRE, ENGINE ROOM, NO.2

main82112-52140iNCP10#..G200509-200712

main82112-52141supersedes 82112-52121iNCP10#,SCP100200712

82225AWIRE, LAMP, NO.2

main82225-52010×2iNCP10#,SCP100200509-200712

82824CONNECTOR, WIRING HARNESS

main82824-52260iNCP100200509-200712

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

6 parts on this diagram · 9 diagrams in section
