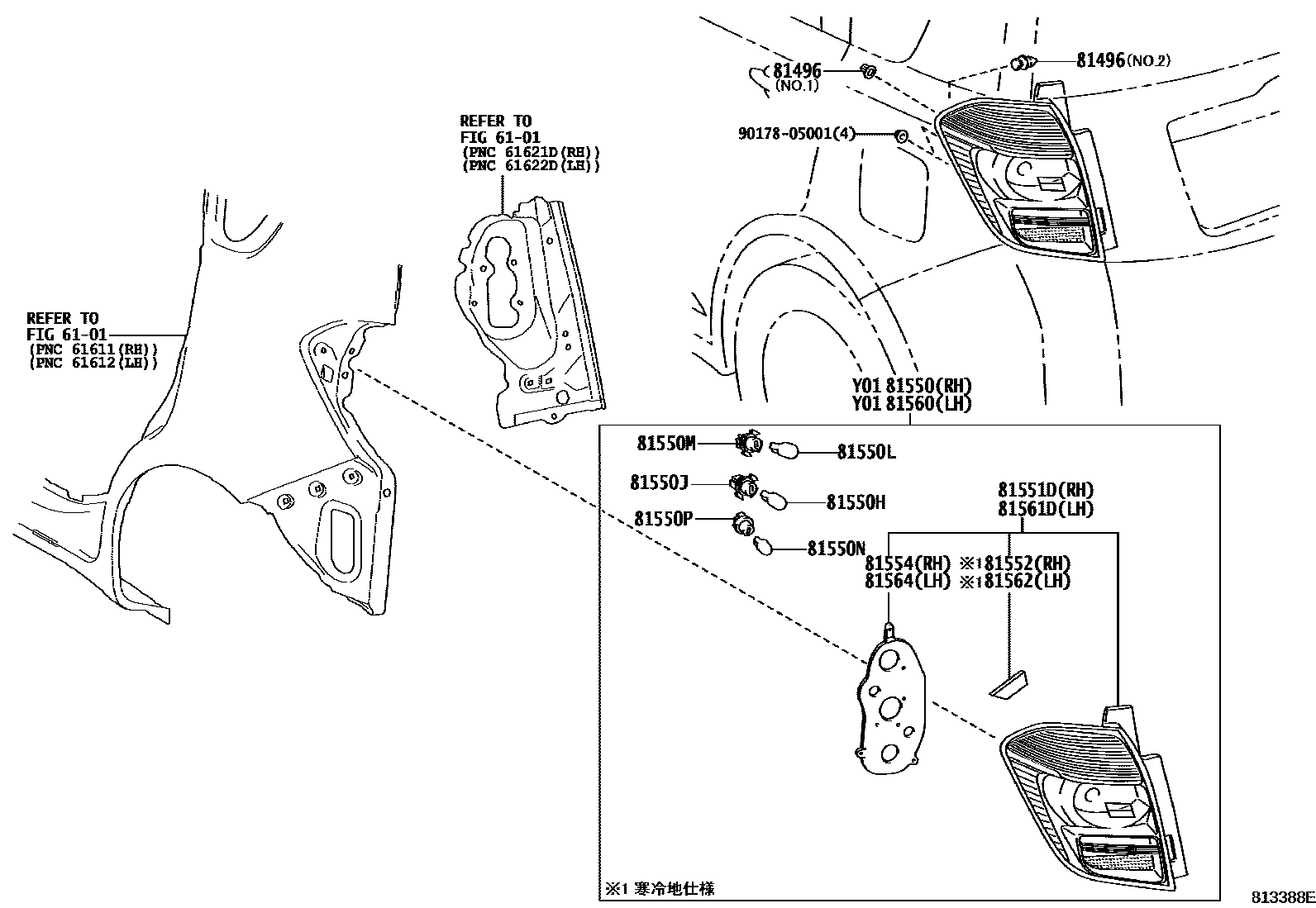

REAR COMBINATION LAMP

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iNCP10#,SCP100200712

main81496-60010×2iNCP10#,SCP100200712

81550LAMP ASSY, REAR COMBINATION, RH

main81550-52630supersedes 81550-52580iNCP10#,SCP100200509-200712

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iNCP10#,SCP100200712

81550JSOCKET, TAIL & STOP LAMP

main90075-60002×2iNCP10#,SCP100200509-200712

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iNCP10#,SCP100200509-200712

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60026×2iNCP10#,SCP100200509-200712

81550NBULB, BACK UP LAMP

main90981-11059×2iNCP10#,SCP100200509-200712

81550PSOCKET, BACK UP LAMP

main90075-60063×2iNCP10#,SCP100200509-200712

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52630supersedes 81551-52750iNCP10#,SCP100200509-200712

main81551-52760supersedes 81551-52750iNCP10#,SCP100200712

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-52630iNCP10#,SCP100200509-200712

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-52750iNCP10#,SCP100200712

main81554-52580iNCP10#,SCP100200509-200712

81560LAMP ASSY, REAR COMBINATION, LH

main81560-52580supersedes 81560-52530iNCP10#,SCP100200509-200712

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52580supersedes 81561-52660iNCP10#,SCP100200509-200712

main81561-52670supersedes 81561-52660iNCP10#,SCP100200712

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-52630iNCP10#,SCP100200509-200712

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-52660iNCP10#,SCP100200712

main81564-52530iNCP10#,SCP100200509-200712

9017805001

main90178-05001

17 parts on this diagram · 2 diagrams in section
