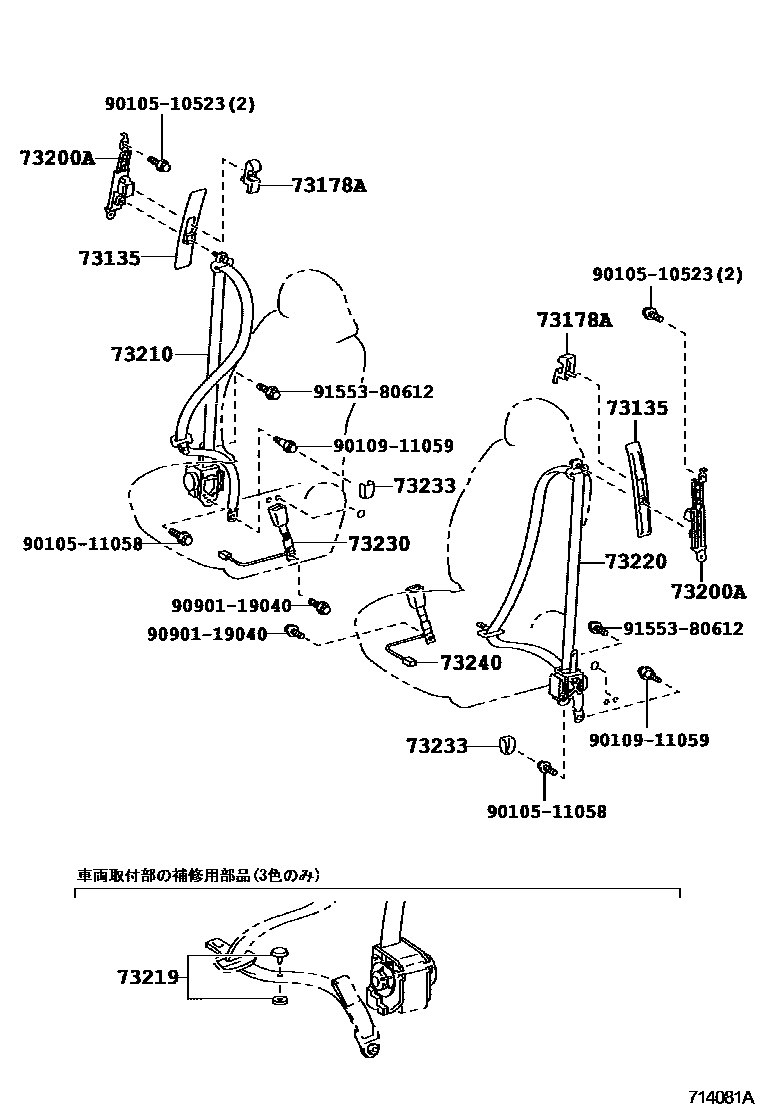

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� ��� 0002 1�� ��� 0003 1�������(��-��)

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-52020-B2×2iNCP10#,SCP100200509-200712

LT.GRAY,TRIM10,11,4#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-52020-B2×2iNCP10#..G; NCP105,SCP100..X200509-200712

LT.GRAY,TRIM1#; LT.GRAY,TRIM10,11

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52050-B2×2iNCP10#,SCP100200712-201008

LT.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52600-C0iNCP10#..G200509-200607

BLACK,TRIM10

main73210-52600-E1iNCP10#..G; NCP105,SCP100..X200509-200607

GREGE,TRIM1#; GREGE,TRIM11

main73210-52660-C0iNCP10#,SCP100200712-200910

BLACK,TRIM10

main73210-52660-E0iNCP10#..G; NCP105,SCP100..X200608-200712

GREGE,TRIM1#; GREGE,TRIM11

main73210-52660-E2iNCP10#,SCP100200712-200910

GREGE,TRIM12

main73210-52661-C0iNCP10#,SCP100200910-201008

BLACK,TRIM10

main73210-52661-E2iNCP10#,SCP100200910-201008

GREGE,TRIM12

73219STOPPER, TONGUE PLATE

main73219-33010iNCP10#,SCP100200712

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52630-C0iNCP10#..G200509-200607

BLACK,TRIM10

main73220-52630-E1iNCP10#..G; NCP105,SCP100..X200509-200607

GREGE,TRIM1#; GREGE,TRIM11

main73220-52690-C0iNCP10#..G200608-200712

BLACK,TRIM10

main73220-52690-E0iNCP10#..G; NCP105,SCP100..X200608-200712

GREGE,TRIM1#; GREGE,TRIM11

main73220-52690-E2iNCP10#,SCP100200712-200910

GREGE,TRIM12

main73220-52691-C0iNCP10#,SCP100200910-201008

BLACK,TRIM10

main73220-52691-E2iNCP10#,SCP100200910-201008

GREGE,TRIM12

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52650-B0iNCP10#..G200509-200712

DK.GRAY,TRIM10

main73230-52650-E0iNCP10#..G; NCP105,SCP100..X200509-200712

CLOVEBROWN,TRIM1#; CLOVEBROWN,TRIM11

main73230-52650-E1iNCP10#,SCP100; NCP100,SCP100200712-201008

73233COVER, LAP BELT OUTER ANCHOR

main73233-52010-B1×2iNCP10#,SCP100200509-200712

DK.GRAY,TRIM10

main73233-52010-E0×2iNCP10#,SCP100200509-200712

CLOVEBROWN,TRIM11

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52500-B0iNCP10#,SCP100200509-200608

DK.GRAY,TRIM10

main73230-52500-E1iNCP10#,SCP100200509-200608

CLOVE BROWN,TRIM11,4#

main73230-52501-B0iNCP10#..G200609-200610

DK.GRAY,TRIM10

main73230-52501-E1iNCP10#..G; NCP105,SCP100..X200609-200610

CLOVEBROWN,TRIM1#; CLOVEBROWN,TRIM11

main73230-52760-B0iNCP10#..G200610-200712

DK.GRAY,TRIM10

main73230-52760-E0iNCP10#..G; NCP105,SCP100..X200610-200712

CLOVEBROWN,TRIM1#; CLOVEBROWN,TRIM11

main73230-52760-E1iNCP10#,SCP100200712-201008

GREGE,TRIM12

main73230-52630-E0iNCP100,SCP100200511-200712

main73230-52630-E1iNCP100,SCP100200712-201008

9010510523

main90105-10523

9010511058

main90105-11058

9010911059

main90109-11059

9090119040

main90901-19040

9155380612

main91553-80612

14 parts on this diagram · 3 diagrams in section
