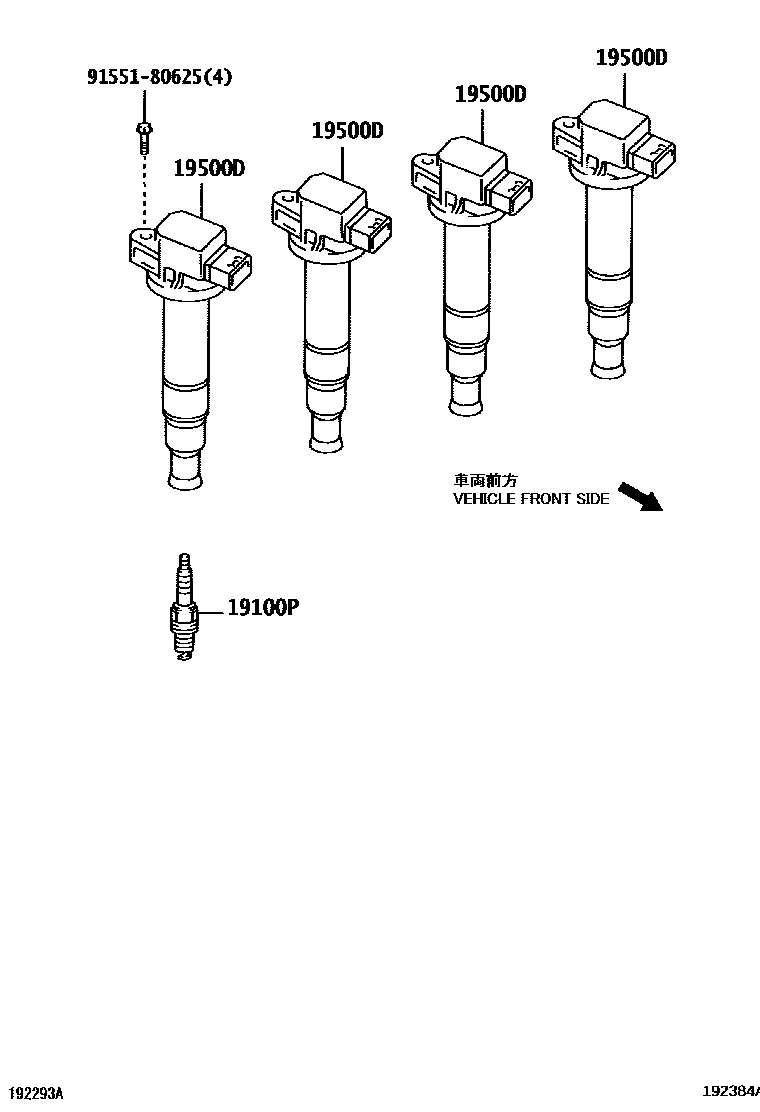

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01164i1NZFE..NCP105200509-200712

main90919-01233i2SZFE..SCP100200509-200712

main90919-01243i1NZFE..NCP100200709-200712

main90919-01247i1NZFE..NCP100200509-200709

19500COIL ASSY, IGNITION

main90919-02240i2SZFE..SCP100200509-201005

main90919-02265i2SZFE..SCP100201005

19500DCOIL, IGNITION, NO.1

main90919-02240i1NZFE..NCP105200509-200712

main90919-02248i1NZFE..NCP100200509-200712

sub90919-02260

9155180625

main91551-80625

4 parts on this diagram · 2 diagrams in section
